GE EVT-Pro 2.0 Operation And Technical Manual page 22

SECTION 15
EVT PRO 2.0
NOTE: When placing the Bracket Assembly onto the valve, make sure to verify that the
columns and the bracket are aligned with the spindle. A misaligned Bracket Assembly
can cause the claws to slip off to one side during testing.
® Operations and Technical Manual (Rev 1.0 – 2016)
EVT PRO 2.0
® - MOUNTING THE BRACKET TO A VALVE

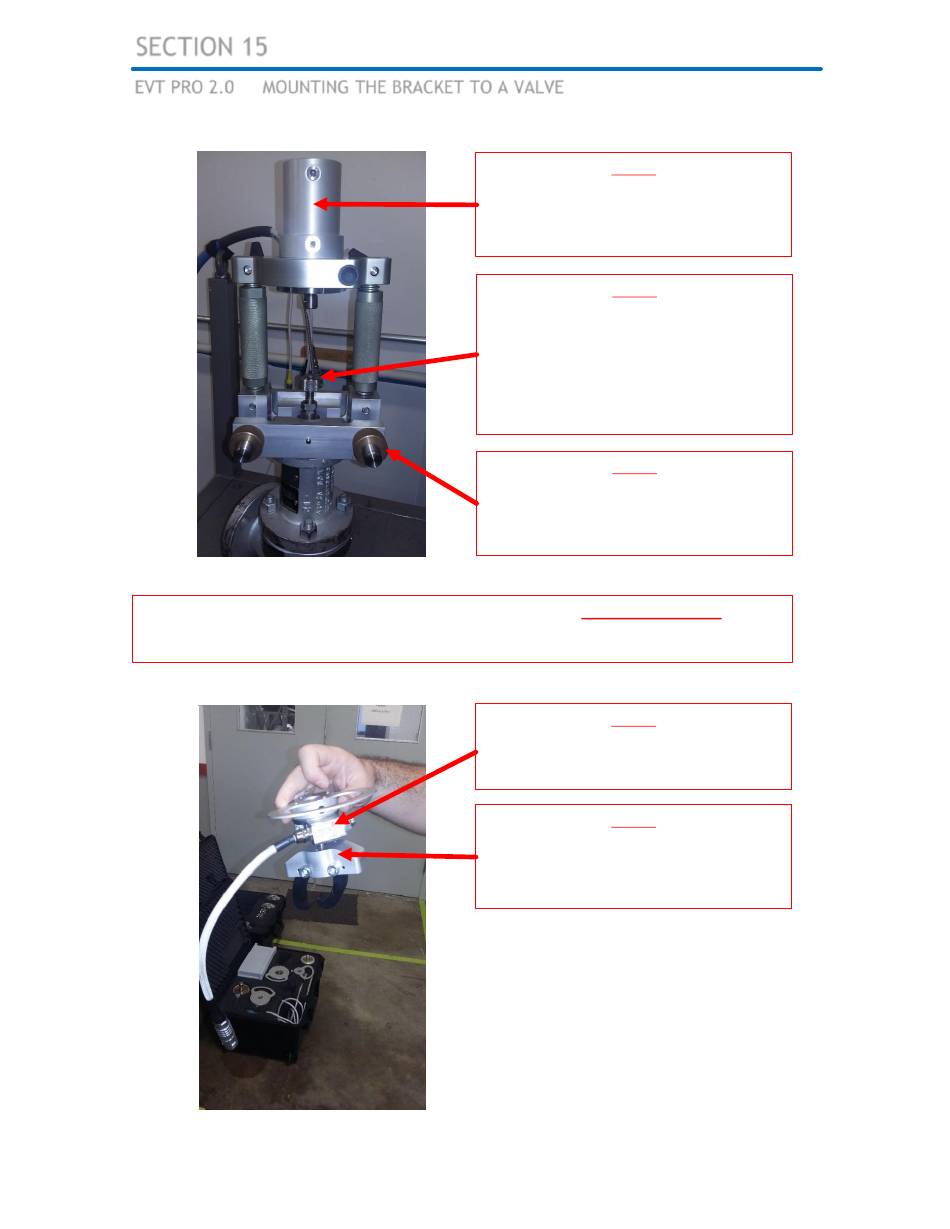

Step 1
Select the software indicated Hydraulic
Lifting Cylinder and install on bracket.
Tighten the locking ring till just snug.
Step 2
Select the correct Spindle Adapter for the
valve and install onto the valve spindle.
NOTE: Use of the Spindle Adapters is
highly recommended to ensure proper
contact area for the claw fingers to
adequately grasp.
Step 3
Turn the brass thumb screws to open the
bracket base and fit it onto the valve.
Tighten the thumbscrews for a secure fit.
Step 4
Select the correct load cell as indicated by
the software.
Step 5
Select the correct Load Cell Claw device
which matches the load cell. Screw the
Claw device onto the load cell as shown.
NOT FOR COPY OR DISTRIBUTION Page 18
