EVT PRO 2.0
® - MOUNTING THE BRACKET TO A VALVE

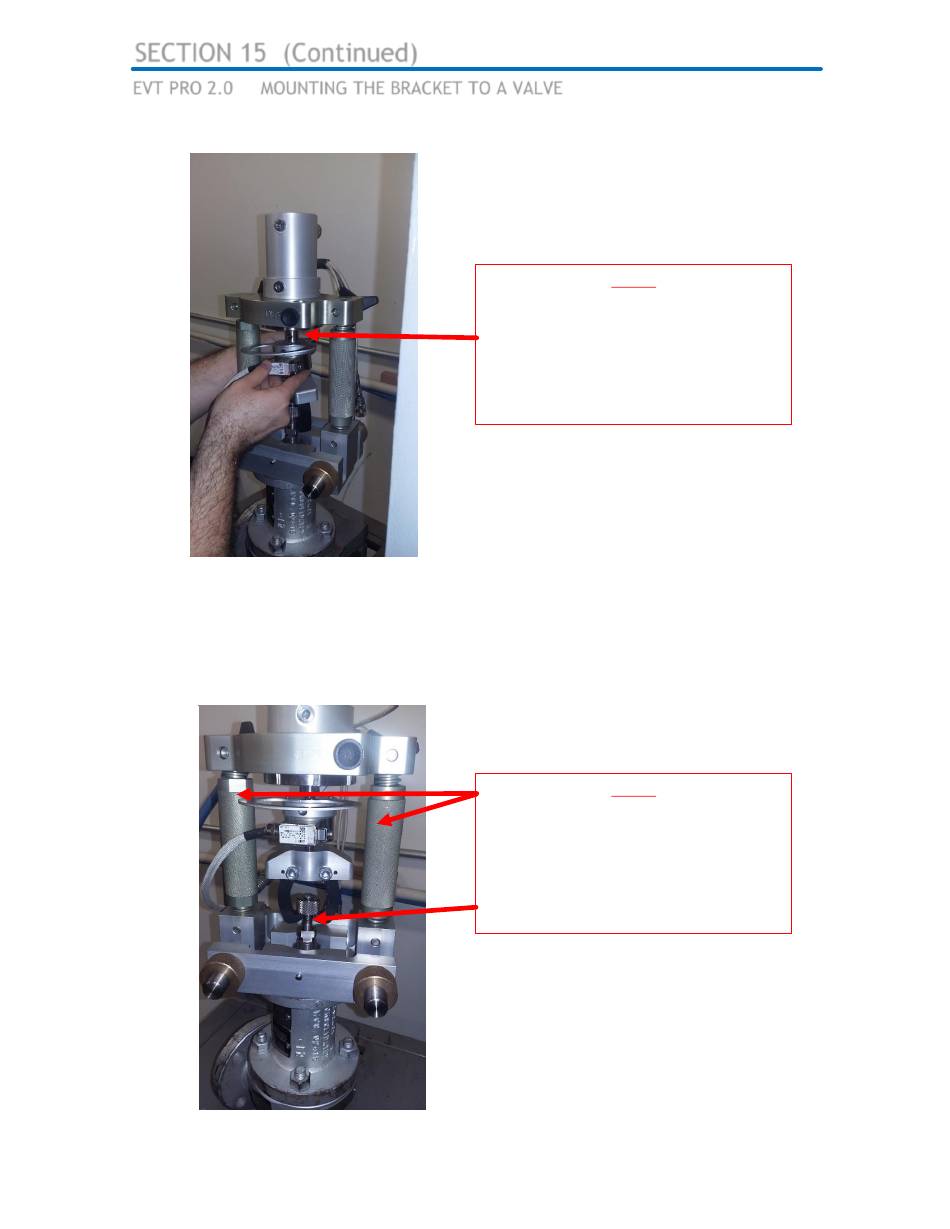

Step 6
Install the Load Cell and Clamp assembly
onto the Hydraulic Lifting Cylinder using
the pin retainer. Insure that the Lifting
Sensor platform if facing the side of the
bracket that has the hole for the Lifting
Sensor.
Step 7
Use the height adjustment turn screws to
lower the claw device so that the claws
reach under the spindle adapter.
using the height adjustment screws raise
the claw assembly to that it is snug but not
applying any loading of the spindle.
