Techly IDATA EXT-676E User Manual page 5

HDMI EXTENDER
BY CAT. 6

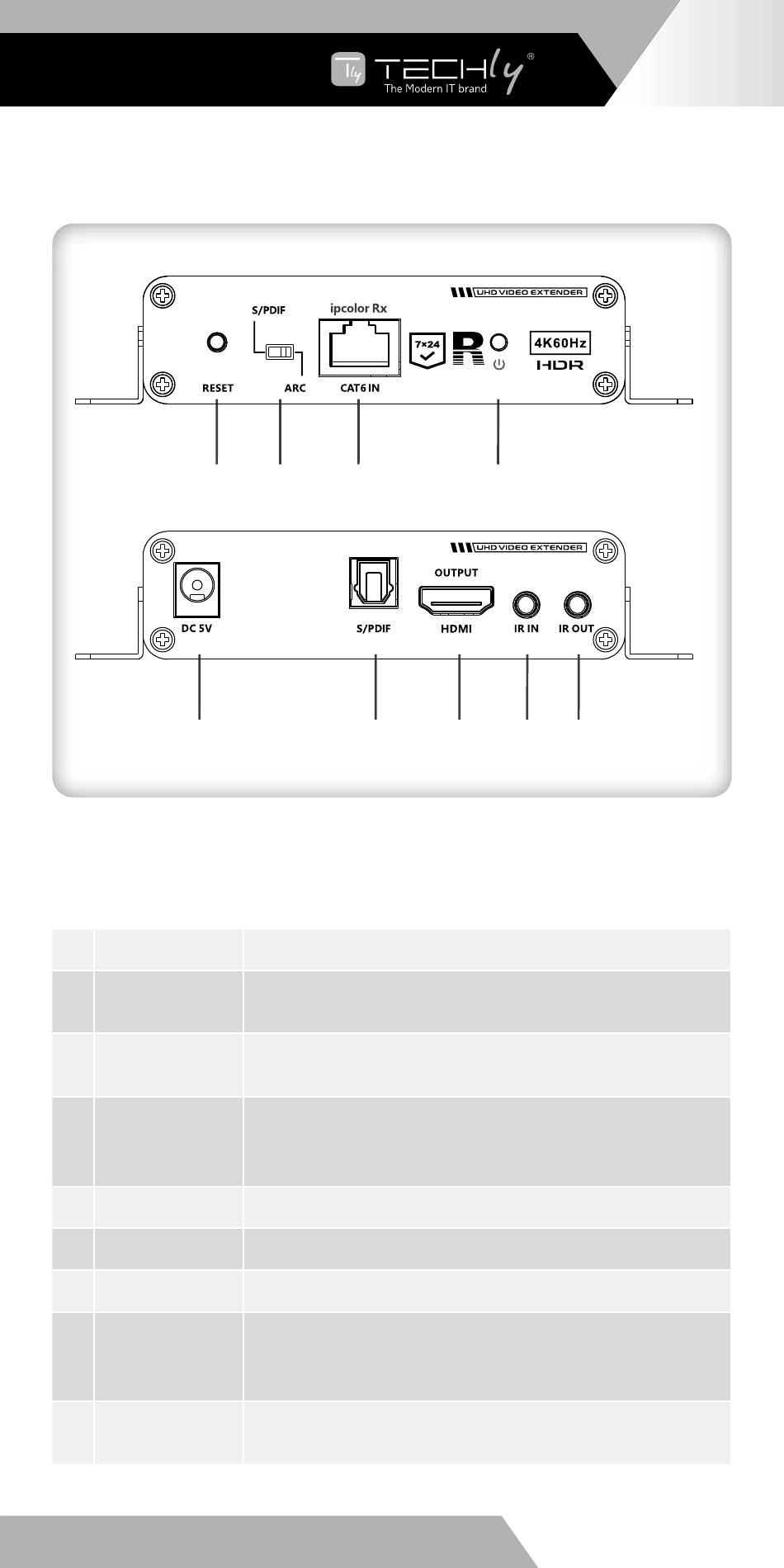

Receiver (RX)
① ② ③
① ② ③
⑤
⑤
1
Reset button
2 Audio switch
RJ45 signal
3
input
Power/Signal
4
indicator
5 DC5V input:
6
S/PDIF out
7
HDMI output
8
IR in
9 IR out
⑥
⑥
Press to restart the device
Choose to decode audio from HDMI or ARC output
from fiber optic interface
Connect with network cable
When there is power and no HDMI signal, the
indicator will flash, when there is HDMI signal, the
indicator will light solid blue
Connect with DC5V/2A power adapter
Output digital audio signal
Connect with HDMI display device
Connect with IR receiver extension cable, please
make sure the remote control used is within the
effective range
Connect with IR blaster extension cable, please get
closer to the source device while using
④
④
⑦ ⑧ ⑨
⑦ ⑧ ⑨
WWW.TECHLY.COM
EN - 5
