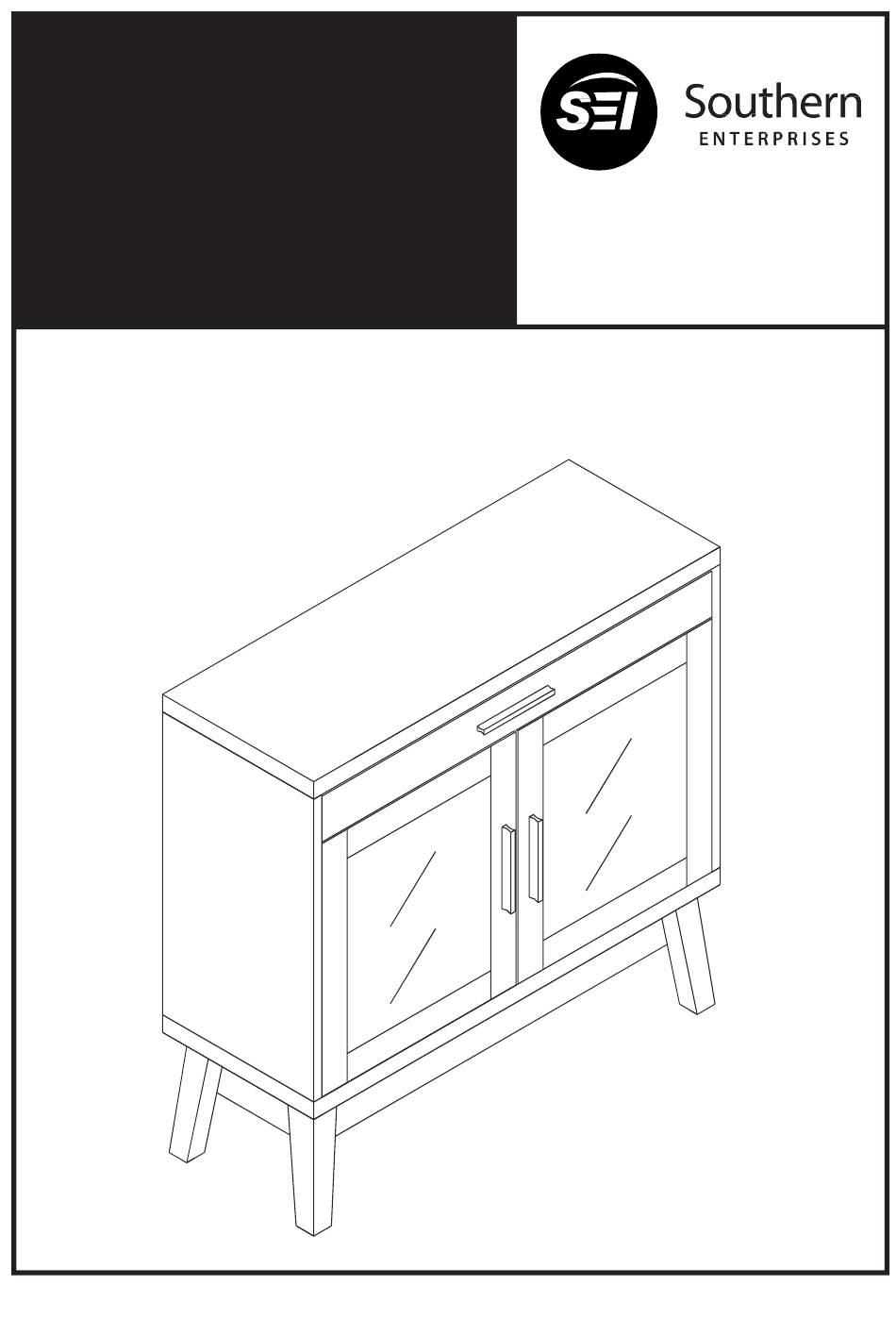

- Page 1 HZ105200TX Mercer Storage Cabinet For assistance with assembly contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
- Page 2 HZ105200TX Mercer Storage Cabinet Assembly Instructions Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below.
-
Page 3: Parts List
HZ105200TX Mercer Storage Cabinet For assistance with assembly contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com PARTS LIST: DESCRIPTION DESCRIPTION Top Panel Bottom Panel Drawer Front Panel Left Side Panel Drawer Left Side Panel Right Side Panel Drawer Right Side Panel... - Page 4 HZ105200TX Mercer Storage Cabinet Assembly Instructions Step 1: Assemble the legs (J) and bottom panel (B) using allen wrench (1), allen wrench screws (2), and hardware (3) (4) as shown in figure 1. Figure 1 Step 1Customer Service 1-800-633-5096 service@seidal.com Southern Enterprises, Inc.
- Page 5 HZ105200TX Mercer Storage Cabinet Assembly Instructions Step 1: Insert the cam bolts (8) into the left and right side panel (C) and (D). Step 2: Assemble the left side panel (C), right side panel (D) and drawer horizont al bar (I )
- Page 6 HZ105200TX Mercer Storage Cabinet Assembly Instructions Step 1: Join the top panel (A) and b o t to m pa ne l (B ) to th e assembly from figure 2 using wood dowels (5) as shown in figure 3.
-
Page 7: Storage Cabinet
HZ105200TX Mercer Storage Cabinet Assembly Instructions STEP 4 Step 1: Tighten the back panel (G) to the assembly using round head screws (7) as shown in figure 4. Figure 4... - Page 8 HZ105200TX Mercer Storage Cabinet Assembly Instructions Step 1: Insert the pins (12) at the desired position and place t h e ad ju s t a ble shelf ( H) above the pins as shown in figure 5. Figure 5...
- Page 9 HZ105200TX Mercer Storage Cabinet Assembly Instructions Step 1: Assemble the door panels (E) and (F) to the assembly as shown in figure 6. Step 2: Tighten the door handles (11) to the door panels (E) and (F) using screws (10) through the pre-drilled holes as shown in figure 6.
- Page 10 HZ105200TX Mercer Storage Cabinet STEP 6 Assembly Instructions Step 1: Insert cam bolts (8) into the panels (L) (M) and (O). Step 2: Insert wood dowels (6) into the panels (P), and cam locks into the panel (O). Assemble as shown in figure 7.
- Page 11 HZ105200TX Mercer Storage Cabinet Assembly Instructions Step 1: Insert the drawer into the assembly as shown in figure Figure 8...
- Page 12 HZ105200TX Mercer Storage Cabinet Assembly Instructions T O A V O I D I T E M T I L T I N G FORWARD. MOUNTING TO THE WALL IS REQUIRED. TO AVOID ITEM TILTING FORWARD. M O U N T I N G T O T H E W A L L I S RECOMMENDED.
-
Page 13: Parts Replacement Form
If damages or missing parts are not reported within 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon- Fri Central time if you have product issues or email us at service@ hollyandmartin.com...
