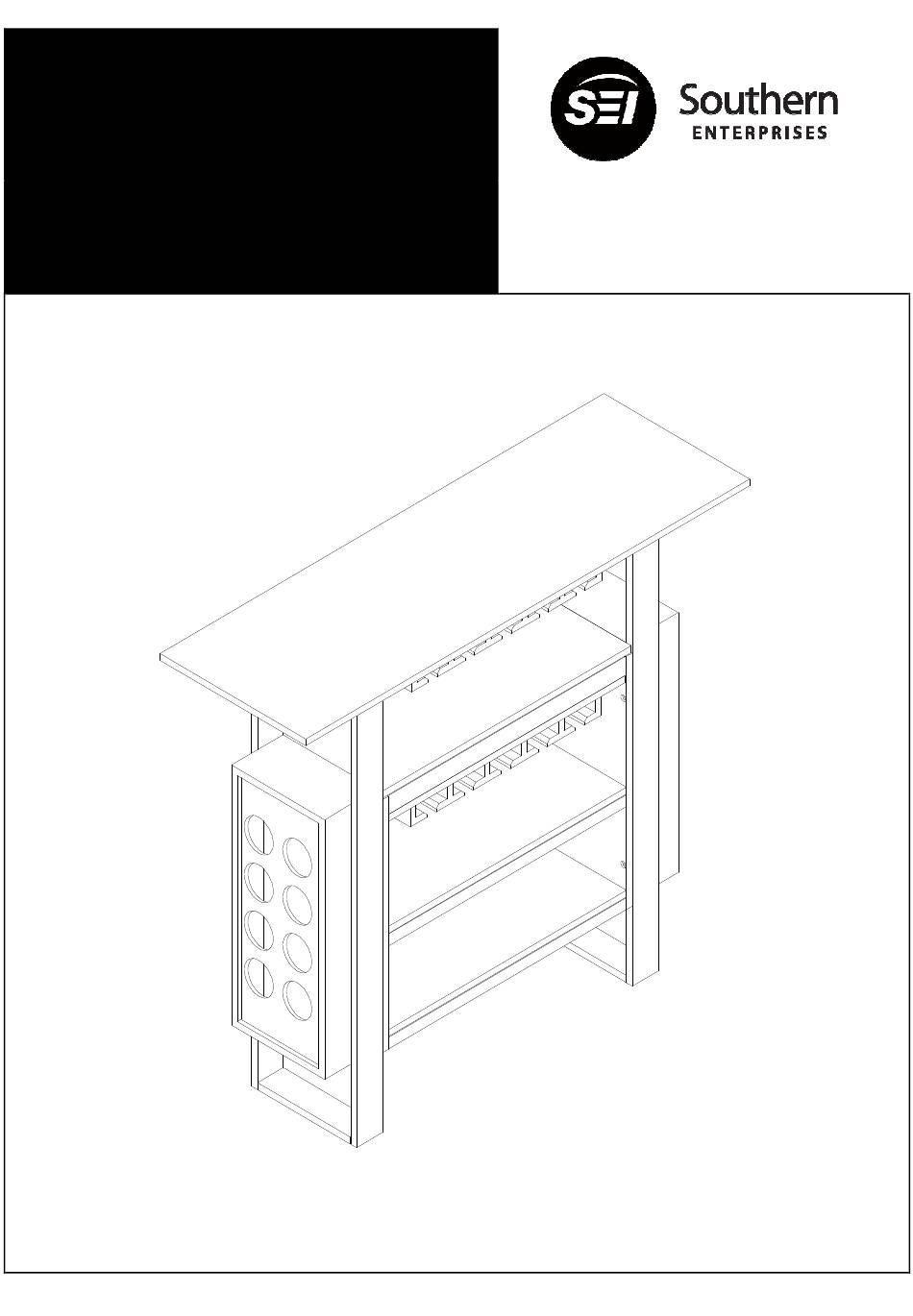

- Page 1 HZ10300TX Britton Console Bar For assistance with assembly, contact: Southern Enterprises, Inc. Assembly Instructions Customer Service: 1-800-633-5096 service@seidal.com www.seidal.com Page | 1...
- Page 2 Britton Console Bar Parts List Please check packaging for all parts and hardware before discarding. Before beginning assembly, separate each type of hardware. Carefully study the diagrams below and check that you have all parts indicated. Call Customer Service if missing hardware. Using the incorrect hardware will cause damage. Quantity Quantity of 20...
- Page 3 Quantity of 24 Covers Quantity Quantity of 1 of 1 Top Panel Upper Shelf Panel Quantity Quantity of 2 of 2 Side Boxes Inner Side Panels Quantity Quantity of 1 of 1 Left Front Leg Right Front Leg Quantity Quantity of 1 of 1 Left Back Leg...
- Page 4 Britton Console Bar Assembly Instructions Insert Wood Dowel (C) into holes on Shelf Panels (11). Attach Inner Side Panels (4) to Shelf Panels (11) with Bolts (E), Flat Washers (I), and Spring Washers (H). Tighten Bolts with Allen Wrench (J). Figure 1 Insert Wood Dowels (C) into holes on top of Inner Side Panels (4).
- Page 5 Secure Upper Shelf Panel (2) to Inner Side Panels (4) using Bolts (F), Flat Washers (I), and Spring Washers (H). Tighten bolts with Allen Wrench (J). Figure 3 Turn assembled unit upside-down. Attach Lower Bar Holder Panel (10) to Upper Shelf Panel (2) with Wood Dowels (C).
- Page 6 Insert Cam Locks (B) into Upper and Lower Across Bars (12/13). Screw Cam Bolts (A) into holes on Left Front Leg (5). Attach Upper Across Bar (12) and Lower Across Bar (13) to Left Front Leg (5) using Wood Dowels (C) and Cam Bolts (A).
- Page 7 Attach Upper Bar Holder (9) to Top Panel (1) with Bolts (E), Flat Washers (I), and Spring Washers (H). Tighten all bolts by Allen Wrench (J). Figure 7 Insert Cam Locks (B) into holes on assembled unit from Figure 6. Screw Cam Bolts (A) into holes on Top Panel (1).
- Page 8 Attach Brackets (P) to back using Screws (M). Tighten with Phillips screwdriver. Mark two desired locations on wall, same distance Brackets attached to back. Drill two 3/16" holes on wall and insert Plastic Anchors (L) into holes on wall (use hammer to help). Attach Brackets (P) to wall using Screws (N).
-
Page 9: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas), Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
