Summary of Contents for Southern Enterprises HZ349300TX

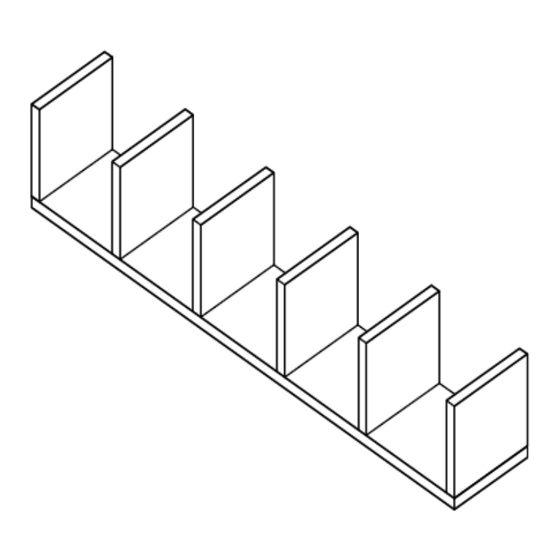

- Page 1 HZ349300TX Shelf- Black HZ349400TX Shelf- White For assistance with assembly contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 Assembly Instructions service@seidal.com www.seidal.com...
- Page 2 Shelf Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures. Using the incorrect hardware will cause damage.
- Page 3 Shelf Assembly Instructions Connect shelves (I) and shelves (H) to back board (G) with screws (B). Tighten screws with phillips screwdriver. Figure 1 Cover screw holes with sticker covers (C) as shown in figure Figure 2...
- Page 4 NOTE: NO DRILLED HOLE OR PLASTIC ANCHOR Find a desired location and mark two REQUIRED WHEN MOUNTING TO WOOD WALL.USE locations for the screws. SCREW ONLY. WE DO NOT SUPPLY HARDWARE FOR One screw (for each unit) must be MOUNTING ON CONCRETE WALLS attached directly into a wall stud.
- Page 5 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
- Page 6 CAUTION Max shelf load capacity is achieved by mounting screw into studs or cement walls. If mounting to sheet rock (cavity wall) it is advisable to mount at least one screw (without anchor) directly to a wall stud or studs. However do not leave either end of mounting bracket unsupported by at least one anchor.
