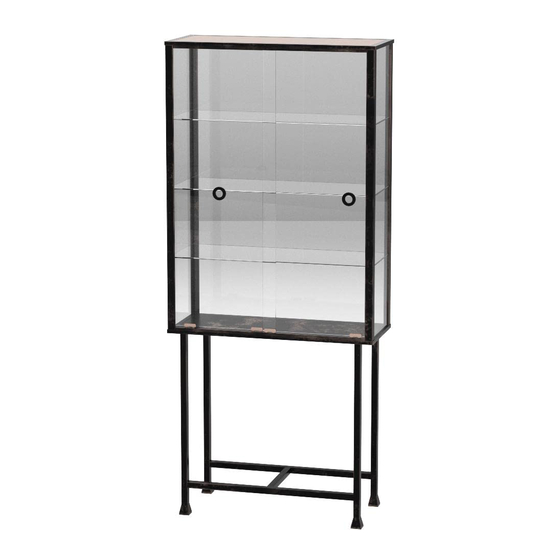

- Page 1 HZ8864A0TX / HZ8864B0TX Metal/Glass Sliding-Door Display Cabinet For assistance with assembly, contact: Southern Enterprises Inc. Customer Service: 1-800-633-5096 service@seidal.com Assembly Instructions www.seidal.com PO: 13588 Each shelf supports up to lb. Page | 1...
- Page 2 Metal/Glass Sliding-Door Display Cabinet Parts List Please review all parts and hardware before disposing of any packaging. Before beginning assembly, separate each type of hardware. Carefully study the diagrams below and check that you have all parts indicated. Call Customer Service if missing hardware.
- Page 3 16PCS 16PCS 16PCS Bolts 1/4”x3/4” Spring Washers Flat Washers 12PCS 4PCS 2PCS L Metal Chips Plastic Straps Glass Pads 2PCS 4PCS 4PCS Screws 4x16mm Bolts 1/4”x1-1/2” Sliding Wheels 2PCS 2PCS 4PCS Pads Plastic Anchors Screws 4x38mm **Pre-attached to glass doors** Wrench Care and Cleaning Instructions: For replacement parts or questions, please...
- Page 4 Metal/Glass Sliding-Door Display Cabinet Assembly Instructions Note: Do not fully tighten bolts until Step 6 is complete. Step 1: Unit assembly should begin with parts turned upside down for Step 1. Attach Legs (1) to Stretcher (2) using Bolts (A), Spring Washers (B), and Flat Washers (C).
- Page 5 Step 4 Insert Glass Back Panel (9) along grooves of Left Rear Support (4) and Right Rear Support (5). Figure 4 Step 5 Insert Glass Side Panels (10) along the grooves of Left Rear Support (4), Right Rear Support (5), Left Front Support (6) and Right Front Support (7).
- Page 6 Step 7 Turn assembled unit upright. Stick Glass Pads (D) to brackets on Left Rear Support (4), Right Rear Support (5), Left Front Support (6) and Right Front Support (7). Place Glass Shelves (11) onto brackets of each Support (4/5/6/7). Figure 7 Step 8 Attach Sliding Wheels (I) to...
- Page 7 Anti-tipping Hardware Screw (K) Tip: At least one screw must be directly mounted into a wall stud. Wall anchor is not needed when mounting into a wall stud. Find ideal location on wall and mark location of each mounting hole. Using a power drill and a 3/16″...
- Page 8 For product issues, please contact Southern Enterprises at 800-633-5096 (toll-free) / 972-869-0111 (Dallas), Mon-Fri 9am – 4pm CST, or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
