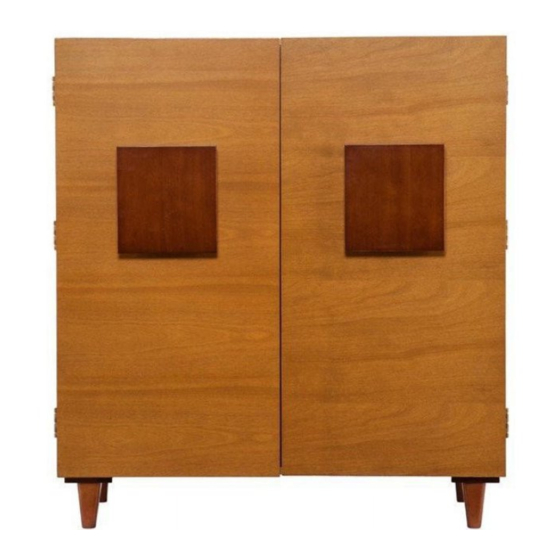

- Page 1 HZ103700TX Boyle Bar Cabinet For assistance with assembly, contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 Assembly Instructions service@seidal.com www.seidal.com Page 1...
-
Page 2: Parts List
Boyle Bar Cabinet Parts list Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures. - Page 3 Quantity Quantity Quantity of 2 of 2 of 2 Wood Handle Front Leg Back Leg Quantity Quantity Quantity of 20 of 20 of 20 Cam Bolt Cam Lock Wood Dowel: Dia5/16”x1-1/4” Quantity Quantity Quantity of 44 of 4 of 26 Small Bolt: Dia5/32”x1”...
- Page 4 Quantity Quantity of 4 of 20 Plastic Anchor Covers Care and Cleaning Instructions: Before using, wipe with a clean, dry cloth. Call customer service at 1-800-633-5096 Periodically apply furniture wax to renew for assistance, questions, or Parts. the finish. Avoid rubbing or scratching the surface with rough or abrasive objects.
- Page 5 Boyle Bar Cabinet Assembly Instructions Attach Magnets (10) to Top Panel (A) with Screw (6). Tighten Screws with Phillips screwdriver. Figure 1 Distinguish which side is the front of Bottom Panel (B). Attach Front Legs (N) towards the front of Bottom Panel (B) and the Back Legs (O) towards the rear with Bolt (8).
- Page 6 Insert Cam Locks (2) into corresponding holes on Left Fixed Shelf Panel (F) and Right Fixed Shelf Panel (G). Screw Cam Bolts (1) into threaded holes and insert Wood Dowels (3) into both sides of Middle Vertical Panel (E). Attach Left Fixed Shelf Panel (F) and Right Fixed Shelf Panel (G) to Middle Vertical Panel (E) by inserting Wood Dowels (3) and Cam...
- Page 7 Insert Cam Lock (2) into the corresponding holes on the assembled unit from Figure 4. Screw Cam Bolts (1) into threaded holes on Top Panel (A) and Bottom Panel (B). Then, insert Wood Dowels (3) into the corresponding holes between the Cam Bolts. Attach the assembled unit from Figure 4 to Top Panel (A) and Bottom Panel (B) by inserting Wood...
- Page 8 Attach Hinges (7) and Metal Plates (11) to Left Door (I) with Screws (4). Attach Wood Handle (M) to Left Door (I) with Bolts (5). Tighten bolts and screws with Phillip screwdriver. Figure 7 Attach Hinges (7) and Metal Plates (11) to Right Door (J) with Screws (4).
- Page 9 Attach Doors (I/J) to the assembled unit with Screws (4). Tighten screws with Phillips screwdriver. Cover all cam lock holes with Covers (17). Figure 9 Insert Wine Rack Panels (H) into the assembled unit as shown. Figure 10 Page 9...
- Page 10 Mark two desired locations on wall. Drill two 3/16" holes on wall for each Bracket (14) matching the distance of the Brackets installed to the back of the unit (see Figure 11). Insert Plastic Anchors (16) into the holes on wall as shown. (When doing this, you will need a hammer help you).
- Page 11 Move the unit close to the wall Brackets (14) and tie both Brackets (14) with Plastic Straps (20) as shown in diagram. Adjust the adjustable levels on the feet to keep the unit stable Anti-tipping hardware must be used for this product to avoid tipping and injury.
-
Page 12: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
