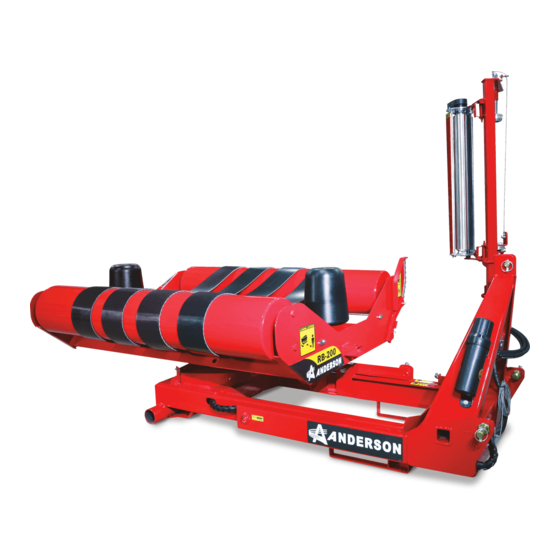

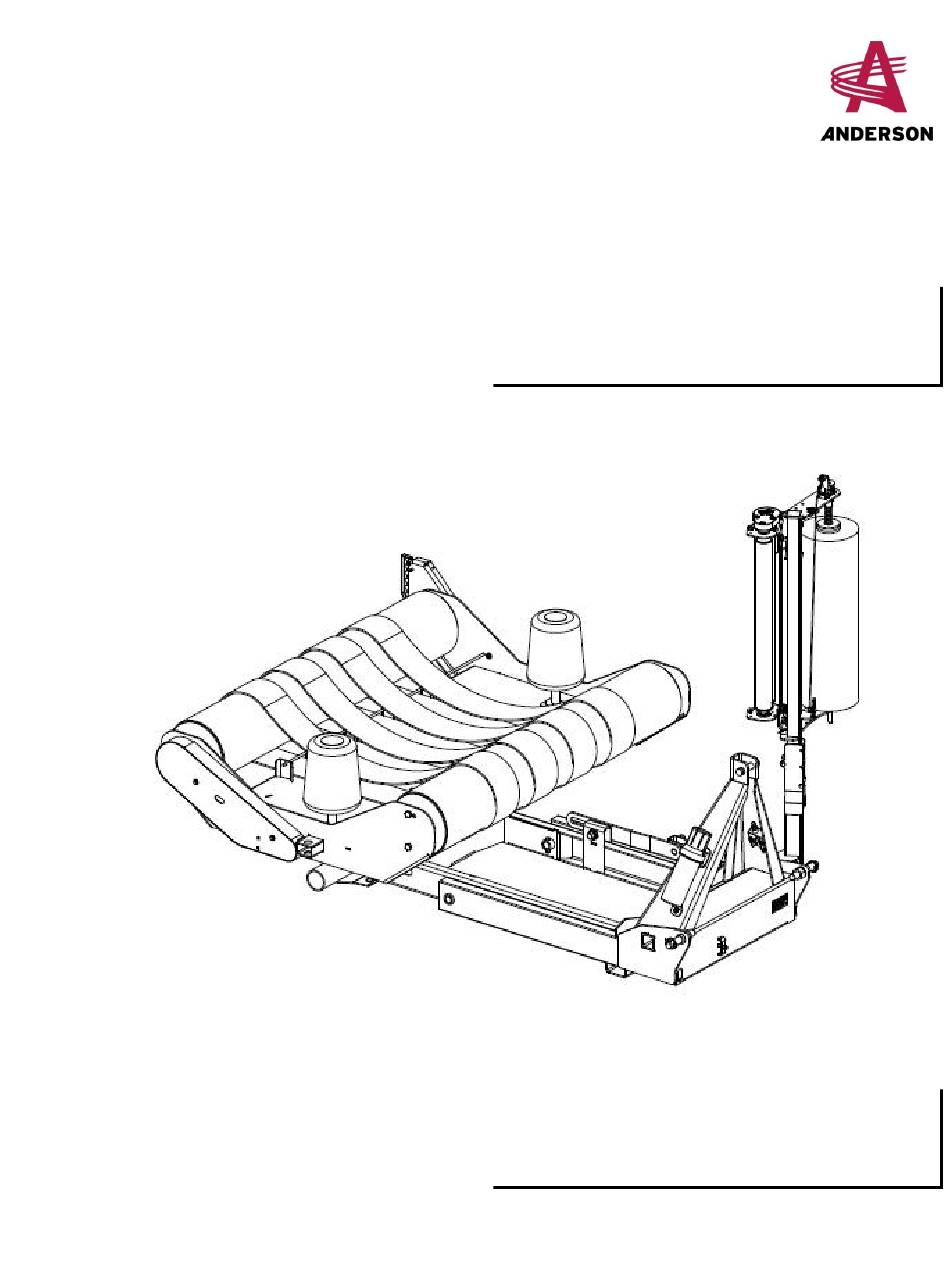

  • Page 1 404601-3 Round Bale Wrapper RB-200 User Guide 2023...

  • Page 3: Table Of Contents

    Programming — Advanced menu Common adjustments Adjusting the support rollers Adjusting the support belts Maintenance Maintenance and adjustment schedule Greasing after every 200 bales Lubrication and greasing after every 50 hours Cleaning Storage Troubleshooting Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 4: How To Reach Us

    Before starting your Anderson equipment, we strongly In no event will Anderson be liable for any incidental recommend that you: or consequential damages or injuries, including but...
  • Page 5 In the event that parts must be shipped from understand Anderson’s warranty policies and ensure that Anderson, freight will be paid by Anderson and will you receive the best service possible for your Anderson be shipped by the most economical means to arrive equipment.

  • Page 6: About This Manual

    This technical manual will teach you how to maintain and safely operate your wrapper. Disclaimer Illustrations The illustrations and information in this manual are accurate as of printing. Anderson Group reserves the right to modify its machines without prior notice. Conventions “Danger!” messages...

  • Page 7: Introduction

    Tilting table Stretcher Bale unloading Film roll support direction Figure 1 — Main Components of the Wrapper The rotating table will turn counterclockwise (Figure 2). Lubrication point (oil) Greasing point (grease) Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 8: Technical Specifications

    You should then use the hay within 3 ity silage months of it being wrapped. The Anderson round bale wrapper is the ideal machine for What's a good way to bale? excellent silage. However, for the best possible bales, you...
  • Page 9 It is best to wrap the bales as quickly as possible after baling, since the bale begins fermenting immediately after baling. A maximum delay of 12 hours is recommended, and much less if it is very hot outdoors. Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 10: Safety

    2 Safety Your Anderson wrapper was designed to minimize risk to the operator. Nevertheless, it must only be used for its intended purpose. Misuse of the machine may cause serious injury to yourself or others. The wrapper has a hydraulic system and moving mechanical parts.
  • Page 11 When driving on the road, comply with all local identification and lighting regulations. Before moving the wrapper, lock the components marked with the label in Figure 5, as shown in Figure 6. Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 12: Safety Labels

    Danger of a bale tipping. Do not exceed the rotation speed of 30 rpm. Danger when transporting the machine. Secure the parts that are marked with this label using a cotter pin. User Guide – Round Bale Wrapper RB-200 Anderson Group...

  • Page 13: Preparation And Startup

    3.3 Hitching the wrapper to the tractor Ensure that you hitch the wrapper to the movable hydraulic arms (three-point hitch) (Figure 7 and Figure 8) and secure the pins with lynch pins. Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 14: Adjusting The Tilting Table

    There must be a gap between compress the support's spring (Figure 13). the two movable parts when Remove the empty roll, if necessary. they are unsecured and the tilting table adjusted properly. User Guide – Round Bale Wrapper RB-200 Anderson Group...
  • Page 15 Figure 15. For this step, you need to have placed a bale that is ready to be wrapped on the machine (see "Wrapping the first bale" on page 17). Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 16: Testing The Stretcher

    Figure 16 — Plastic Cutter Guard Lynch Pin 2. Swing the guard downward. 3. Put the lynch pin back in to hold the guard in the position shown in Figure 17. User Guide – Round Bale Wrapper RB-200 Anderson Group...

  • Page 17: Wrapping Bales

    4 Wrapping bales the rotating table. When the maximum number of rotations per bale This section describes the method that Anderson Group that you configured has almost been reached, the recommends for wrapping bales. The steps are as follows: bale counter screen will blink and three beeps will 1.

  • Page 18: Unloading The Bale

    The bale must be placed on the plastic film (Figure with the centerline of the bale parallel to the tractor 21). axle, and the plastic cutter blade facing the direction of unloading (Figure 22). User Guide – Round Bale Wrapper RB-200 Anderson Group...

  • Page 19: Finishing Wrapping

    When your bales are put in storage, take the time to check that the wrapping on each bale is airtight. If needed, seal any openings with tape so that fermentation will start quickly. Use the tape recommended by your plastic film supplier. Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 20: Operation Of The Ig-C3 Bale Counter

    Turning the screen lighting on or off The internal battery uses 10 times less energy when the screen lighting is off. To turn off the screen lighting, press the ON/OFF key on the right of the counter. User Guide – Round Bale Wrapper RB-200 Anderson Group...

  • Page 21: Programming - Advanced Menu

    The screen will display: modify # bales Day: 000. NOTE: Anderson Group recommends 18 rotations with 76 cm (30 in.) plastic rolls, which results in approximately four full layers of film on the bale. Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 22: Common Adjustments

    1.5 m (5 ft.) wide. To move the support rollers closer together or further apart: 1. Remove the cotter pin at the end of the roller, under the table. User Guide – Round Bale Wrapper RB-200 Anderson Group...

  • Page 23: Adjusting The Support Belts

    In the factory, the support belts are placed toward the centre of the machine, to fit bales that are 1.2 m (4 ft.) long. They can be positioned to fit bales that are up to 1.5 m (5 ft.) long. Anderson Group Round Bale Wrapper RB-200 – User Guide...
  • Page 24 2. Place one belt at a time in the desired position, using the guides (B). 3. When the belts are correctly positioned, put the rods back in and reinsert the bolts. User Guide – Round Bale Wrapper RB-200 Anderson Group...

  • Page 25: Maintenance

    Frequency See section adjustments Every 200 bales Greasing Greasing after every 200 bales Every 50 hours Lubrication Lubrication and greasing Greasing after every 50 hours Figure 33 — Rotating Table Centre Axle Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 26: Lubrication And Greasing After Every 50 Hours

    Figure 36 — Greasing Point As needed, clean the aluminum rollers with denatured alcohol, penetrating oil, or paint thinner, and clean the black roller with dish soap and water. User Guide – Round Bale Wrapper RB-200 Anderson Group...

  • Page 27: Storage

    5. Remove the hydraulic arms from the wrapper and put the safety attachments back on. 6. Store the bale counter in a dry place. Anderson Group Round Bale Wrapper RB-200 – User Guide...

  • Page 28: Troubleshooting

    Install a new roll. The film is not tight enough on the Check whether the film roll is bale. installed correctly. Check whether the stretcher components are in good condition. Repair them, if needed. User Guide – Round Bale Wrapper RB-200 Anderson Group...
