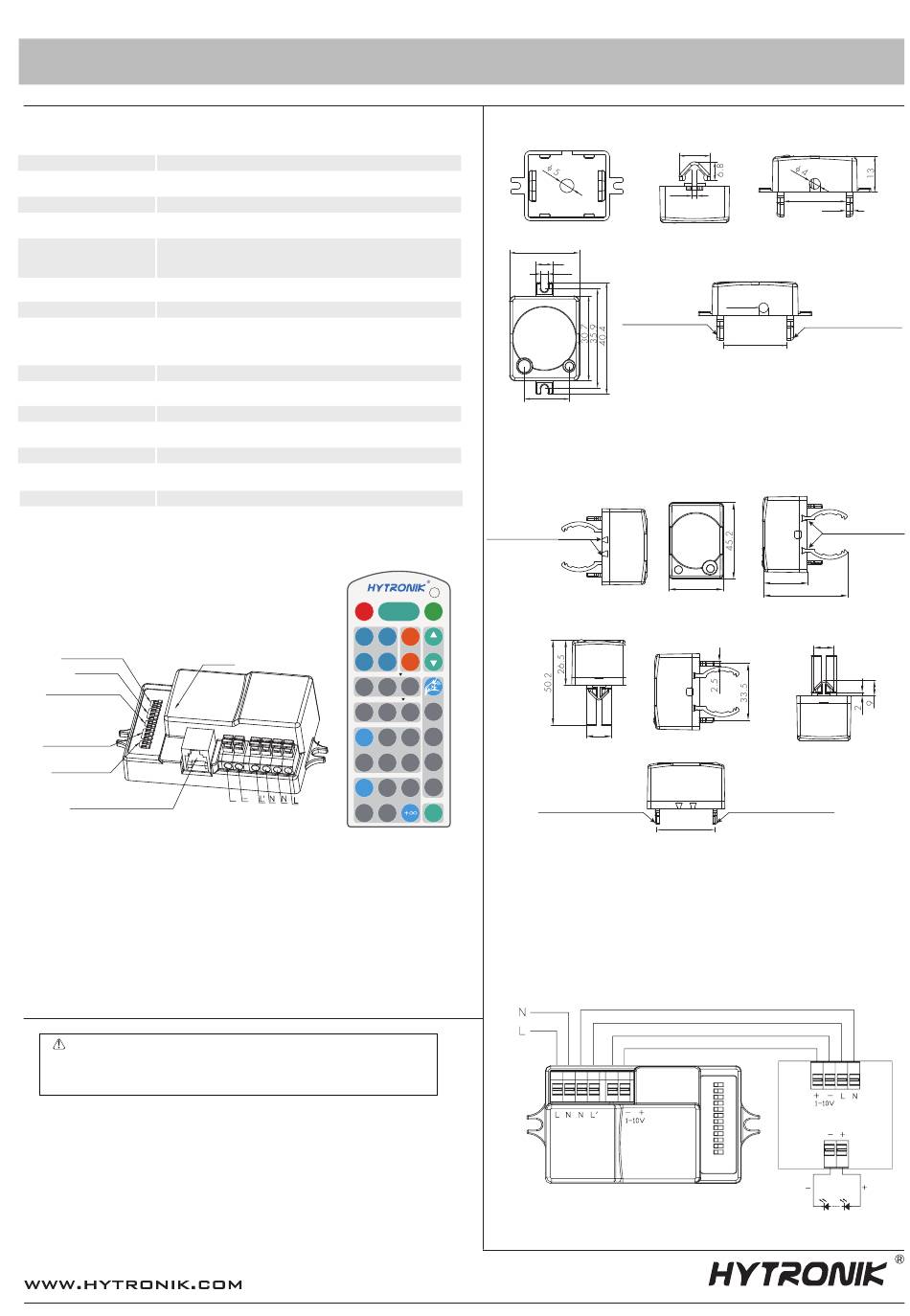

Hytronik HC403VRC-KD Installation And Instruction Manual

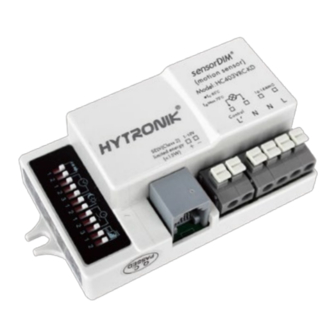

HF MOTION SENSOR DETACHED VERSION HC403VRC-KD
1. Technical Specifications
Product Type Microwave Motion Sensor
Operating Voltage 120-277VAC 50Hz/60Hz
Hf System: 5.8GHz Cw Radar
Rated Load: 400w / 3.6a / 120v
(capacitive load) 800w / 3.6a / 230v
1000w / 3.6a / 277v
Detection Angle: 30°~150°
Power Consumption: <1w
Detection Range (dxh): Max. 12 X 6m(sam5)
Max. 12 X 6m(sam6)
Time Setting: 5s, 30s~30min.
Daylight Sensor: 2~50lux; Disable
Stand-by Period: 0s, 10s ~ 1h,
Stand-by dimming level 10% ~ 50%
Mounting: Indoors,ceiling & walling mounted
Working Temp.: -20
Adjustable
detection area
Hold-time
Daylight threshold
Stand-by period
Stand-by
dimming level
Sensor antenna interface
HC403VRC-KD
The sensor is an active motion detector; it emits a high-frequency electro-magnetic wave at 5.8GHz and receives
its echo.The sensor detects the change in echo from movement in its detection zone. A microprocessor then
triggers the switch light ON command. Detection is possible through doors, panes of glass and thin walls.
Note: the high-frequency output of this sensor is <0.2mW; approximately just 0.2‰ of the transmission power of
a mobile telephone.
Important
Please read these instructions carefully prior to installation and retain this leaflet in a known
and safe place for future reference.
Installation and Instruction Manual
+∞
o o
C ~ +60 C
ON/
OFF
SC1
Scene mode
Buzzer
SC3
100%
Stand-by dimming level
10%
Test
2s
5min
0s
+
1-10V
10min
SAM5
25.2
16.2
SAM6
option 1
Slots for T5 tube
Auto Mode option 2
Reset
SC2 Power
+
100%
Dim
-
Power
SC4
80%
Detection range
50% 10%
Daylight Sensor
20% 30% 2Lux
30s 1min 5min
10Lux
Hold-time
10min 30min 50Lux
Lux
10s 1min
Disable
Stand-by period
Drill hole 9mm x 3mm
30min M/A
HRC-05
2. Section Installation And Wiring
2.1 Ensure that the electricity supply is switched off before installing or
servicing this product.
2.2 Wiring diagram
11.2
1.8
6
2.5
φ4
Drill hole 9mm x 3mm
Drill hole for cable entry is 10mm x 10mm in
square shape or φ12mm in round shape
32.2
15
33.5
Drill hole for cable entry is 10mm x 10mm in
square shape or φ12mm in round shape
HC403VRC-KD-20170329-A1
22.5
2.5
Drill hole 9mm x 3mm
22.5
Slots for T8 tube
26.5
50.2
12
Drill hole 9mm x 3mm
LED Driver
LED
