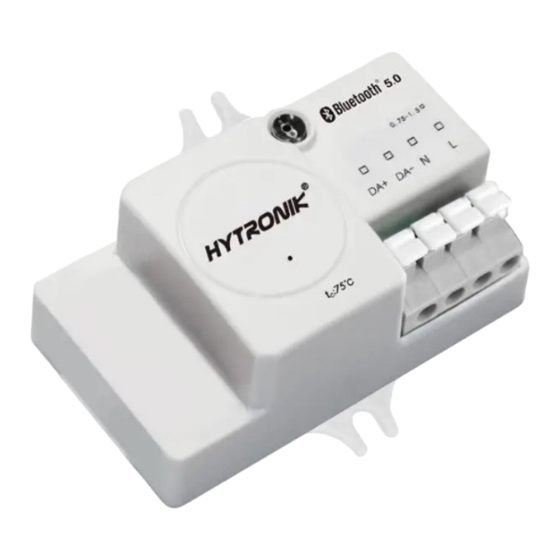

Hytronik HCD405/BT Installation And Instruction Manual

Installation and Instruction Manual
Microwave Motion Sensor with
DALI Output
1. Technical Specifications
Operation frequency
Transmission power
Range (Typical indoor)
Protocol
Operating voltage
Stand-by power
Load ratings
Warming-up
Sensor principle
Detection range (Max.)*
Detection angle
Operation temperature
Case temperature(MAX.)
IP rating
EMC standard (EMC)
Safety standard (LVD)
RED
Certification

2. Download the App

Free App for set-up and commissioning
iOS
Android
Smartphone app for both iOS & Android platform
Koolmesh Pro app for iPad
Web app/platform: www.iot.koolmesh.com
2.4 GHz - 2.483 GHz
4 dBm
10~30m
5.0 SIG Mesh
220~240VAC 50/60Hz
<1W
30mA (max.15 devices)
20s
High Frequency (microwave)
Max installation height: 6m
Max detection range：10m (diameter)
30°~150°
Ta:-20 C~+55 C
O O
Tc:+75°
IP20
EN55015, EN61000-3-2/-3-3, EN61547
EN61347-1/-2-11
EN300328, EN301489-1/-17,
EN300440,EN301489-3
CE ,RED, RCM, UKCA
5.0 SIG mesh
for iOS for Android
for iPad
Web
for Web
5.0 SIG Mesh

3. Installation

Mechanical Structure & Dimensions
Antenna module
Bluetooth module
Bluetooth module
HCD405/BT
Photocell Advance
TM
Daylight sensor
DA+
N
DA–
65
71.7
80.5
Photocell Advance
TM
Daylight sensor
Antenna module
DA+ DA–
Installation hole
4.2
65
Installation
L
hole
N L
HCD405/BT-20230203-A0
