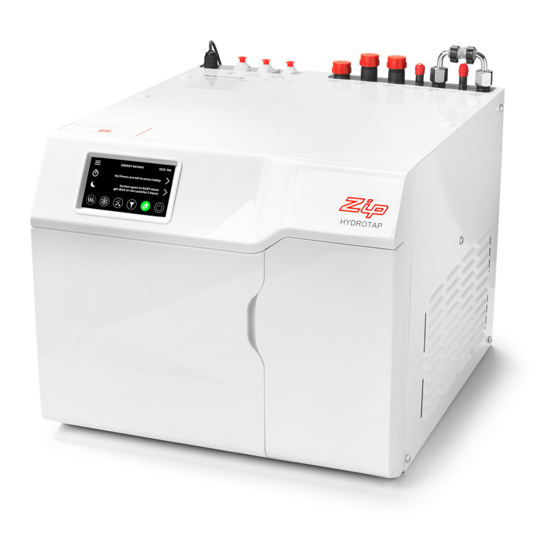

- Page 1 Start Installation Guide HydroTap G5 Command Centre Boiling/Chilled models AFFIX PRODUCT LABEL HERE Australia Visit our website to download the manuals Quick Start Installation Guide 807118 v1.00 01.21 G5 BC Quick Start Guide...
-
Page 2: Table Of Contents
Table of contents SECTION 1: Using the instructions ..............3 SECTION 2: IMPORTANT SAFETY INSTRUCTIONS ..........4 SECTION 3: WARNINGS AND REGULATORY INSTRUCTIONS ......6 SECTION 4: Technical data ................8 SECTION 5: Supplied parts checklist ..............10 SECTION 6: Set up the ventilation ..............11 SECTION 7: Connect the water supply ............ -
Page 3: Section 1: Using The Instructions
SECTION 1: Using these instructions Before you start This document is a Quick Start Installation Guide. For further details on installing and operating your HydroTap download & read the Command Centre installation and user instructions , which can be found online at: (Australia) www.zipwater.com (UK) -
Page 4: Section 2: Important Safety Instructions
The Zip HydroTap Command Centre range uses either HIGHLY FLAMMABLE R290, R600a or R134A refrigerant under pressure. Check the rating plate or contact Zip before commencing work. Maintenance of the refrigeration unit must be carried out by an accredited service provider or qualified refrigeration technician. - Page 5 Do not lift the Command Centre by the front cover or any of its connections. Airflow The Zip HydroTap operates within the ambient temperature range 5ºC - 35ºC. Proper air circulation must be provided. The system will operate satisfactorily only if the recommended air gaps are provided. The vent kit supplied must be fitted.
-
Page 6: Section 3: Warnings And Regulatory Instructions
• Connect only to a potable (wholesome, cat1) mains water supply. • Never locate the system near, or clean with water jets. • Do not expose the Zip HydroTap to the elements of nature. The booster complies with protection class IP 20. - Page 7 When positioning the appliance, ensure the power supply cord is not trapped or damaged. If the power supply cord is damaged it must be replaced by a Zip service provider or a qualified electrician. • Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
-
Page 8: Section 4: Technical Data
SECTION 4: Technical data Power rating Dimensions Model Weight (kg) W x D x H (mm) BC100 2.1 + 2.2* 450 (500) x 470 x 333 BC100 H BC60 450 (500) x 470 x 333 BC60 H BC40 1.97 450 (500) x 470 x 333 BC40 H BC30... - Page 9 SECTION 4: Technical data Water supply pressure requirements Min - Max pressure, kPA (bar) Component Australia HydroTap 170 (1.7) - 700 (7.0) 170 (1.7) - 500 (5.0) Vented Mixer Tap 300 (3.0) - 700 (7.0) 200 (2.0) - 500 (5.0) Booster 200 (2.0) - 700 (7.0) 200 (2.0) - 500 (5.0)
-
Page 10: Section 5: Supplied Parts Checklist
Optional Optional Font Font kit Optional Optional Note: Mains water isolation valve is not supplied with the kit. Contact Zip for the full range of consumables and accessories. Quick Start Installation Guide 807118 v1.00 01.21 G5 BC Quick Start Guide... -
Page 11: Section 6: Set Up The Ventilation
SECTION 6: Set up the ventilation Use of tools can be hazardous. Assess the risks before you start. Use instructions supplied with individual kit parts. A clearance envelope around all Command Centres must be provided to allow ventilation for the safe and effective use of the HydroTap system. - Page 12 SECTION 6: Set up the ventilation BC100 - BC40 models • Cold air is drawn in through the inlet vent and gap provided by the door buffers. • Inlet vent is mounted over cupboard side, door or floor cut-out (see below).
- Page 13 Air inlet Inlet vent All models If cupboard temperature exceeds 35°C, additional ventilation is required. Contact your Zip service provider for options (including additional vents and fan kit). Quick Start Installation Guide 807118 v1.00 01.21 G5 BC Quick Start Guide...
-
Page 14: Section 7: Connect The Water Supply
SECTION 7: Connect the water supply Valves and fittings must be sealed with PTFE tape if compression seals are not included. Note Mixer tap installations also use a ‘Tee piece’ as part of the water supply plumbing connections, see the Tap installation instructions supplied with the Mixer Tap to connect the water supply if using the mixer tap option. -
Page 15: Section 8: Set The Bypass & Install The Scale Filter
SECTION 8: Set the bypass & install the limescale filter Available as optional accessory - UK only. For filter head and scale filter installation use the guide supplied with the filter head and filter respectively. Water Water Bypass in Bypass out see pages 19,20 see pages 19,20 Insert... -
Page 16: Section 9: Fit The Booster
SECTION 9: Fit the Booster • Supplied with selected models, or available as an optional accessory. Booster 10⁰ 15⁰ Note Take care not to break the clips when removing or installing the Booster. Quick Start Installation Guide 807118 v1.00 01.21 G5 BC Quick Start Guide... -
Page 17: Section 10: Connect The Booster
SECTION 10: Connect the Booster Booster Do not connect to electrical power until commissioning. Do not over tighten hose connections. Braided hoses supplied cannot be lengthened. Cold water into Booster, Hot water out of Booster, connect to Command Centre connect to Command Centre BYPASS OUT BYPASS IN see pages 19,20... -
Page 18: Section 11: Connect The Command Centre
SECTION 11: Connect the Command Centre Generic installation instructions For HydroTap, mixer tap and any optional accessories, use instructions supplied with individual kit components. Mains power cable Braided hose HydroTap Command Connections key Do not connect to the mains Centre socket until commissioning Installation diagrams are for illustrative purposes only. - Page 19 SECTION 11: Connect the Command Centre BC40, BC60, BC100 models Booster (selected models) and limescale filter (optional) BYPASS VENT BYPASS Zip Vented Mixer Tap Mains connections Fit foam insulation Water (if supplied) (supplied) to the BLUE pipe BLUE CLEAR BC comm...
- Page 20 SECTION 11: Connect the Command Centre BC20, BC30, BC Home models Booster (selected models) and BC comm limescale filter (optional) Zip Vented Mixer Tap connections CHILLED MAINS MIXER MIXER BOILING BYPASS VENT BYPASS Mains BYPASS OUTLET Fit foam insulation (if supplied)
-
Page 21: Section 12: Commissioning
SECTION 12: Commissioning User Guide Unpack, moisten Boiling calibration o-rings & fit filter Filter flush Boost enable Connect electricity if Booster fitted Power off Flush 10 Litres through Monitor display screen Pull levers forward Power on TANK FLUSH 12:12 PM Follow the prompts to flush fresh water through the tank/s 3 times as shown by the cycle counter/s. - Page 22 Notes Quick Start Installation Guide 807118 v1.00 01.21 G5 BC Quick Start Guide...
- Page 23 Notes Quick Start Installation Guide 807118 v1.00 01.21 G5 BC Quick Start Guide...
-
Page 24: Contact Details
ABN 46 000 578 727 67 - 77 Allingham Street, Condell Park NSW 2200 Postal: Locked Bag 80, Bankstown 1885 Australia Tel (+612) 9796 3100 Free call 1800 947 827 (1800 ZIP TAP) www.zipwater.com WMKA00099 AU02691 AS 3498 Zip Water UK Trafalgar House, Rash’s Green,...
