WINDING CORD INSTRUCTIONS

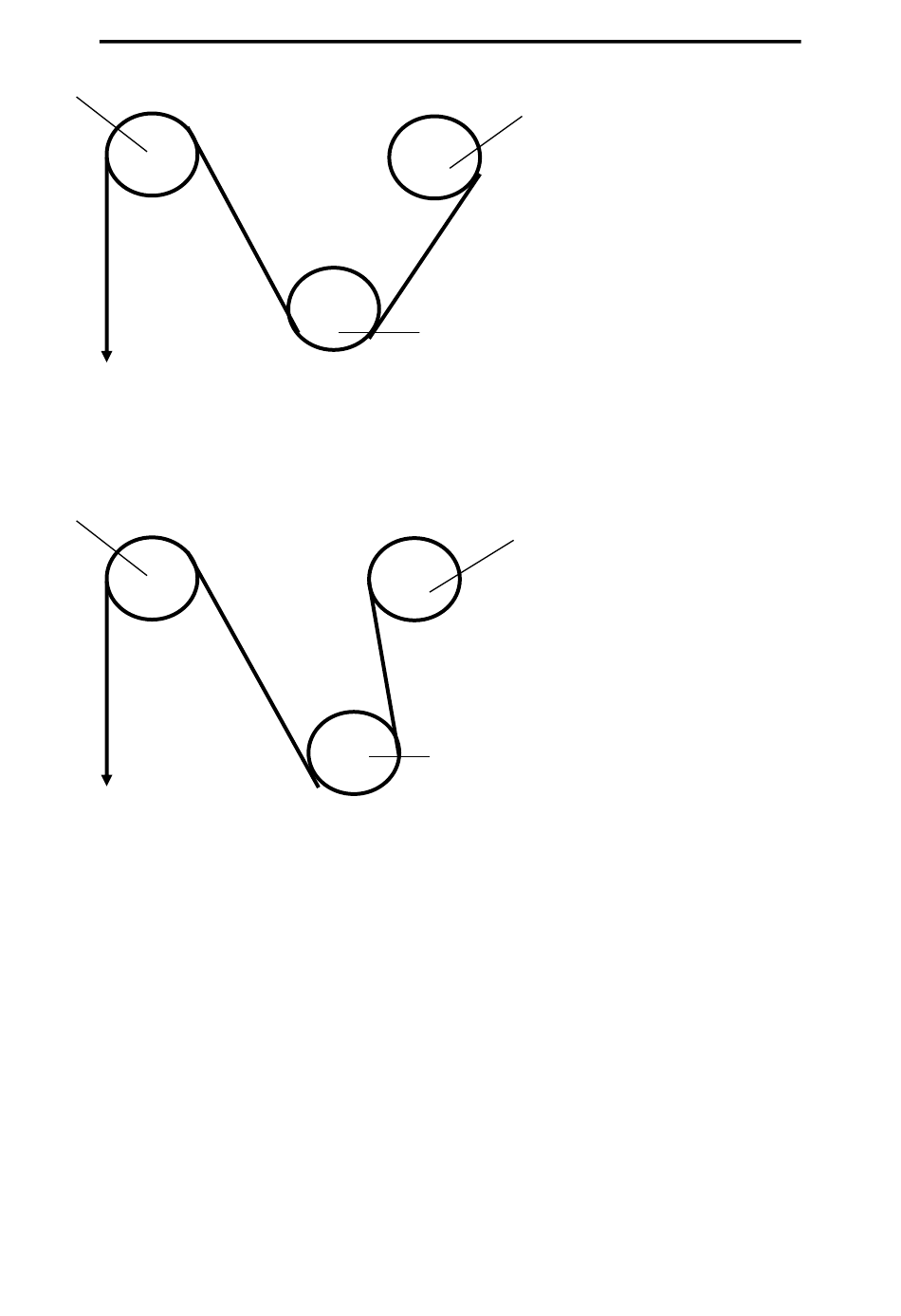

● Conductive-Cord Wheel (Winding Cord & Assembly II No.9)
Connected to Claws
【Correct winding method】
● Conductive-Cord Wheel (Winding Cord & Assembly II No.9)
Connected to claws
【Improper winding method】
⊙ When displays show『d』blinking at power on and after displays run a testing, this means the cord
is incorrectly wound. Turn power off and adjust COIN2 to N.C. then power on again. This time the
displays will show『a0』. Hold joystick【forward】the motor will lower down claws and the displays will
show『a4』. Adjust COIN2 back to N.O., the claws is now properly wound and the machine is back to
correct and normal operation.
Note: The program will automatically adjust to operate under normal condition although the claws is
improperly wound up as above drawing, but it will reduce the life span of the cord.
● Winding-Cord Wheel
(Winding Cord & Assembly II No.6)
●Conductive-Cord Wheel
(Winding Cord & Assembly II No.7)
● Winding-Cord Wheel
(Winding Cord & Assembly II No.6)
● Conductive-Cord Wheel
(Winding Cord & Assembly II No.7)
