Software Configuration

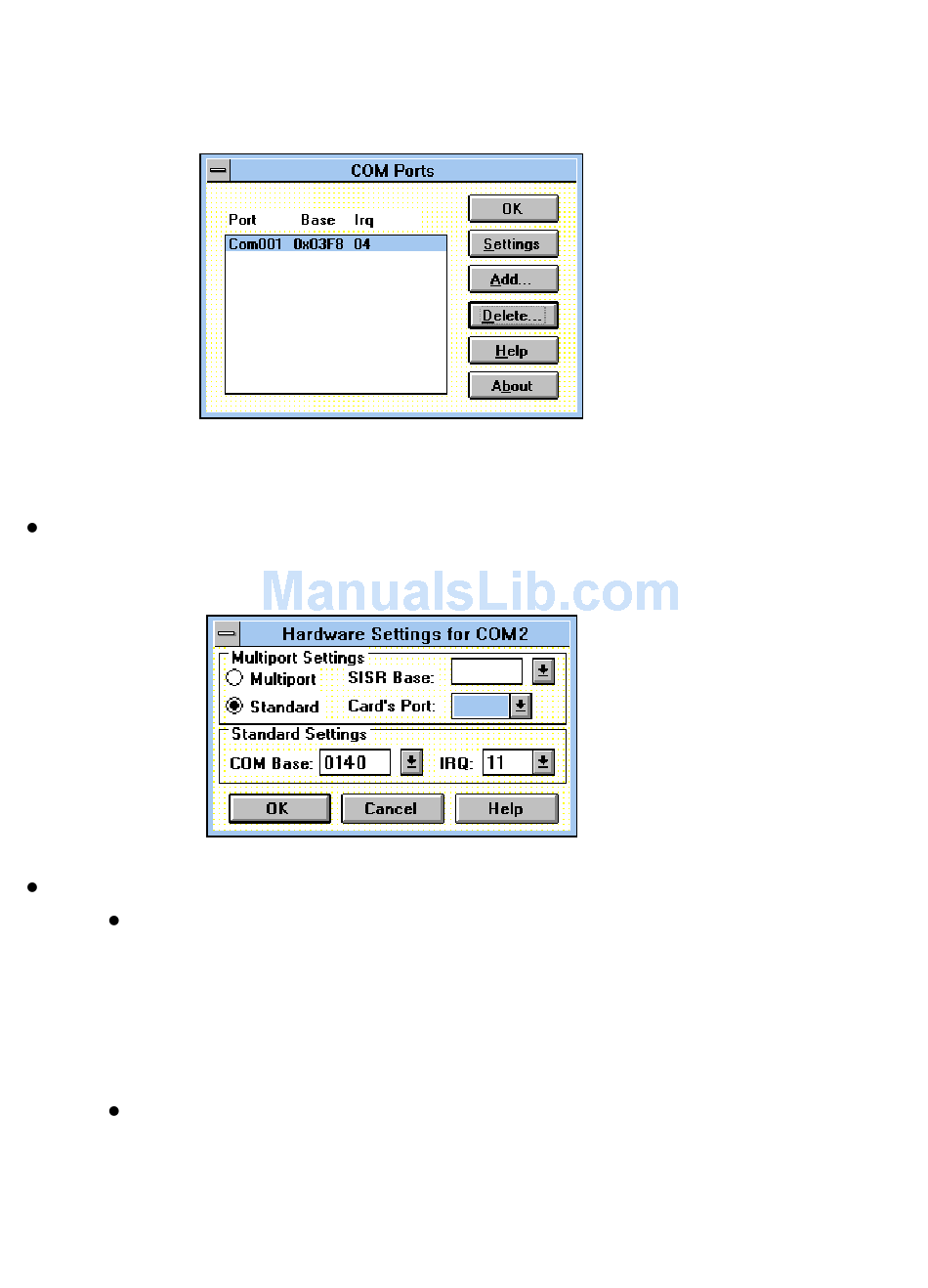

The following dialogue will be displayed:
To add a COM port:
Click on the add button and a Window similar to the following
will be displayed:
In Standard Settings:
In the COM Base field, enter the value 0140.
Note: COM ports are defined with an i/o address range,
which in this case, begins at 0140 and all subsequent
ports have an i/o address that is 8 higher than the
previous. i.e. if COM2 has an address of 0140h, then
COM3 has an address of 0148h.
In the IRQ field, enter the value 11.
