Software Configuration

Configuring Ports.

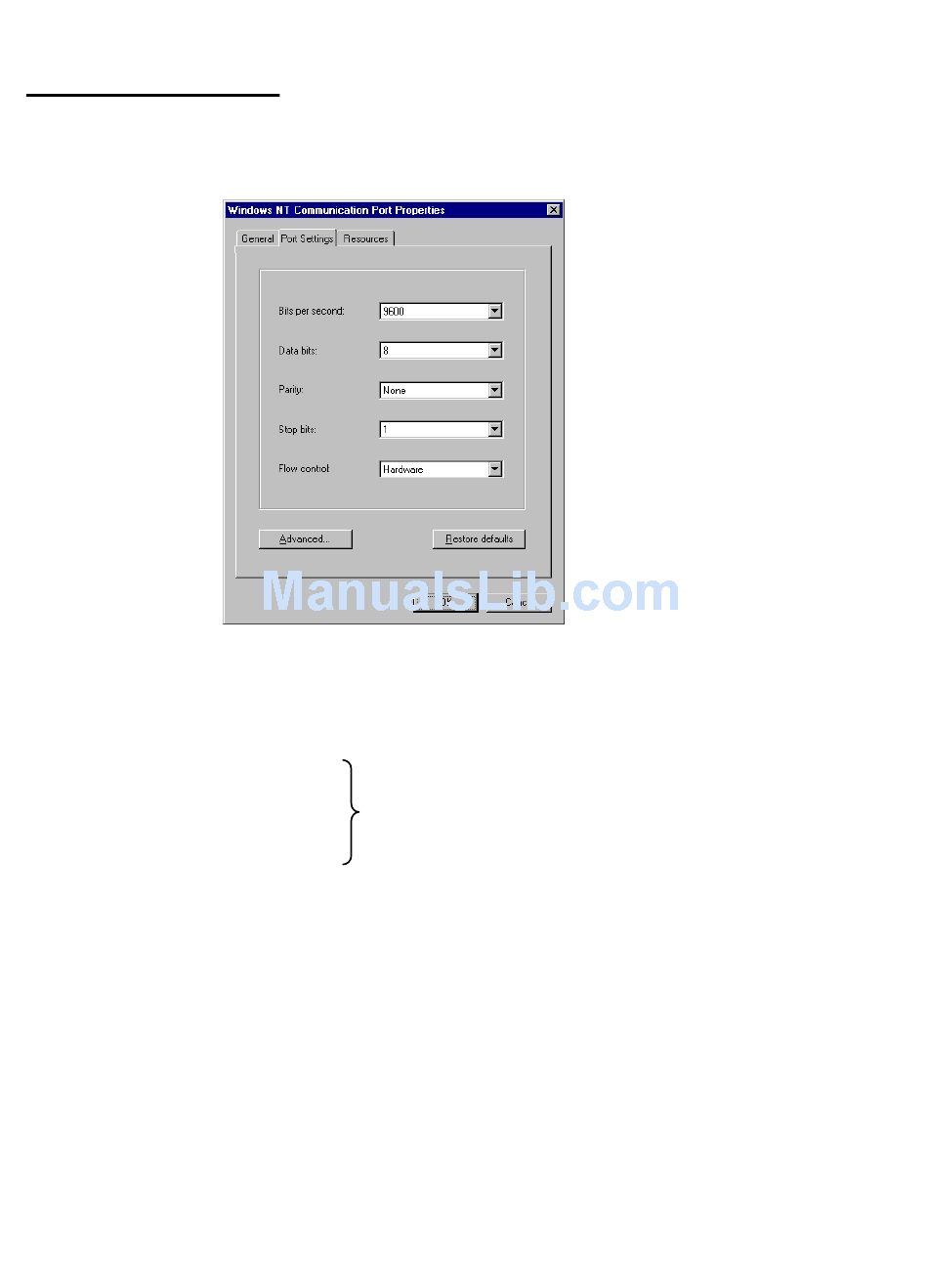

To view the settings of a port, select it and click on
settings, and then click on the resources tab:
Settings available in this window are:
1. Baud Rate - determines the baud rate at which the
selected port operates. Maximum rate is 115200.
2. Data Bits.
3. Parity.
4. Stop Bits.
5. Flow Control.
6. Advanced - see the section below, titled "Advanced
Port Settings."
7. Restore Defaults - when clicked, resets the selected
COM port to the following values:
Baud Rate:
Data Bits:
Parity:
Stop Bits:
Flow Control:
Chapter 3 Page 22
Change to suit remote device.
9600
8
None
1
Hardware
PCI 3 Port RS232
