PCI 3 Port RS232

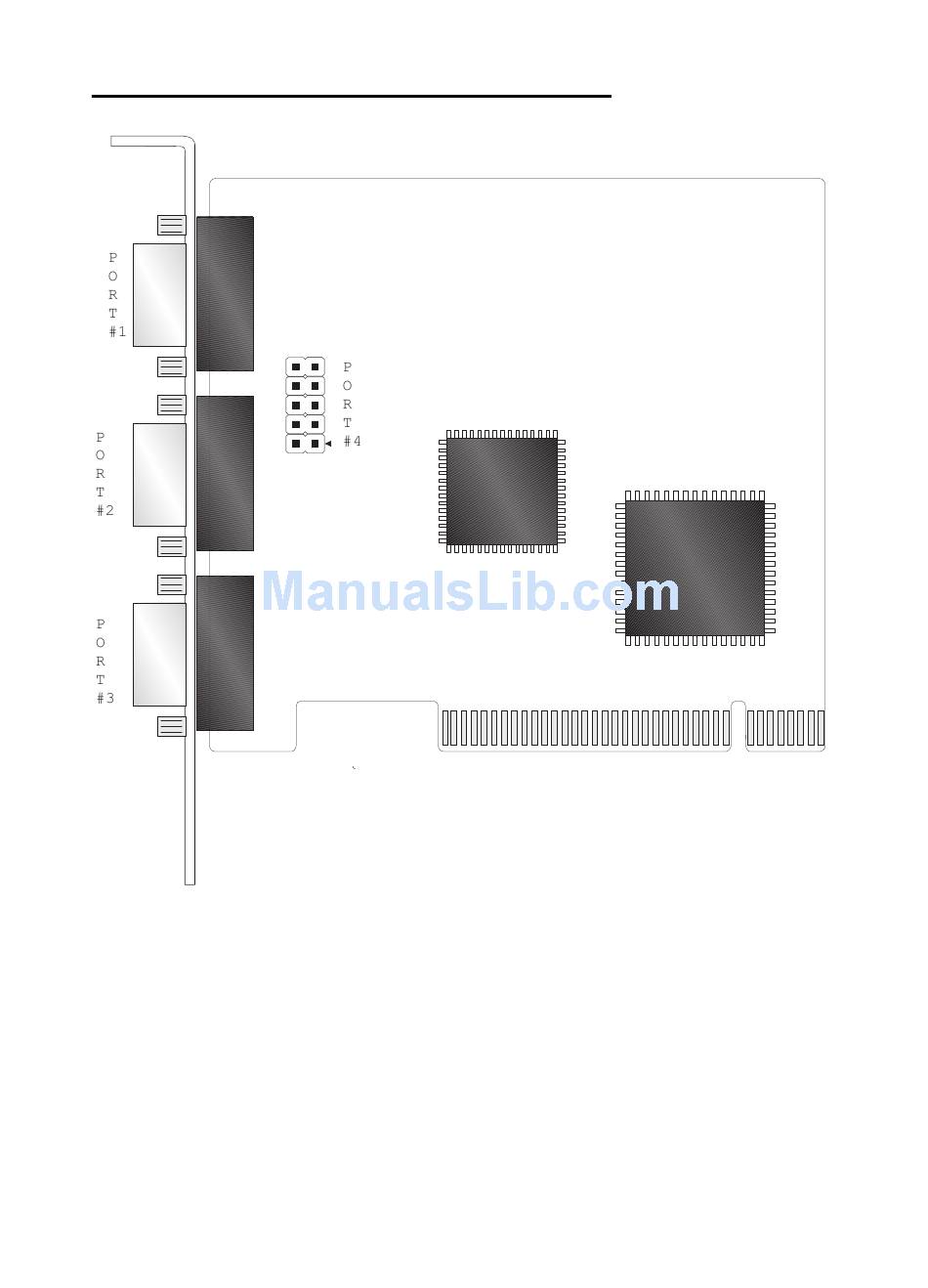

Figure 2-2. PCI 3+1 Port RS232 Card.

Dimensions:

I/O Connection:

Weight:

5 x 3 in, 120 x 85 mm

Serial Port 1: 9 pin Male D type.

Serial Port 2: 9 pin Male D type.

Serial Port 3: 9 pin Male D type.

Serial Port 4: 9 pin Male D type on optional

flylead header.

85g

Specifications
