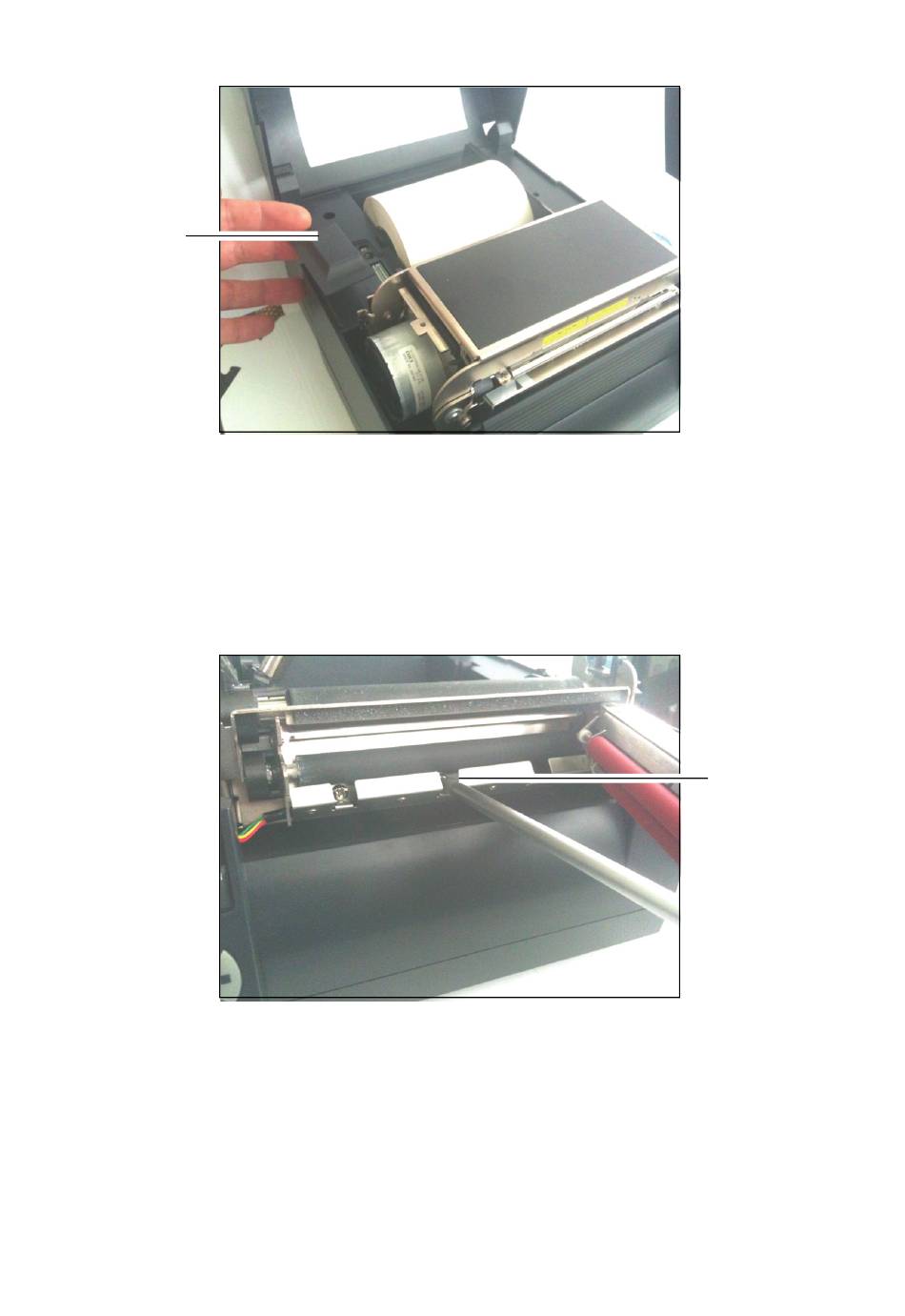

1-3 Remove the screw (M3 X8, for plastic) and take the connector cover out as
shown below.
Remove the
screw and the
connector cover
2 Installing the peeler
2-1 While inserting the peeler cable in the space (A) between the paper feed motor
and the printer housing, match the protruded pins of the peeler unit to the ho-
les of the front of the mechanism unit.
Set the peeler unit to the printer using the accessory screws (3 pcs M3 X 6)
enclosed.
– 4 –
Set 3 pcs screws
(M3X6)
