Hardware Installation
2.1
For Your Safety
In the interests of your safety and the correct operation of your ELSA MicroLink
and computer system, please regard the following:
Use only the ISDN line connection cable supplied.
n
Please follow the installation instructions in this chapter.
n
2.2
Inserting the Board

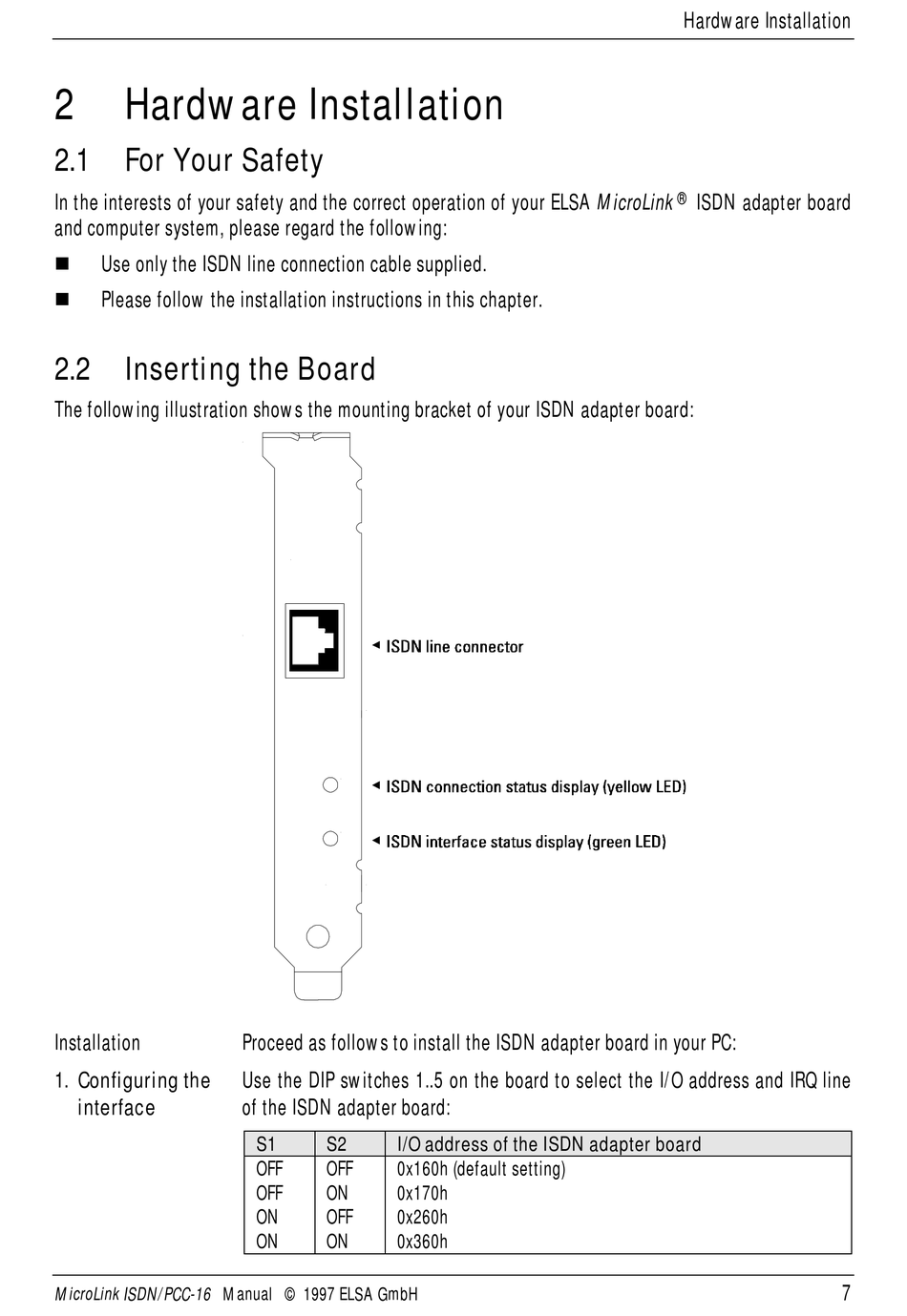

The following illustration shows the mounting bracket of your ISDN adapter board:
Installation
1. Configuring the
interface
MicroLink ISDN/PCC-16 Manual © 1997 ELSA GmbH
Proceed as follows to install the ISDN adapter board in your PC:
Use the DIP switches 1..5 on the board to select the I/O address and IRQ line
of the ISDN adapter board:
S1
S2
I/O address of the ISDN adapter board
OFF
OFF
0x160h (default setting)
OFF
ON
0x170h
ON
OFF
0x260h
ON
ON
0x360h
Hardware Installation
®
ISDN adapter board
7
