Installation and User's Guide
We value your feedback!
Your input helps to create even better
products and experiences.
Share the warmth and leave a review.
dimplex.com/sharethewarmth
IMPORTANT SAFETY INFORMATION:
Read this manual first before attempting to install or use this electric fireplace. Always comply with the
warnings and safety instructions contained in this manual to prevent personal injury or property damage.
To view the full line of Dimplex products, visit www.dimplex.com
7216350100R01

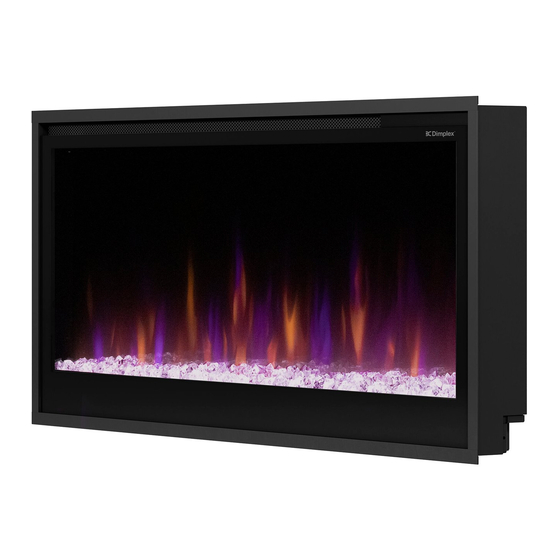

Models
PLF3614-XS
PLF4214-XS
PLF5014-XS
PLF6014-XS
Advertisement
Table of Contents
Related Manuals for Dimplex MULTI-FIRE SL PLF3614-XS
Summary of Contents for Dimplex MULTI-FIRE SL PLF3614-XS
- Page 1 Read this manual first before attempting to install or use this electric fireplace. Always comply with the warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, visit www.dimplex.com 7216350100R01...
-
Page 2: Table Of Contents
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures, precautions and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Welcome
Welcome Thank you and congratulations for choosing to purchase a Dimplex fireplace. Please carefully read and save these instructions. CAUTION: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty. -
Page 4: Important Instructions
⑦ Never locate the fireplace where it may fall into a compliance could void user's authority to bathtub or other water container. operate the equipment. SAVE THESE INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN NO USER-SERVICEABLE PARTS INSIDE www.dimplex.com... -
Page 5: Fcc Compliance
IMPORTANT INSTRUCTIONS FCC Compliance WARNING: This product can expose you to chemicals including nickel which is known to CAUTION: This unit has been tested and found the State of California to cause cancer. For more to comply with the limits for Class B digital information, visit www.P65Warnings.ca.gov device, pursuant to part 15 of the FCC Rules. -
Page 6: Technical Specifications
97 mm Model PLF3614-XS 33 1/4" 845 mm 37 1/4" 946 mm PLF4214-XS 39 1/4" 997 mm 43 1/4" 1098 mm PLF5014-XS 47 1/4" 1201 mm 51 1/4" 1301 mm PLF6014-XS 57 1/4" 1455 mm 61 1/4" 1555 mm www.dimplex.com... -
Page 7: Package Contents
Package Contents Quantity Image Description PLF3614-XS PLF4214-XS PLF5014-XS PLF6014-XS Firebox Front Glass Mirrored Glass Wall-mount Bracket Media Bed Remote Control Installation and User’s Guide Bag of Acrylic Crystals Suction Cup Do not dispose of the suction cup after installation. Keep it in a secure location as it will be helpful for maintenance and service of the unit. - Page 8 Package Contents Hardware Kit Media Bed Brackets Mirrored Glass Bracket 1" Wood Screws Black M3x10 Screws Bubble Level www.dimplex.com...
-
Page 9: Installation
Wi-Fi For installations where the use of the Flame Connect app is desired, ensure the fireplace is located within range of a Wi-Fi network. For up to date information about the app, please visit www.dimplex.com/fcapp Installation Recommendations for Overhanging Objects For overhanging temperature-sensitive objects, such as a television, a mantel, or artwork, always follow the recommendations provided by its manufacturer for installation over a heater. -
Page 10: Recessed Installation
Electrical Installation section (pp. 12-13). Reinstall the electrical cover after wiring is complete. 7. Lift the firebox into the opening in the framing. 8. Level the firebox. A bubble level is included in the hardware kit provided. Electrical Cover www.dimplex.com... -
Page 11: Wall-Mounted Installation
Installation Figure 6 9. Drive 4 screws through the mounting holes located on the inside sides of the firebox into the surrounding frame. (Figure 6) CAUTION: Ensure the air intake and heater exhaust are not obstructed in installation. These are located behind the front grill. -
Page 12: Electrical Installation
RED – L2 RED – L2 (BREAKER PANEL) GROUND - G WHITE - N WHITE – N GROUND - G 120 V BLACK – L1 BLACK – L POWER WALL SUPPLY SWITCH (BREAKER GREEN – G GROUND - G PANEL) www.dimplex.com... -
Page 13: Heater Hardware Disconnect
Installation Optional Plug Kit (PLFXSPLUG, sold separately) 1. Remove the 3 screws that hold the electrical cover plate. (Figure 5, p.10) 2. Connect the black L wire from the unit to the black wire of the plug kit. 3. Connect the white N wire from the fireplace to the white wire from the plug kit. 4. -
Page 14: Mirrored Glass Installation
It is possible to use custom media ornaments to decorate your firebox. The custom media must fit easily without scratching the glass or bowing the media bed, and must not be composed of sand or liquid, which could interfere with the safety of the Figure 16 firebox. www.dimplex.com... -
Page 15: Front Glass Installation
Installation Front Glass Installation Figure 17 1. Ensure there are no debris or finger prints on the mirrored glass or on the back of the front glass before you begin. 2. Secure the provided suction cup on the front glass, ensuring it cannot be pulled off. -
Page 16: Operation
NOTE: To operate correctly, the remote control must be pointed towards the front of the unit. The fireplace is capable of being controlled using the Flame Connect app for mobile devices. For up to date information about the app, please visit www.dimplex.com/fcapp Figure 19... - Page 17 Operation Flame Speed Press repeatedly to cycle through the 5 flame speeds. Press to turn the heat on or off. The fireplace will beep once and the icon will remain on the display when activated. Heat The fireplace can be operated in heat only mode by turning off the flame and color effects.
-
Page 18: Resetting The Temperature Cutoff Switch
5 minutes before turning the unit back on. CAUTION: If you need to continuously reset the heater, turn the unit off at the main disconnect panel and call technical support at: 1-888-346-7539. www.dimplex.com... -
Page 19: Maintenance
Maintenance Remote Control Battery Replacement Figure 20 1. Depress tab and pull out to release battery compartment on bottom of the remote control. 2. Correctly install one 3 Volt (CR2032 [longer life] or CR2025) battery in the battery compartment 3. Insert the battery compartment. Battery must be recycled or disposed of properly. -
Page 20: Troubleshooting
Err 23 Relay board not detected See service manual. Err 24 Main control board not detected See service manual. Err 25 Display board not detected See service manual. For more troubleshooting, consult the PLF-XS Service Manual which can be found at www.dimplex.com/customer_support/technical_and_troubleshooting www.dimplex.com... -
Page 21: Wiring Diagrams
Wiring Diagrams PLF3614-XS PLF4214-XS... - Page 22 Wiring Diagrams PLF5014-XS PLF6014-XS www.dimplex.com...
-
Page 23: Warranty
Warranty MULTI-FIRE SL 2 YEAR LIMITED WARRANTY • Glen Dimplex Americas will in its sole discretion either ® repair or replace such defective product or part without Section 1 Products to which this Limited Warranty charge. If Glen Dimplex Americas is unable to repair or... - Page 24 For more information on the Flame Connect app, visit dimplex.com/fcapp 1-888-346-7539 | www.dimplex.com In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice. A BRAND OF GLEN DIMPLEX AMERICAS © 2020 Glen Dimplex Americas...
