Summary of Contents for Dimplex PORTLAND PLD23-AU

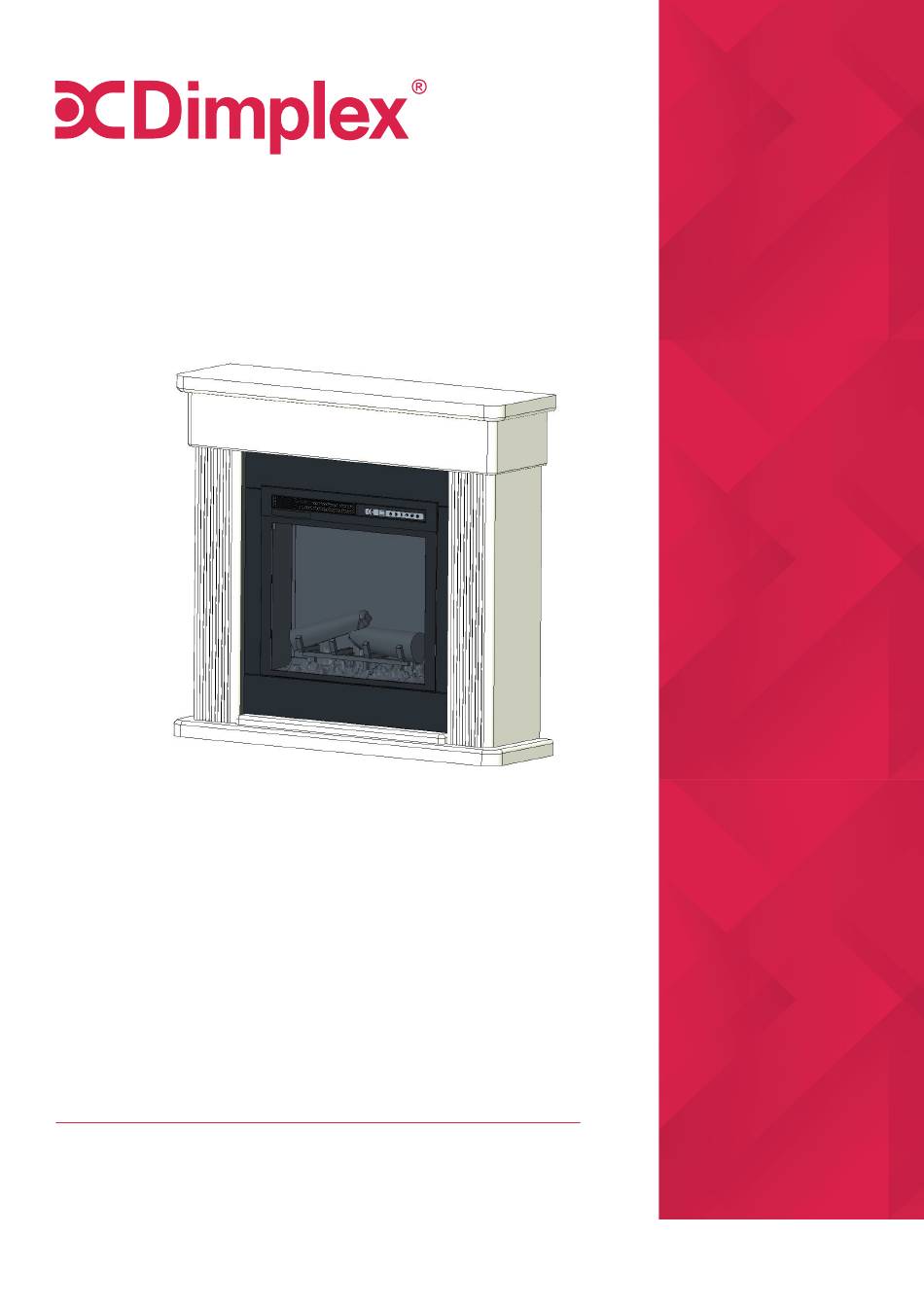

- Page 1 INSTRUCTION MANUAL PORTLAND 23 1.5kW Suite Model: PLD23-AU For domestic household use only. 8/55273/0 Issue 1...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 service agent or a similarly qualified person in order to avoid a hazard. • Keep the supply cord away from the front of the appliance. • Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specifications
Specifications Model no. PLD23-AU Suite White - RAL9016 Colour/Finish Facia Drak Grey - RAL 7024 Firebox XHD23L-AU Watts 1400-1500 Heat Settings Thermostat Control Remote Control Warranty 2 years For greater precision, please always refer to the rating label placed on the product. - Page 6 Setup & Product Dimensions WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND ON THIS PRODUCT. WARNING: THE APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT, THIS RESTRAINT IS NOT A SUBSTITUTE FOR PROPER ADULT SUPERVISION. THIS RESTRAINT MAY PROVIDE PROTECTION AGAINST TIPPING FURNITURE.
- Page 7 Setup & Product Dimensions 1080 Mounting Glass frame- See Fig to the left. Product comes with a glass frame that is not fixed to firebox, but packed separately to the fire in its own packing. To fix the frame the hooks on both side at the top need to be aligned up with corresponding slots on both sides of the fire.
- Page 8 Touch Panel & Remote WARNING: The Electric Firebox must be installed properly before it is used. CAUTION: Except for installation and cleaning described in this manual, an authorized service representative should perform any other servicing. The manual controls for the Electric Firebox are located on the front panel. Touch an icon to activate.
-
Page 9: Operation
Operation Icon Function Description Power Press to turn unit Off or On. Unit Off Press to turn everything Off. Press again to turn unit On with previous settings. Unit On Press to turn unit On with previous settings. - If the flame effect was On, the flame will turn on and the previous heat setting will be activated (On or Off). - Page 10 Operation User Modes: Mode Name / Action (Actions cannot be input by remote control) Description Press both Temp Button ( ) and flame speed( ) on the unit and Change Celsius ( hold until beep is heard and display flashes. (To revert back to Celsius to Fahrenheit ( repeat this action) Hold both Heat Button (...
-
Page 11: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 12 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
