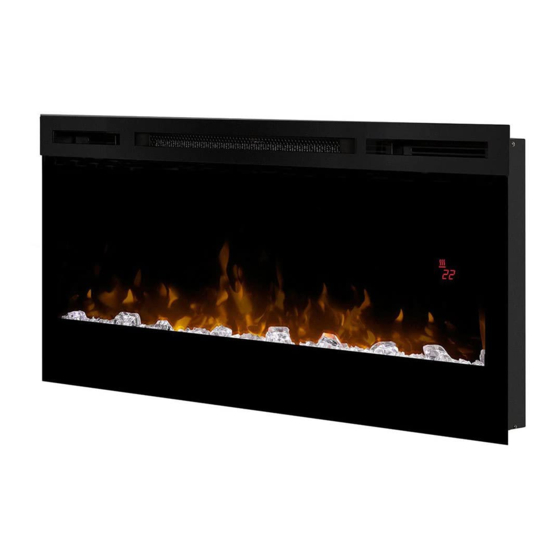

Dimplex PRISM BLF3451-AU Owner's Manual

34"
Hide thumbs Also See for PRISM BLF3451-AU:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this fireplace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
08/53541/0 (AU/NZ) Iss 4

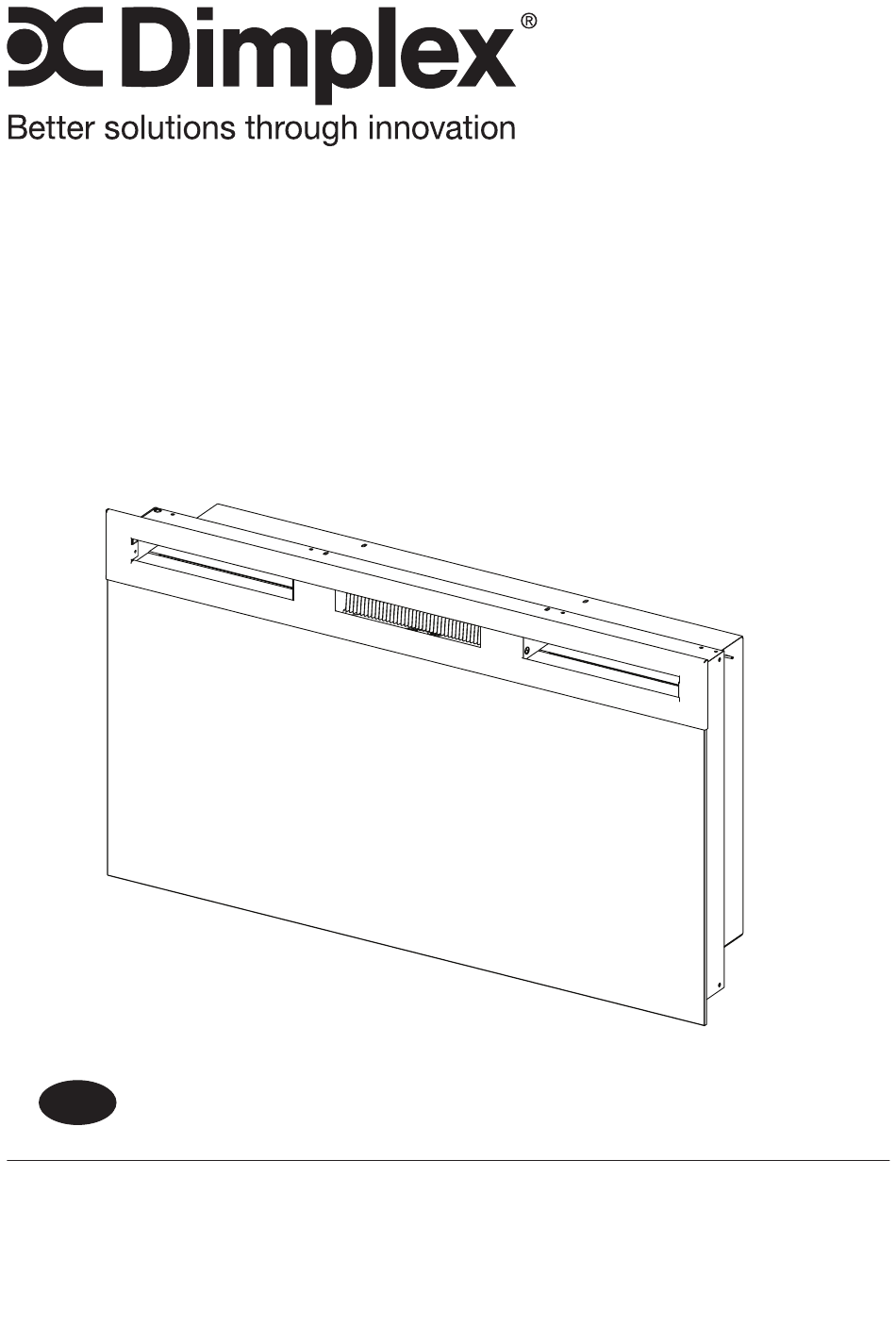

Owner's Manual
Model
BLF3451-AU/
PRISM 34"
OCN11654

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRISM BLF3451-AU and is the answer not in the manual?

Questions and answers

Related Manuals for Dimplex PRISM BLF3451-AU

Summary of Contents for Dimplex PRISM BLF3451-AU

  • Page 1 08/53541/0 (AU/NZ) Iss 4 OCN11654 Owner’s Manual Model BLF3451-AU/ PRISM 34" IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to install or use this fireplace. For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage.

  • Page 2: Table Of Contents

    Table of Contents Welcome & Congratulations ....3 IMPORTANT INSTRUCTIONS ....4 Quick Reference Guide .

  • Page 3: Welcome & Congratulations

    Welcome & Congratulations Thank you and congratulations for choosing to purchase an electric NO NEED TO RETURN fireplace from Dimplex, the world TO THE STORE leader in electric fireplaces. Questions With the Assembly? Please carefully read and save these instructions.

  • Page 4: Important Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: 1. If the appliance is damaged, check with the supplier before installation and operation.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS not plug in, regulate and clean the appliance or perform user maintenance. 7. Do not use this appliance in series with a thermal control, a program controller, a timer or any other device that switches on the heat automatically, since a fire risk exists when the appliance is accidentally covered or displaced.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

  • Page 7: Quick Reference Guide

    Quick Reference Guide Figure 1 ① The electrical information regarding your electric fireplace can be found on the rating label located on 6.8 in. (172 mm) the front of the unit, behind the glass. 3.8 in. (95 mm) Before installation, please record your fireplace's serial number below for future reference.

  • Page 8: Fireplace Installation

    Fireplace Installation Site Selection 2. For ease of electrical hook up you may wish to Review and consider all of the locate the fireplace near an following conditions for installation: existing outlet (for plug-in • Dimensions of the unit: 870mm convenience).

  • Page 9: Surface Installation

    Fireplace Installation The fireplace is packaged with a three prong plug installed for Figure 2 plug-in convenience. Hard wiring Wall Mounting the fireplace is also an option Bracket by removing the plug from the factory fitted cord and completing the wiring according to National and Local Elecrical Codes.

  • Page 10: In-Wall Recessed Installation - 100Mm Deep

    Fireplace Installation In-wall Recessed Installation - 100mm Deep Figure 3 CAUTION: Two people may be required for various steps of this procedure. 1. Prepare a wall with a framed opening of 775mm wide x 420 mm high (Figure 4). NOTE: The sizing has allowed for 7mm around the fireplace insert for ease of installation.

  • Page 11: Flush Mounted Installation - 200Mm Deep

    Fireplace Installation Ensure that the 3-Position Switch is set to the Off position ("O") and that the circuit on which the fireplace is Figure 4 to be installed has the power cut off at the service panel until installation is complete. 3.
  • Page 12 Fireplace Installation Figure 6 the circuit on which the fireplace is to be installed has the power cut off Mounting at the service panel until installation hole is complete. 3. Lift fireplace and insert into opening. The fireplace's mounting trim should be flush against the wall (Figure 8).

  • Page 13: Front Glass Installation

    Fireplace Installation 6. Refer to Front Glass Figure 8 Mounting hole Installation section, for final installation procedures. Front Glass Installation 1. Evenly distribute supplied glass rock on the front tray of the fireplace (Figure 9). 2. Carefully mount front glass assembly so that the front glass hooks (4) hang on the Wall...
  • Page 14 Fireplace Installation Figure 9 Figure 10 Front tray Front glass assembly Hooks (4) Mounts (4)

  • Page 15: Operation

    Operation Figure 11 Figure 12 C D E Floating Display functions that it was set to when WARNING: This electric firebox it was turned Off and the intake must be properly installed before temperature will be indicated on it is used. the Floating Display The unit can be controlled by ! NOTE: When any button is...
  • Page 16 Operation • Indicated by the icon and to increase the setpoint on the intake temperature being the unit or the remote. displayed on the Floating • The Floating Display will Display , for 5 seconds before indicate the temperature setpoint turning off.
  • Page 17 Operation → Changed by repeatedly pressing Sleep Timer the corresponding button on the The Sleep Timer can be set to remote or the unit. automatically shut off the fireplace • Cycles through the different after a preset time (from 30 minutes preset ambient lighting settings to 8 hours).
  • Page 18 Operation R e m o t e C o n t r o l B a t t e r y Replacement To replace the battery: 1. Slide battery cover open on the remote control. 2. Correctly install one 3 Volt (CR2032 [longer life] or CR2025) battery in the battery holder.

  • Page 19: Maintenance

    To prevent scratching, do not use abrasive cleaners.  Contact Details Glen Dimplex Australaasia Ltd Glen Dimplex Australia Pty Ltd 38 Harris Road 8 Lakeview Drive, Scoresby, East Tamaki, Auckland 2013 VIC 3179 New Zealand...
