Summary of Contents for Dimplex PORTLAND30

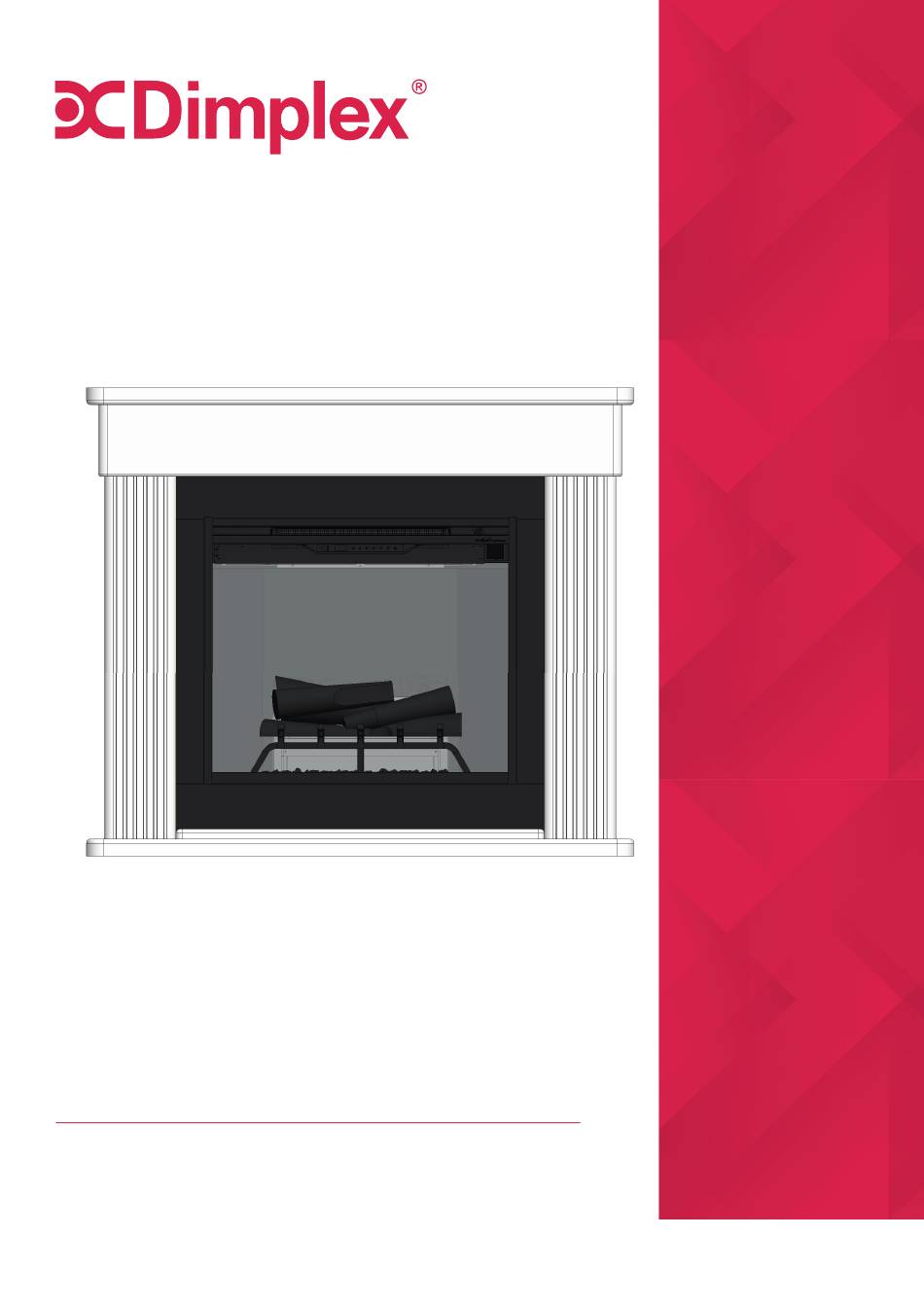

- Page 1 INSTRUCTION MANUAL PORTLAND30 2kW Revillusion Suite Model: PLD30-AU For domestic household use only. 8/55261/0 Iss1...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 service agent or a similarly qualified person in order to avoid a hazard. • Keep the supply cord away from the front of the appliance. • Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- Page 4 WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children If an extension Where the power may be left unattended lead may become cable may be overloaded damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specifications
Specifications Model no. PLD30-AU WHITE RAL9016 Colour Suite Colour Facia GREY RAL7024 Dimensions 1380w x 410d x 1180h Watts 2000 Heat Settings Thermostat Control Remote Control Warranty 2 years Dimensions (w x d x h) 150 x 150 x 510mm For greater precision, please always refer to the rating label placed on the product. - Page 7 Setup & Product Dimensions Operation Temperature -20°C to 40°C Fixed Wiring In such instances this appliance must be installed by a suitably quailified installer and the means for disconnection must be incorporated in the fixed wiring in accord- ance with the local wiring rules. WARNING Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electric shock, or injury to persons.
- Page 8 Setup & Product Dimensions Fitting WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND ON THIS PRODUCT. WARNING: THE APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT, THIS RESTRAINT IS NOT A SUBSTITUTE FOR PROPER ADULT SUPERVISION.
- Page 9 Touch Panel & Remote WARNING The Revillusion Electric Firebox must be installed properly before it is used. CAUTION Except for installation and cleaning described in this manual, an authorized service representative should perform any other servicing. The manual controls for the Revillusion Electric Firebox are located on the front panel.
-
Page 10: Operation
Operation Icon Function Description Press to turn the unit on or put it in Stndby mode. When the unit is turned back on, it will retain the previously used settings (except timer). Power/ Standby • Heat On Press to turn heat On (indicated by 1 short beep and the icon appearing on the display). - Page 11 Operation Icon Function Description Press multiple times to change the flame base colors Color from Red to Blue to Off. (The first segment on the Themes display will change from "r" to "b" to blank) This feature is active only when the flame effect is On. Press multiple times to change the LEDs on the sides and back of the unit from Midnight mode to white to 360' Light...
- Page 12 Cleaning Over time, dust can accumulate on the logs, grate & base which can effect performance. It is recommended to clean the unit at least once a month. CAUTION: ALWAYS Turn the unit OFF and disconnect the appliance from the power supply before undergoing any cleaning and maintenance.
-
Page 13: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
