Installation and User's Guide

IMPORTANT SAFETY INFORMATION:

Read this manual first before attempting to install or use this electric fire. Always comply with the warnings

and safety instructions contained in this manual and presented on the appliance to prevent personal injury

or property damage.

To view the full line of Dimplex products, visit www.dimplexfires.com

The product complies with the required Product Safety, Electromagnetic Compatibility and Environmental

Standards.This product is fully compliant with LVD,EMC. RoHs and EcoDesign Directives.

EN: This product is only suitable for well insulated rooms or occasional use. DE: Dieses Produkt ist nur für gut isolierte Bereiche oder

gelegentliche Verwendung geeignet. FR: Ce produit convient uniquement à des endroits bien isolés ou pour un usage occasionnel.

IT: Questo prodotto è adatto solo per spazi ben isolati o per uso occasionale. ES: Este producto sólo es adecuado para espacios

bien aislados o un uso ocasional. NL: Dit product is uitsluitend geschikt voor goed geïsoleerde ruimten of voor sporadisch gebruik.

PL: Produkt ten jest odpowiedni wyłcznie do dobrze odizolowanych miejsc lub do okazjonalnego uytku. NO: Dette produktet

egner seg kun for godt isolerte rom eller sporadisk bruk. RO: Acest produs este adecvat exclusiv spaiilor bine ventilate sau utilizrii

ocazionale. CZ: Tento výrobek je vhodný pouze do dobe izolovaných prostor nebo k píležitostnému použití. DK: Dette produkt

er kun egnet til velisolerede rum eller lejlighedsvis brug. PT: Este produto somente é adequado para espaços bem isolados ou

uso ocasional. SE: Denna produkt är endast avsedd för välisolerade utrymmen eller tillfällig användning. FI: Tämä tuote soveltuu

ainoastaan hyvin eristettyihin tiloihin tai satunnaiseen käyttöön. SK: Tento výrobok je vhodný len pre dobre izolované priestory alebo

na obasné použitie. SI: Ta izdelek je primeren le za dobro izolirane prostore ali za obasno uporabo. HR: Ovaj proizvod je pogodan

samo za dobro izolirane prostore ili povremenu upotrebu. HU: Ez a termék csak jól szigetelt terekhez vagy eseti használatra alkalmas

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE

Model

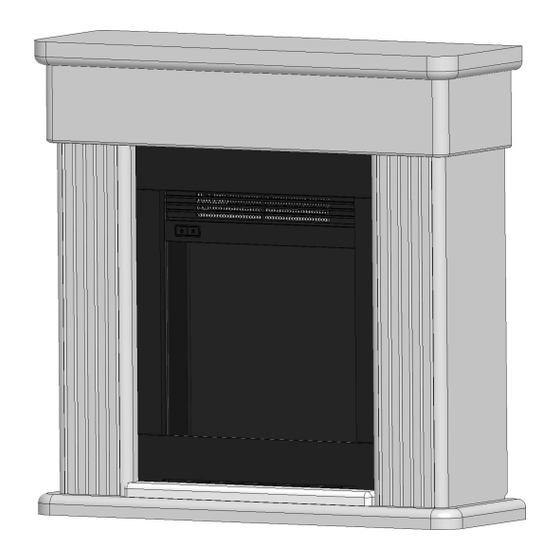

Portland | PLD16-EU

8/55256/0 ISSUE 1

Table of Contents

Need help?

Do you have a question about the Portland and is the answer not in the manual?

Questions and answers

Summary of Contents for Dimplex Portland

Page 1 To view the full line of Dimplex products, visit www.dimplexfires.com The product complies with the required Product Safety, Electromagnetic Compatibility and Environmental Standards.This product is fully compliant with LVD,EMC.
Page 2: Table Of Contents
Table of Contents Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 IMPORTANT INSTRUCTIONS .
Page 3: Registration
Registration REGISTER YOUR PRODUCT ONLINE www.dimplexfires.com/register Please record your model and serial numbers for future reference. Model Serial Number Model and serial number label are located on the back of the engine. SAVE THESE INSTRUCTIONS...
Page 4: Important Instructions
IMPORTANT INSTRUCTIONS CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE Important Safety Advice When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: If the appliance is damaged, check with the supplier before installation and operation.
Page 5 IMPORTANT INSTRUCTIONS Warning: In order to avoid overheating, do not cover the appliance. Do not place material or garments on the appliance, or obstruct the air circulation around the appliance, for instance by curtains or furniture, as this could cause overheating and a fire risk. The appliance carries a Do Not Cover label or the Warning Symbol shown here on the right.
Page 6: Technical Specifications
Technical Specifications Electrical Rating 230V 240V Heat Output Nominal Heat Output Minimum Heat Output Maximum Continuous Heat Output Auxiliary Electricity Consumption 0.31 0.32 In Standby Mode Flame Only with electronic room temperature control. Product Dimensions www.dimplexfires.com...
Page 7: Installation
Installation Before installation, check that the supply voltage is 230 V or 240 V. NOTE: The product must be plugged into AC power. Take the time to thoroughly read all safety warnings and instructions before installing the device. Carefully remove all packing items and read the warning labels on the device.
Page 8: Operation
Operation WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY AND/OR DAMAGE. NOTE: The product will retain the previously used settings when put into standby. It will return to factory settings after a power interruption. Thermal Safety Cut-out A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating.
Page 9: Remote Operation
Operation Remote Operation A multifunction IR remote control is supplied. NOTE: To operate correctly, the remote control must be pointed toward the front of the unit. NOTE: Remove the plastic tab from the remote to activate the remote. Standby Press to turn on the fire or to put it in standby mode. Press multiple times to change the Sleep timer in 0.5 hr increments from 0.5 hr Sleep timer to 8.0 hr before turning off.
Page 10: Maintenance
The glass screen should be cleaned carefully with a soft cloth. Do not use proprietary glass cleaners. CAUTION: Repair of this heater must be carried out by Dimplex or its authorised agent. CAUTION: We recommend that you arrange for this heater to be checked annually for safety by a qualified electrician.
Page 11: Troubleshooting
Troubleshooting We are here to help, if you have any questions about the operation of this fire or need some help with troubleshooting please contact our customer support team message us via our website www.dimplexfires.com/support. Problem Cause Solution Fireplace does not turn on Ensure unit is wired correctly.
Page 12: Guarantee
© Glen Dimplex Flame Europe © Glen Dimplex Flame Europe. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Flame Europe.
