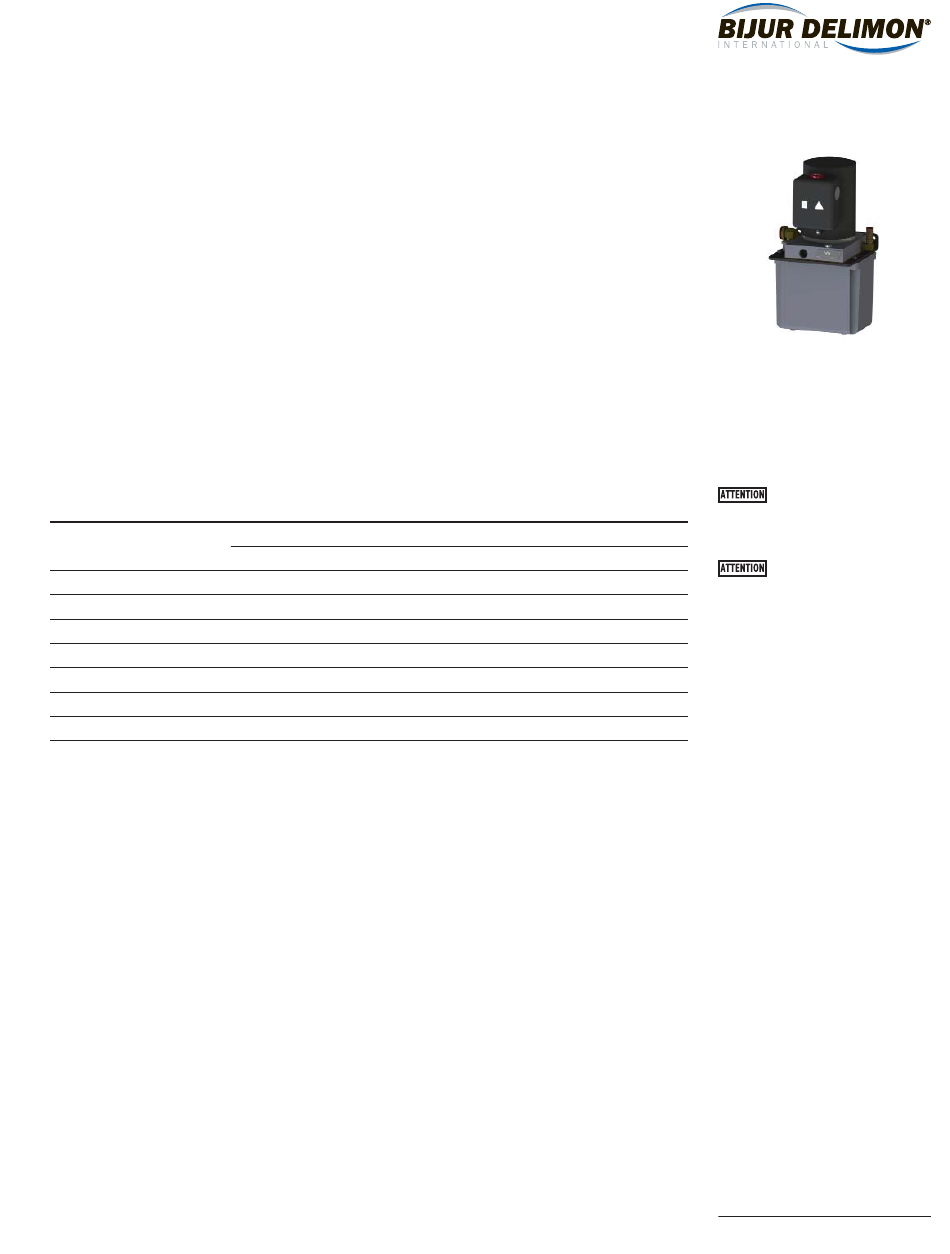

V5 Lubricator
Continuous Duty
General
The system consists of the following three basic elements:
1. Lubricator
2. Distribution tubing
3. Control units
The V5 Lubricator forces a constant fl ow of oil into a single line of distribution tubing branched
to supply oil to the bearing surfaces through control units which proportion the correct oil fi lm to
each bearing.
Operation
The V5 Lubricator consists of a motor-driven gear pump with a controlled constant volume discharge.
The fully automatic lubricating system is preset by the machine manufacturer for best operation.
Technical Data
Motor
Voltage
Frequency
Speed
Start Amperage
Run Amperage
Maximum Ambient Temperature
Inlet Filter
Discharge Adjustment
The V5 Lubricator is pre-set with a maximum discharge of 80cc per minute (67cc with a 50 cycle
motor). Pressure is limited internally to 130 psi by a relief valve.
System & Limitations
Use Type C control units. Viscosity range is 100 to 10,000 SSU at operating temperature.
See Bijur Engineering Manual for system limitations.
1
TENV
1/20 hp, NEMA Frame L330, totally enclosed, non-ventilated
TEFC
1/20 hp, NEMA Frame L330, totally enclosed, fan cooled
115 VAC
50/60 Hz
1425/1725 rpm
2.3/2.5 amp
0.67/0.78 amp
104ºF (40ºC)
125 Micron
60639 Lubricator
Use clean oil only of the type and viscosity
recommended by machine manufacturer.
Replace fi lter group annually.
BIJUR DELIMON INTERNATIONAL
(919) 465 4448
LOCAL
(800) 631 0168
TOLL-FREE
(919) 465 0516
FAX
WWW.BIJURDELIMON.COM
2250 Perimeter Park Dr., Suite 120
Morrisville, NC 27560
35955 • R1 07/14
