Bijur Delimon TMD-5 Manual

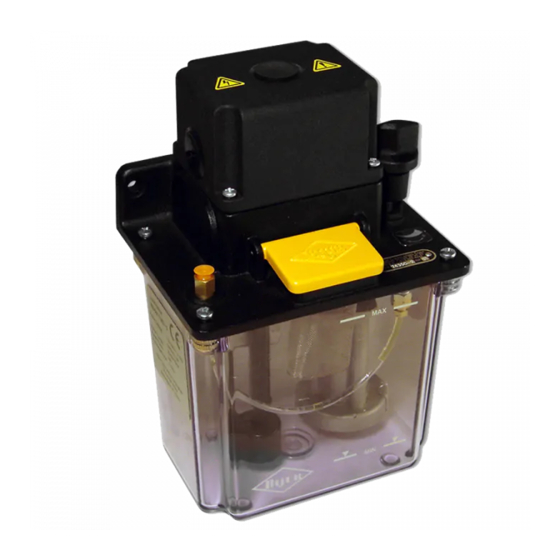

TMD-5 Lubricator
Automatic Cyclic
Before installing or operating this lubricator, please read this manual carefully. Failure to follow
instructions can result in damage to the product and/or serious bodily injury. The TMD-5 lubricator
meets all operating parameters for single line resistance centralized lubricating systems
incorporating Bijur Delimon meter units.
Defi nition of Precautions and Symbols
The following symbols, used to identify safety instructions,
are defi ned as follows:
Non-compliance will affect safety.
Electrical safety is involved.
Safe operation of the lubricator and/
or protection of the lubricator should
be considered.
Electrical connections made to Earth ground.
Conditions and actions that pose hazards to
the user.
Increase and decrease of lubricant discharge
adjustment. Lifting collar and turning counter-
clockwise will increase lubricant discharge.

Declaration of Conformity

Bijur Model TMD-5, Automatic, Cyclic Lubricator
MANUFACTURER
Bijur Lubricating Corporation, A Subsidiary of Industrial Manufacturing Company International
STATEMENT OF CONFORMITY
Based on test results using appropriate standards, the product is in conformity with:
+ Machinery Directive 89/392/EEC
+ Electromagnetic Compatibility Directive 89/336/EEC
+ Low Voltage Directive 73/23/EEC
+ Amendments 93/68/EEC, 92/31/EEC
This Conformity is indicated by the symbol
SAMPLE TESTS
Standards used:
+ Safety of Household and Similar Electrical Appliances, EN 60335-1 (including amendments
A2, A5, A6, A51,A53, and A54), EN 60335-2-41 (including amendment A1)
+ Electromagnetic Compatibility Generic Emissions Standard, EN 50081-1 (1992)
+ Electromagnetic Compatibility Generic Immunity Standard, EN 50082-1 (1992)
+ Pumps and Pump Units for Liquids General Safety Requirements, prEN 809 (1995)
All tests have been performed in a typical confi guration.
1
The following symbols, used to identify the lubricant low
level switch within the lubricator, are defi ned as follows:
Normally closed electrical contacts (contacts
close on low lubricant level).
Normally open electrical contacts (contacts
close on low lubricant level).
MOTO R
The electric motor.
AC - alternate current voltage.
DC - direct current voltage.
i.e. 'Conformité européenne'
BIJUR DELIMON INTERNATIONAL
(919) 465 4448 LOCAL
(800) 631 0168 TOLL-FREE
(919) 465 0516 FAX
WWW.BIJURDELIMON.COM
2100 Gateway Centre Blvd., Suite 109
Morrisville, NC 27560
24117 • R6 10/12
