Bijur Delimon V5 60444 Technical Data

V5 Lubricator
Automatic Continuous, 60444 Davenport
Operation

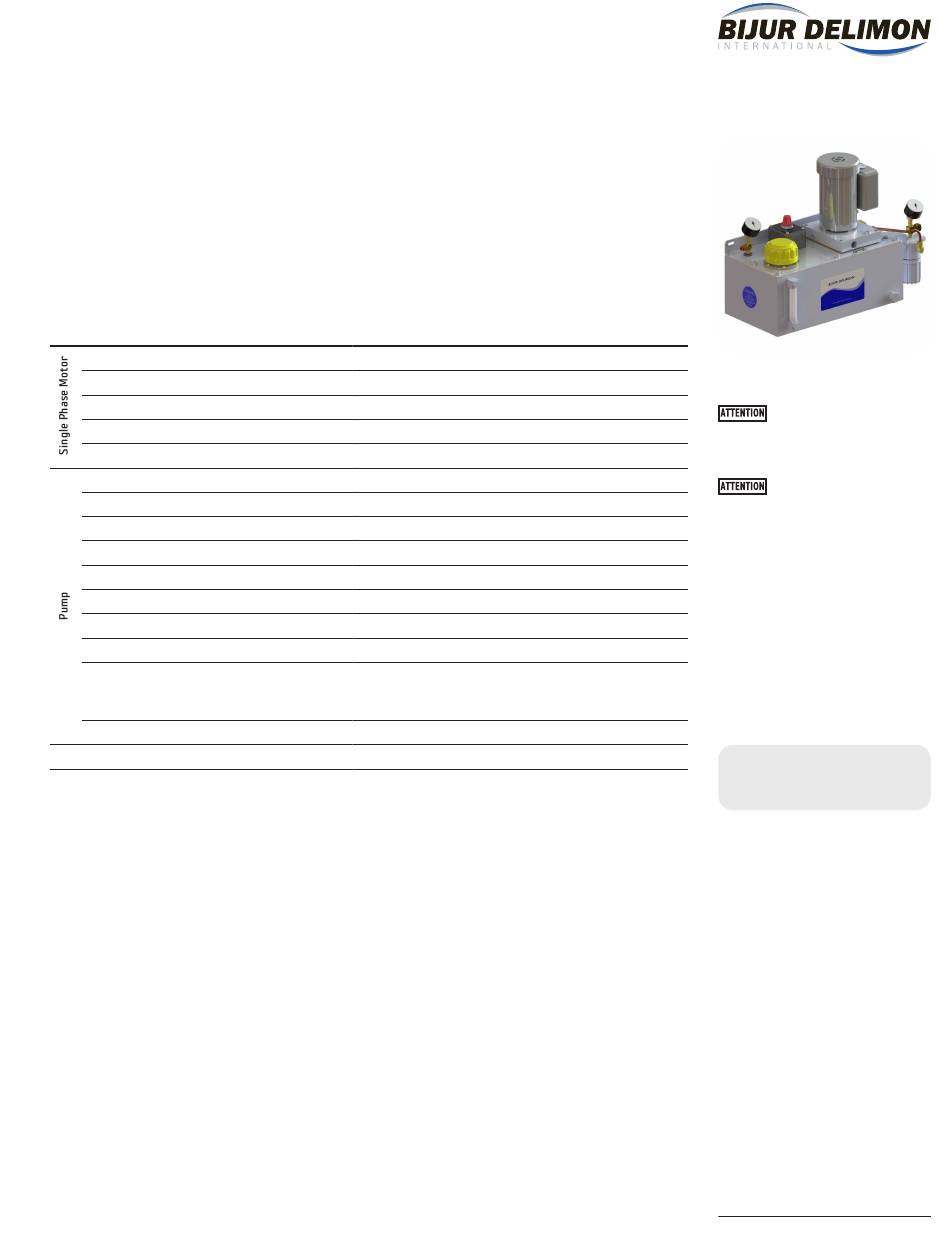

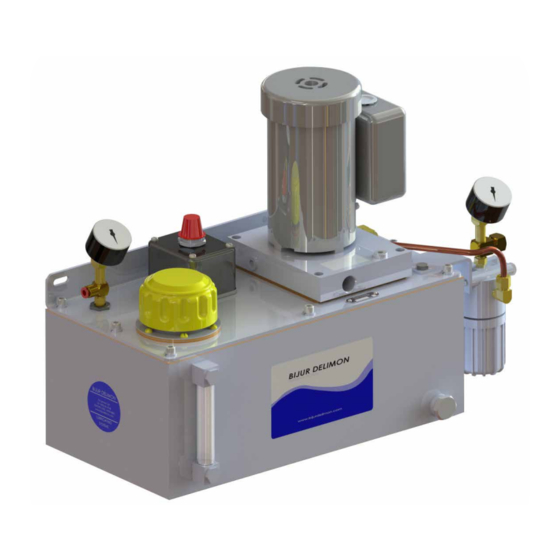

The V5 Lubricator consists of a motor-driven gear pump with a controlled constant volume discharge.
The fully automatic lubricating system is preset by the machine manufacturer for best operation.
Discharge volume may be adjusted by turning the bypass valve counter-clockwise to reduce the
pressure and thus automatically reduce the amount of oil, or by closing valve to increase pressure
and oil flow.
Technical Data
Motor
Voltage
Frequency
Speed
Maximum Ambient Temperature
Outlet Connection
Discharge
Bypass Regulation
Relief Valve
Inlet Filter
Outlet Line Filter
Reservoir
Level Switch
Pressure Switch
Pressure Gauges
1 Use B1371/B3783 compression bushing with B1061/B8272 sleeve
Discharge Adjustment
The V5 Lubricator is preset with a closed bypass valve for a maximum discharge of 132cc per minute.
With lubricator at normal operating temperature on machine, desired discharge volume is obtained
by adjusting the bypass valve to pre-calculated pressure on system pressure gauge. Pressure is
limited internally to 50 psi by a relief valve.
System & Limitations
Use Type C control units. Viscosity range is 100 to 10,000 SSU at operating temperature.
See Bijur Engineering Manual for system limitations.
1
1/20 hp 50/60 Hz CONTINUOUS DUTY, T.E.F.C.
115 VAC
60/50 Hz
1370/1670 rpm 50/60 Hz
104°F (40°C)
5/16-24 Female for 5/32" O.D. Tube (4mm)
132cc (110 cc/50Hz)
Flow Bypass
50 psi
60 Micron
25 Micron
8 Liter
Single Contact N/O
SPST N/O
Opens @ 9+/-1 psi on falling pressure
Closes @ 11+1-2psi on rising pressure
0-100 psi
Use clean oil only of the type and viscosity
recommended by machine manufacturer.
1
Replace filters annually.
Notes:
P.N. 60444 Replaced P.N. 32283
