Bijur Delimon L18P Manual

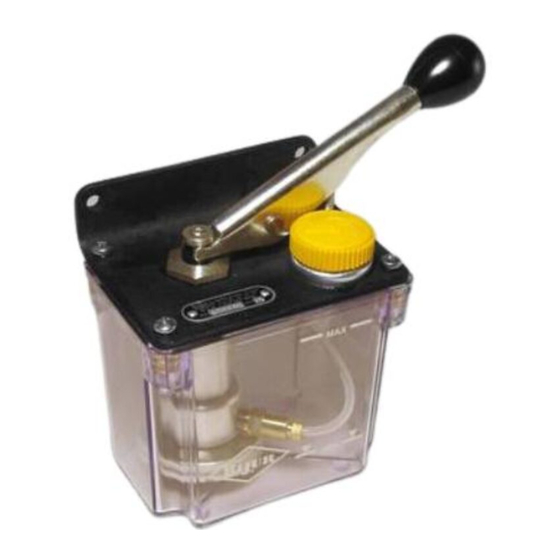

L18P Lubricator
Manual, One Shot

Operation

The L18P Lubricator is a spring return piston pump. Pushing the operating handle down raises a
piston and compresses a spring. Releasing the handle discharges oil into the system. Oil viscosity
does not affect discharge volume, but may affect system pressure.

Technical Data

Reservoir Capacity
Lubricator Inlet Filter
Discharge Pressure
Factory Discharge Setting
Discharge Volume Per Stroke
Viscosity Range

Notes Regarding Use

1. Lubricator inlet filter should be inspected periodically and cleaned/replaced as required.
2. Discharge pressure will decrease as discharge volume decreases and the number of meter
units in the system increases.
System & Limitations
Use Type F meter units. Do not exceed 70 meter units. To calculate system flow (ø), refer to Bijur
Engineering Manual. Do not exceed figures shown below.
Maximum Permissible Total System Flow (o)
CC Per Shot 6
Stroke Setting 15/64"
15 1750
20 1500
25 1230
30 950
40 780
50 640
60 570
70 500

Startup Instructions

Fill reservoir; operate lubricator until oil flows freely at all bearings.
1.
1 litre
40 micron particle separation
65 psi maximum
18cc
6 to 18cc infinitely adjustable
150 to 8,000 SSU at operating temperature
9 12
23/64" 31/64"
2400 2900
1800 2200
1450 1700
1150 1400
930 1100
770 920
680 810
600 720
15 18
19/32" 23/32"
3500
2600 3400
2000 2500
1700 2100
1300 1600
1100 1400
960 1200
860 1080
