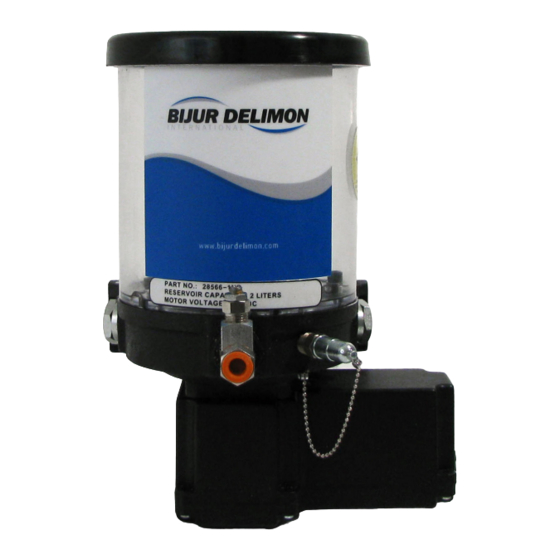

MultiPort Lubricator
Electric motor-driven, Grease and Oil
General
The multiPort Lubricator is a rugged, motor-driven, electric lubricator, equipped with fixed output
pumping elements to discharge grease or oil over a wide operating range. Low level switches are
standard on this compact unit. up to three independent feed lines can be used with the multiPort
Lubricator. A selection of timers and controller/monitors are available to program multiPort
Lubricators.
Technical Data
Reservoir Capacity
Lubricant
Maximum Working Pressure
Operating Voltage
Operating Temperature Range
Pumping Elements
Output per 1 rpm
Motor
Low Level Switch
Discharge Element Output Port
Fill Connection
Materials
Motor
IP Enclosure Rating
Grease
iP-55
Oil
iP-55
1
Operates at 40 rpm @ 68˚F, 1000 psi back pressure
2
Operates at 32 rpm (60 Hz) @ 68˚F, 1000 psi back pressure
1
2, 4 and 8 liter (4, 8 and 16 lb)
Grease
nLGi grade 2 (max)
Oil
up to 5000 SuS
Grease
3600 psi (240 bar)
Oil
2900 psi (180 bar)
As noted below
0˚F to 120˚F (-18˚C to 49˚C)
1 to 3
0.16cc (0.01 cu. in.)
As noted below
Available on some models (normally closed)
1/4" nPTF
Grease
male filler fitting, quick disconnect
Oil
Fill cap
Plastic, Steel (220/440 VAC grease)
HP Rating
Voltage
0.068
12 VdC
24 VdC
0.08
110 VAC
220/440 VAC
0.068
24 VdC
0.08
110 VAC
220/440 VAC
Amperage
4 FLA
1
1
2 FLA
1.83 FLA
2
0.63 FLA
2
2 FLA
1.83 FLA
0.63 FLA
BIJUR DELIMON INTERNATIONAL
(919) 465 4448
LOCAL
(800) 631 0168
TOLL-FREE
(919) 465 0516
FAX
www.bijuRdELimOn.COm
2100 Gateway Centre blvd., Suite 109
morrisville, nC 27560
35505 • R3 09/09
