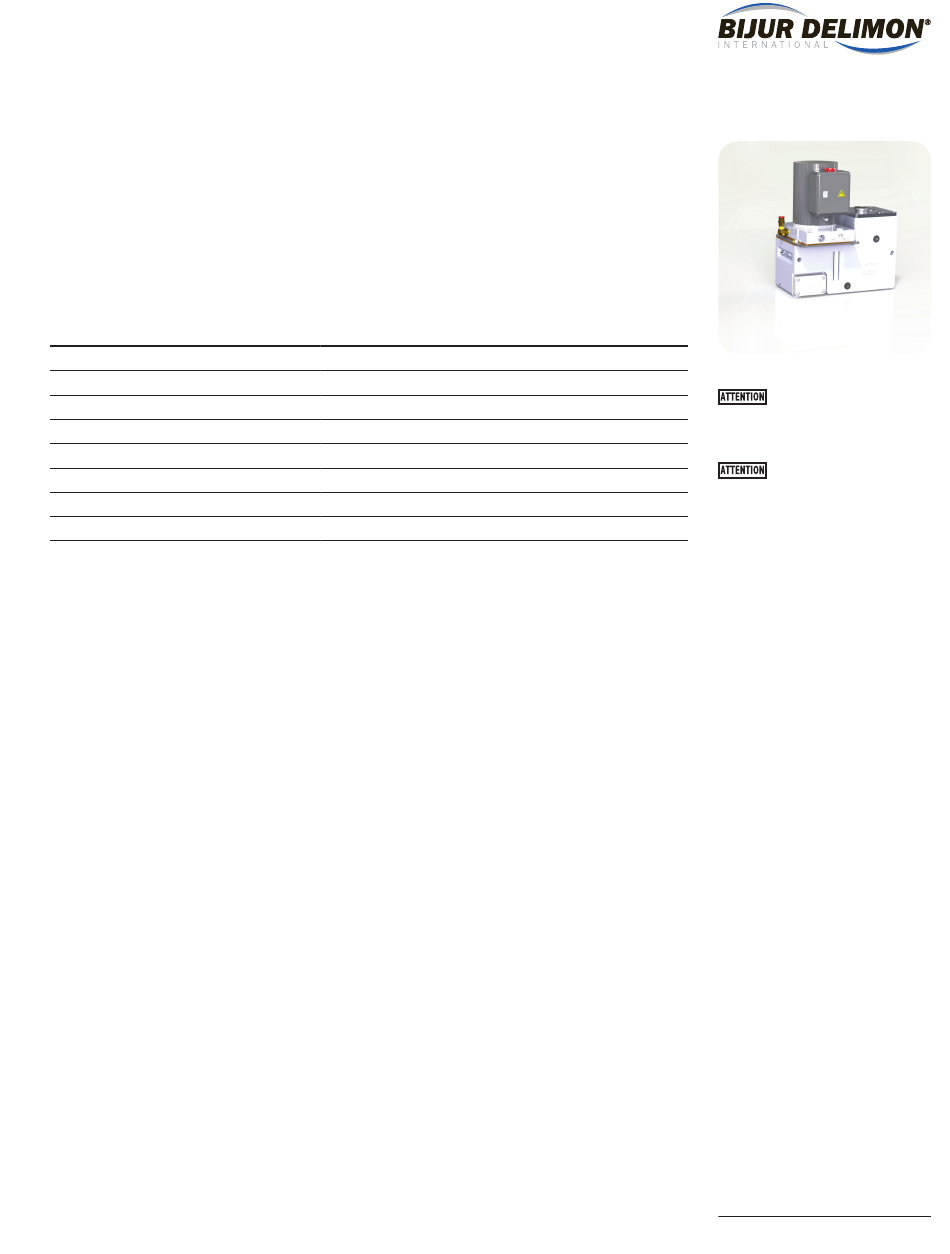

Bijur Delimon V5B Quick Start Manual

V5B Lubricator
Automatic Continuous

Operation

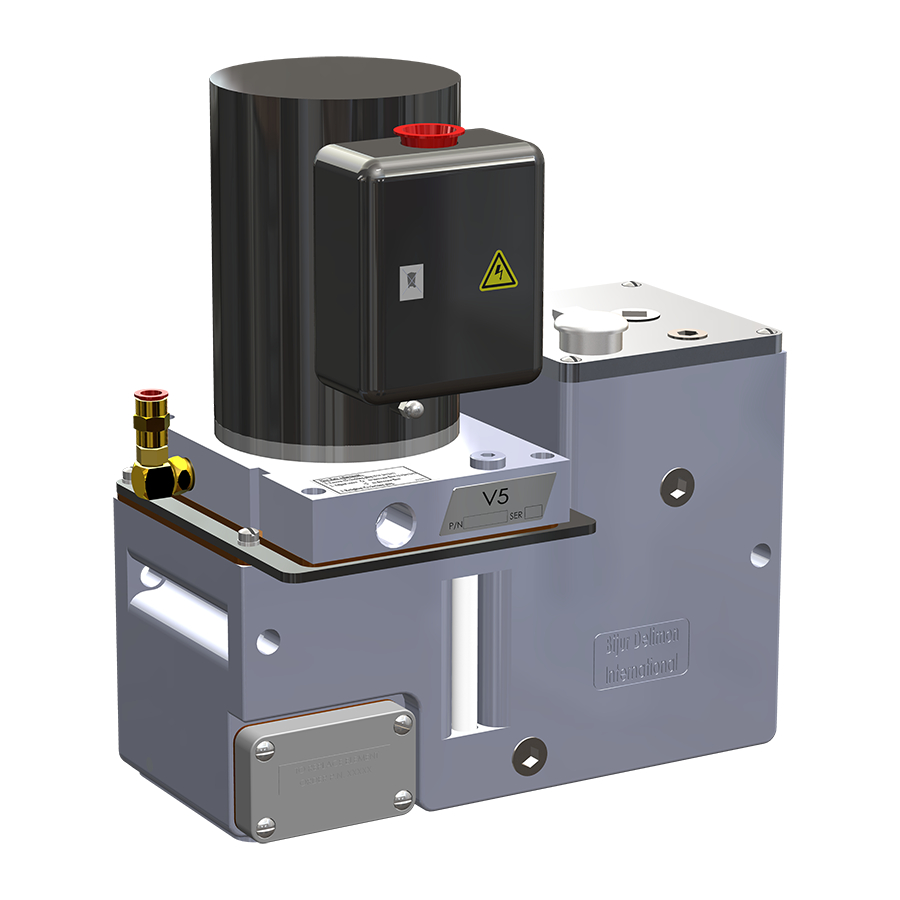

The V5B Lubricator consists of a motor-driven gear pump with a controlled constant volume
discharge. The fully automatic lubricating system is preset by the machine manufacturer for best
operation. Discharge volume may be adjusted by turning the bypass valve counter-clockwise to
reduce the pressure and thus automatically reduce the amount of oil, or by closing valve to increase
pressure and oil flow.

Technical Data

Motor
Voltage
Frequency
Speed
Start Amperage
Run Amperage
Maximum Ambient Temperature
* Also available with totally enclosed fan cooled motor.

Discharge Adjustment

Lubricator is preset with bypass valve closed for maximum discharge of 132cc per minute
(110cc with a 50 cycle motor). With lubricator at normal operating temperature on machine, desired
discharge volume is obtained by adjusting the bypass to pre-calculated pressure on system pressure
gauge (see Bijur Engineering Manual). Pressure is limited internally to 130 psi by a relief valve.
System & Limitations
Use Type C control units. Viscosity range is 100 to 10,000 SSU at operating temperature.
See Bijur Engineering Manual for system limitations.

Startup Instructions

1. Fill reservoir with oil.
2. Start machine and see that oil flows at all bearings.
1
1/20 hp, NEMA Frame L330, totally enclosed, non-ventilated*
115 VAC
60/50 Hz
1725/1425 rpm (60/50 Hz)
2.3/2.5 amp
0.78/0.67 amp (60/50 Hz)
104°F (40°C)
Use clean oil only of the type and viscosity
recommended by machine manufacturer.
Replace filter group annually.
