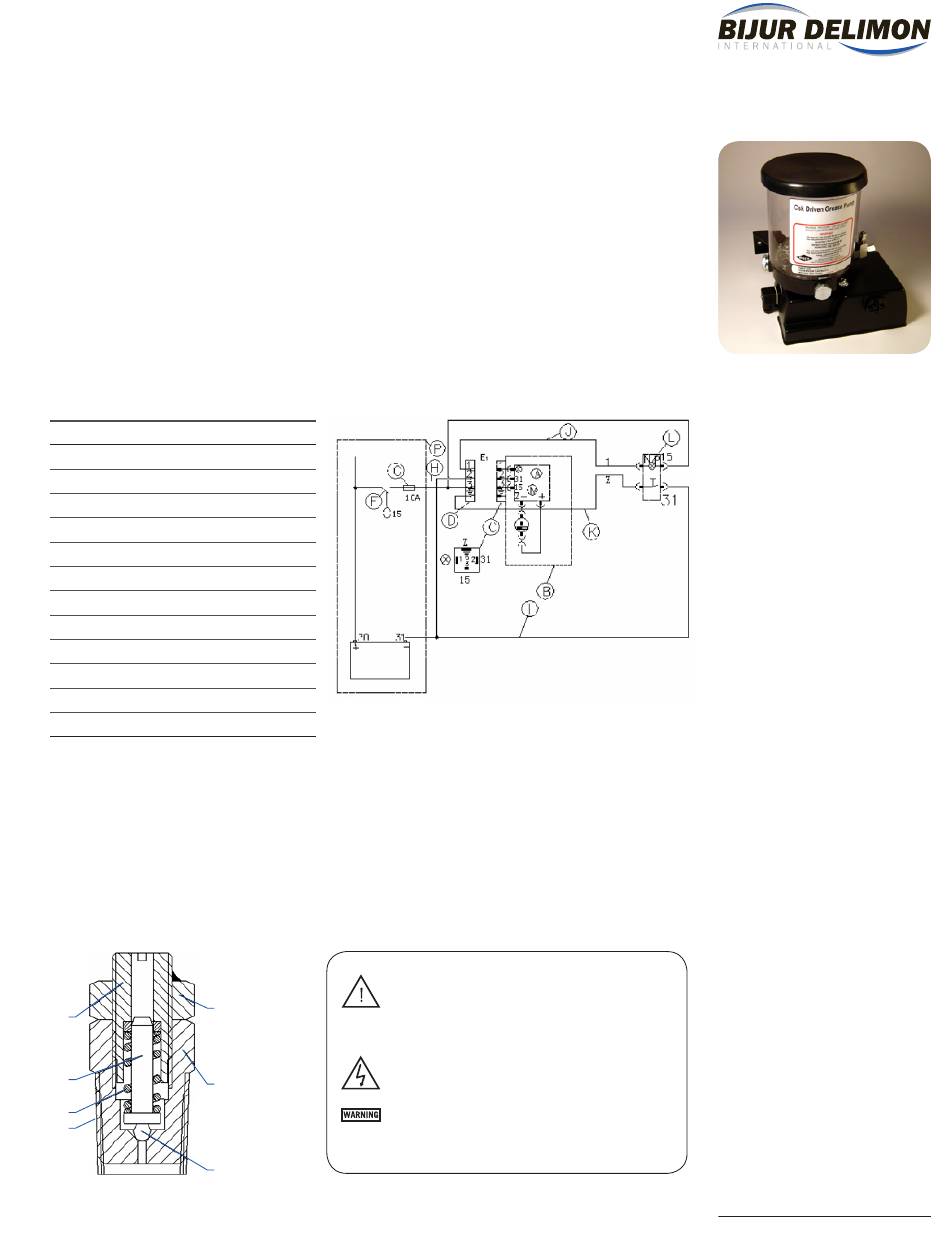

Bijur Delimon CSK Instructions

CSK Automatic Lubricator
motor-driven Grease Pump
General Description
The bijur delimon CSK lubricator is designed for grease lubrication and is driven by a dC motor, it is
ideal for single line systems. There is a built-in controller which controls the pump to delivers the
rated amount of lubricant to the lubrication point at the right time. Each pump outlet has an over
pressure protection valve and each outlet can support a lubrication system independently.
Operation
CSK grease pump is driven by a dC motor, it drives a worm and worm wheel which in turn rotates the
an eccentric wheel which drives the piston back and forth, the lubricant is drawn into the pump body
and is then discharged at the outlet.
A Controller
B Pump housing
C din connector
D din connector
E1 Pump without illuminated push button
F driving switch
G Fuse (10A)
H Cable
I Cable (option)
J Cable (option)
K Cable (option)
L illuminated push button (option)
P user
Principle of Over Pressure Valve
The over pressure valve will open when the system pressure is over 25mpa (factory setting).
Adjusting screw (1) drives the spring (3) to press steel ball (6) through pole (2). when the system
pressure goes up to 25mpa, pressurized lubricant will push the steel ball (6) from the bottom of valve
body (5), then the lubricant will exit through the hole in the adjusting screw. This can protect the
pump internals from braking if the distributon system becomes clogged or is over pressurized.
4
1
2
5
3
Z1/4
6
1
before installing or operating this product, please
read this manual carefully. Failure to follow instructions
can result in damage to the product and/or serious
bodily injury.
before performing service to product, always turn off
and disconnect electrical power.
when connecting product, make sure that unit is
securely and adequately grounded. Failure to ground
properly may cause serious injury.
BIJUR DELIMON INTERNATIONAL
(919) 465 4448 LOCAL
(800) 631 0168 TOLL-FREE
(919) 465 0516 FAX
www.bijuRdELimOn.COm
2100 Gateway Centre blvd., Suite 109
morrisville, nC 27560
34485 • R3 09/09
