INSTALLATION MANUAL

Level of Difficulty

Easy

Weight Capacity

Gross trailer weight (GTW)
Tongue weight (TW)

Parts List

Item Qty Description
1 1 Trailer ball assembly
2 1 Anti-rotation base plate
3 1 Lock washer, 1"
4 1 Hex nut, 1"
Ball mount sold separately

Tools Required

Torque wrench Socket

Torque Specifications

1" bolt 250 ft-lbs.
Use above torque setting unless otherwise noted

Product Registration

CURT Group stands behind our products
with industry-leading warranties. Provide
feedback and help us to improve our
products by registering your purchase at:
warranty.curtgroup.com/surveys
NOTICE
Before you begin installation,
read all instructions thoroughly.
Proper tools will improve the quality of
installation and reduce the time required.
Ensure the trailer ball shank diameter
corresponds with the ball mount hole size.
Ensure the trailer ball size matches
the trailer coupler. If they do not,
the trailer could become uncoupled.
To help prevent damage to the
product or vehicle, refer to the specified
torque specifications when securing
hardware during the installation process.
RockerBall should be greased prior to initial
™
use and periodically as described in step 3.
CURTMFG.COM
• NEED ASSISTANCE?
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of
the trailer ball are intended to represent the capability of the product and in no way reflect
the ratings or capacity of the towing system it is being used with. The consumer or
operator are strongly advised to know the ratings of the various components of the
towing system and never exceed the limits of the lowest rated component being used.
7,500 lbs.
Use of any pin other than what is provided by the manufacturer
750 lbs.
could be a serious safety hazard and will void the warranty.
Ensure that the safety chains operate freely around the trailer ball
system and do not become entangled in the trailer ball system.
If the ball is ever able to move with minimal force by hand more than five degrees
from the vertical position, the product must be replaced. Use of a heavily worn
or damaged trailer ball assembly may result in the trailer becoming separated
from the vehicle. Consult CURT Product Support if you have any questions.
Periodically check the hex nut and ensure it is tightened to the correct torque specifications.
Before every use, be sure the snap ring on the pivot pin
of the trailer ball assembly is in place and properly seated.
Immediately discontinue product use if the snap ring is missing on the end of the trailer ball
pivot pin or if the trailer ball pin has backed partially out of the trailer ball assembly.
Do not use the trailer ball on ball mounts that do not have a flat mounting
surface. The trailer ball assembly and anti-rotation base plate must fully
contact the ball mount when the hex nut is torqued to the listed specification.

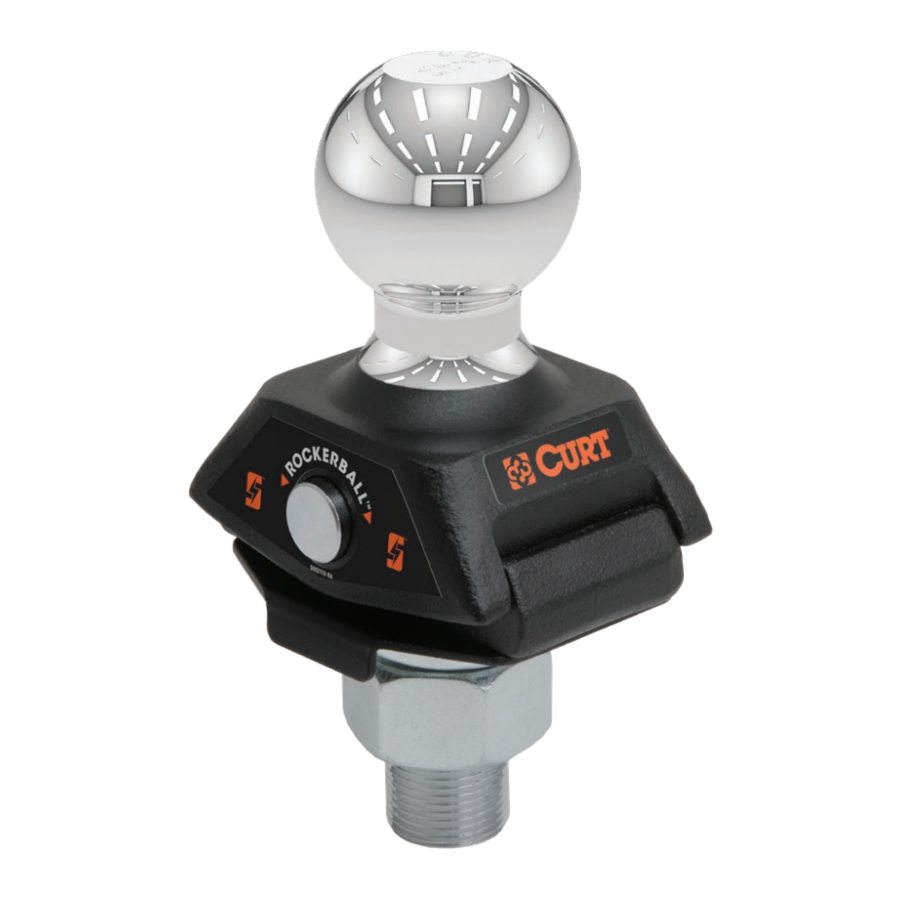

Product Photo
• 877.287.8634 • 40247-INS-RD • PAGE 1
40247
