INSTALLATION MANUAL
This is the first of two manuals
required to complete this installation.
The second manual is included with
your side bars / running boards.
Level of Difficulty
Easy
Parts List
2
Front mounting bracket
1
Rear mounting bracket
1
Thread forming screw, 3/8"
3
Bolt retainer
7
Flat washer, 5/16"
4
Lock nut, M8
3
T-bolt, M8
3
Hex nut, M8
3
Lock washer, M8
Tools Required
Ratchet
Torque wrench
Socket set
Wrench set
Socket extension
--
Torque Specifications
3/8" bolt
25 ft-lbs.
M8 bolt
20 ft-lbs.
Use above torque setting unless otherwise noted
LUVERNETRUCK.COM
•

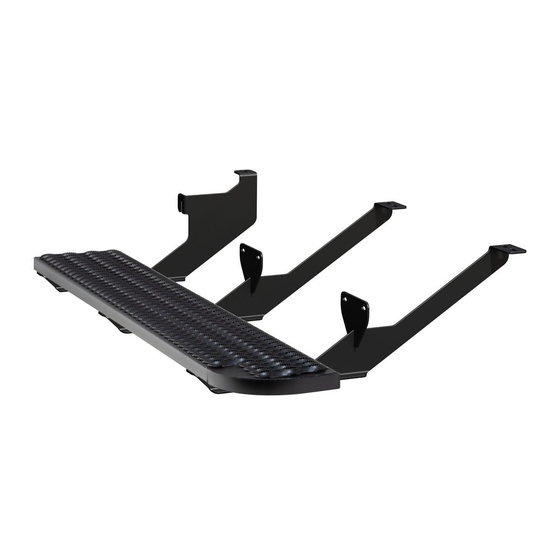

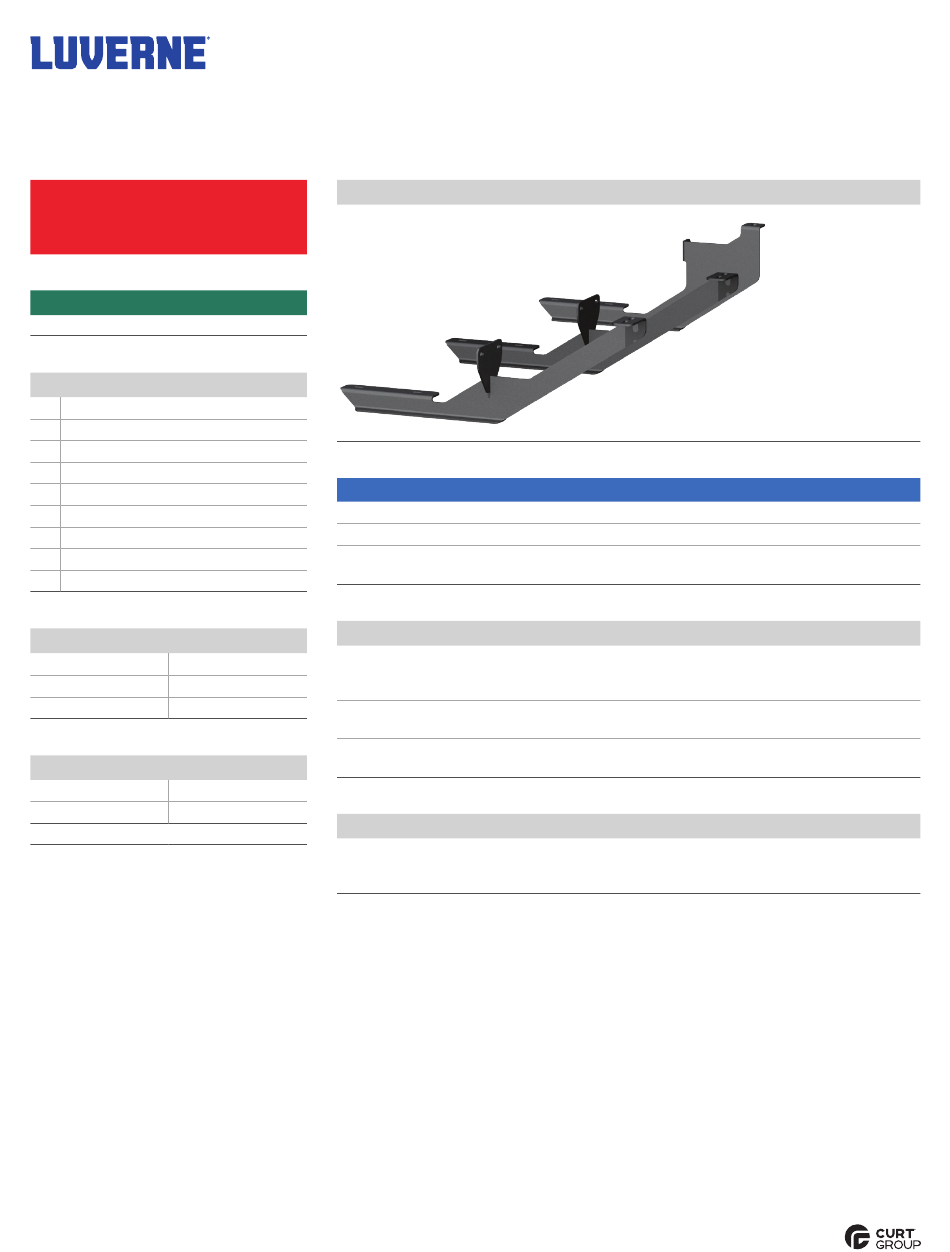

Product Photo
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
NEED ASSISTANCE?
•
877.287.8634
Front
•
401801-INS-RA
•
PAGE 1
401801
Rear
