- Page 1 ® CHEM-PRO SERIES C2F / C3F Operating Manual ProSeries ProSeries T WO-YEAR WARRANTY by Blue-White Ind. 5300 Business Drive, Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com | techsupport@blue-white.com URL: www.Blue-White.com...
-
Page 2: Table Of Contents
Page 2 ® CHEM-PRO C2F/C3F Introduction 1.1 Available Models Specifications 2.1 Materials of Construction Features 3.1 Agency Listings Installation 4.1Mounting Location 4.2 Dimensions 4.3 Installation Injection Fitting and Strainer Power Connections 5.1 Wiring Terminal and I/O Schematics How to Operate Chem-Pro - Control Pad Set Remote Start/Stop 7.1 Set FVS (Flow Verification Sensor) Manual Operation... -
Page 3: Introduction

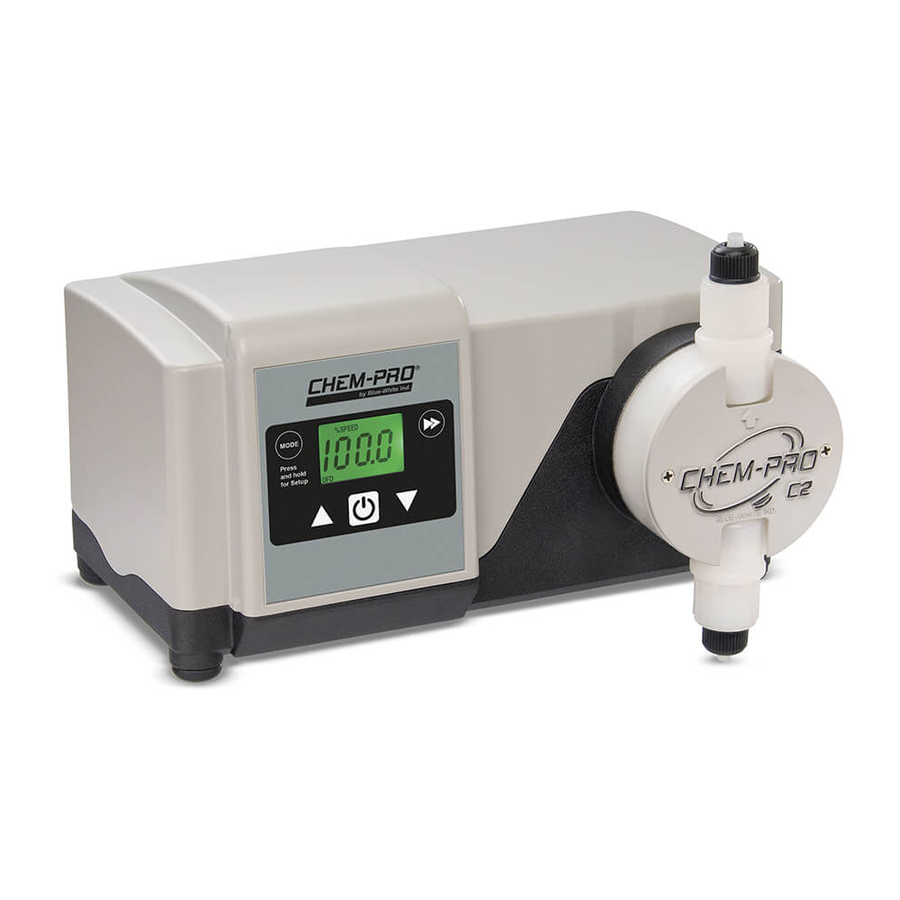

Page 3 ® CHEM-PRO C2F/C3F Introduction Congratulations on purchasing Chem-Pro® variable speed Diaphragm Metering Pump. A diaphragm pump is a type of positive displacement pump used for pumping a variety of fluids. Your Chem-Pro® pump is pre-configured for diaphragm, pump head and fittings that shipped with your metering pump. -
Page 4: Specifications
Page 4 ® CHEM-PRO C2F/C3F Specifications Maximum working pressure*: Motor: 175 psig (12 bar), *model specific Brushed DC, 1/8 H.P. Note: see individual pump model maximum pressure ratings. Duty cycle: Maximum Fluid temperature (excluding pump tubes) Continuous 130 F (54 C) Motor speed adjustment range 100:1: Note: see individual pump tube assembly maximum temperature ratings. -
Page 5: Features
CNC precision machined cam and piston for optimum efficiency, unparalleled accuracy, and linearity. Heavy duty PVDF pump head and valves are standard. Compatible with Blue-White’s output Flow Verification Sensor (FVS) system. Agency Listings This pump is ETL listed to conforms to the following: UL Standard 778 as a motor operated water pump CSA Standard C22.2 as process control equipment... -
Page 6: Installation
Page 6 ® CHEM-PRO C2F/C3F Installation CAUTION Risk of chemical overdose. Be certain pump does not overdose chemical during backwash and periods of no flow in circulation system. CAUTION Always wear protective clothing, face shield, safety glasses and gloves when working on or near your metering pump. -
Page 7: Installation Injection Fitting And Strainer
Page 7 ® CHEM-PRO C2F/C3F Installing Injection Fitting and Strainer CAUTION Proper eye and skin protection must be worn when installing and servicing pump. CAUTION This Pump Has Been Evaluated for Use with Water Only. ½” (1.3cm) I.D. Wetted Connection Models; Injection Fitting and Strainer Discharge Injection Fitting / Check Valve) Suction Strainer Pipe... -
Page 8: Power Connections
Page 8 ® CHEM-PRO C2F/C3F Power Connections WARNING Risk of electric shock – cord connected models are supplied with a grounding conductor and grounding-type attachment plug. To reduce risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle. WARNING Electrical connections and grounding (earthing) must conform to local wiring codes. -
Page 9: Wiring Terminal And I/O Schematics
Shielded cables should be used on all input signal wires. FUNCTION BLOCK DIAGRAM TERM PIN # RATING ELECTRICAL SP. INPUT: (+) POSITIVE PWR (+) RED (+) FVS SYSTEM BLUE-WHITE SIGNAL (FLOW VERIFICATION FVS SENSOR BARE SIGNAL GND (-) SENSOR) FV SENSOR ONLY BLACK (-) (-) NEGATIVE INPUT:... -
Page 10: How To Operate Chem-Pro - Control Pad
Page 10 ® CHEM-PRO C2F/C3F How to Operate Chem-Pro® - Control Pad Press and release Press UP arrow to increase pump speed (output) in Manual Operation. To increase value while in programming mode. Press and release Press DOWN arrow to decrease pump speed (output) in Manual Operation. -
Page 11: Set Remote Start/Stop
Page 11 ® CHEM-PRO C2F/C3F Set Remote Start / Stop Used to remotely start and stop pump using a dry contact closure signal. When activated; CLOSE = START and OPEN = STOP. Set to NO = Remote Start / Stop is disabled Set to Yes = Remote Start / Stop is enabled Can be used with external foot pedal, PLC, contact closure or other similar external devices. -
Page 12: Set Fvs (Flow Verification Sensor)
Page 12 ® CHEM-PRO C2F/C3F Set FVS (flow verification system) Flow verification sensor sold separately. Flow verification system is designed to stop pump in an event sensor does not detect flow during pump operation. Indicating an empty chemical tank, clogged injection fitting, loose tubing connection, etc. To allow pump to clear any gasses that may have accumulated over time, an alarm delay time value from 1 to 255 seconds must be programmed. - Page 13 C3V | Diaphragm Metering Pump Program MODE Minimum Maximum PRIME Blue-White Ind. IP66 Made in the USA NEMA 4X Confirm FVS flow range - Flow Verification Sensor (FVS) will only function within its operating range. See chart for available ranges.
-
Page 14: Manual Operation
Page 14 ® CHEM-PRO C2F/C3F Manual Operation Used to manually control speed of pump. Use UP and DOWN arrows to adjust speed while pump is running. To select exact run speed, follow steps below. Runtime Screen Shot 1 Displays motor speed percentage. 35.0 SPEED Pump Running in Manual Operation... -
Page 15: Dfd (Diaphragm Failure Detection)
Page 15 ® CHEM-PRO C2F/C3F DFD (Diaphragm Failure Detection) Chem-Pro® is equipped with a Diaphragm Failure Detection System which is designed to stop pump and provide an output alarm in event diaphragm should rupture and chemical enters pump head. Pump will detect a chemical with a conductivity reading greater than 500 microsiemens. -
Page 16: Alarm Relay
MODE Minimum 6. Place suction tubing with Footvalve / Strainer installed back into graduated Maximum PRIME Blue-White Ind. IP66 Made in the USA NEMA 4X cylinder. 7. Run injector for a measured amount of time. A longer testing time will Suction produce more accurate results. -
Page 17: Pump Maintenance
Page 17 ® CHEM-PRO C2F/C3F 12.0 Pump Maintenance CAUTION Prior to service, pump clean water through pump and suction / discharge line to remove chemical. Always wear protective clothing, face shield, safety glasses and gloves when working on or CAUTION near your metering pump. -
Page 18: Motor Brush Replacement
Page 18 ® CHEM-PRO C2F/C3F 12.3 Motor Brush Replacement Brushes wear differently on each side of motor. It is recommended to replace both brushes at the same time. Top Cover Brush Brush Cap (2) Replacement Brush Kit P/N: C2/C3 72000-378 Extra set of brushes Bottom... -
Page 19: Output Versus Pressure
Page 19 ® CHEM-PRO C2F/C3F 13.0 Output Versus Pressure Micro Diaphragm, Max 150 PSIg / 10.3 bar 13.1 C2 Output V. Pressure Feed Rate LPH PSIg (Bar) Model: C2x2x5 11.4 15.1 18.9 175 (12.0) 166 RPM 150 (10.3) Small Diaphragm .040”... -
Page 20: Replacement Parts List
Page 20 ® CHEM-PRO C2F/C3F 14.0 Replacement Parts List 14.1 C2 Parts List ITEM PART NO. DESCRIPTION QTY REQ. 90011-081 SCREW 6-32 X .5 90001-170 COVER P/H C2 90001-171 COVER P/H NO LOGO 90011-181 SCREW 10X32 X 1.25 71010-446 P/HEAD MICRO C2 PVDF 90002-273 P/HEAD SM C2 PVDF 90002-272... -
Page 21: C3 Parts List
Page 21 ® CHEM-PRO C2F/C3F 14.2 C3 Parts List ITEM PART NO. DESCRIPTION QTY REQ. 90011-081 SCREW 6-32 X .5 90001-157 COVER P/H C3 90001-158 COVER P/H C3 NO LOGO 90011-181 SCREW 10X32 X 1.25 90011-094 WASHER #10 P/H SS 90002-258 P/HEAD LG C3 PVDF 70001-349... -
Page 22: Typical Installation
Page 22 ® CHEM-PRO C2F/C3F Typical Installation Discharge Tubing Injection / Check Valve CHEM-PRO C3V | Diaphragm Metering Pump Program MODE Minimum CHEM-PRO Maximum PRIME Blue-White Ind. IP66 Made in the USA NEMA 4X Suction Tubing Chemical Tank Foot Valve... -
Page 23: Warranty
The warranty status is determined by the pump's serial label and the sales invoice or receipt. The serial label must be on the pump and be legible. The warranty status of the pump will be verified by Blue-White Industries, Ltd. or a factory authorized service center. - Page 24 Contact your local waste recovery agency for a Designated Collection Facility in your area. ProSeries by Blue-White Ind. 5300 Business Drive, Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com or techsupport@blue-white.com URL: www.blue-white.com P.N. 80000-514 Rev. 21 20210330...
