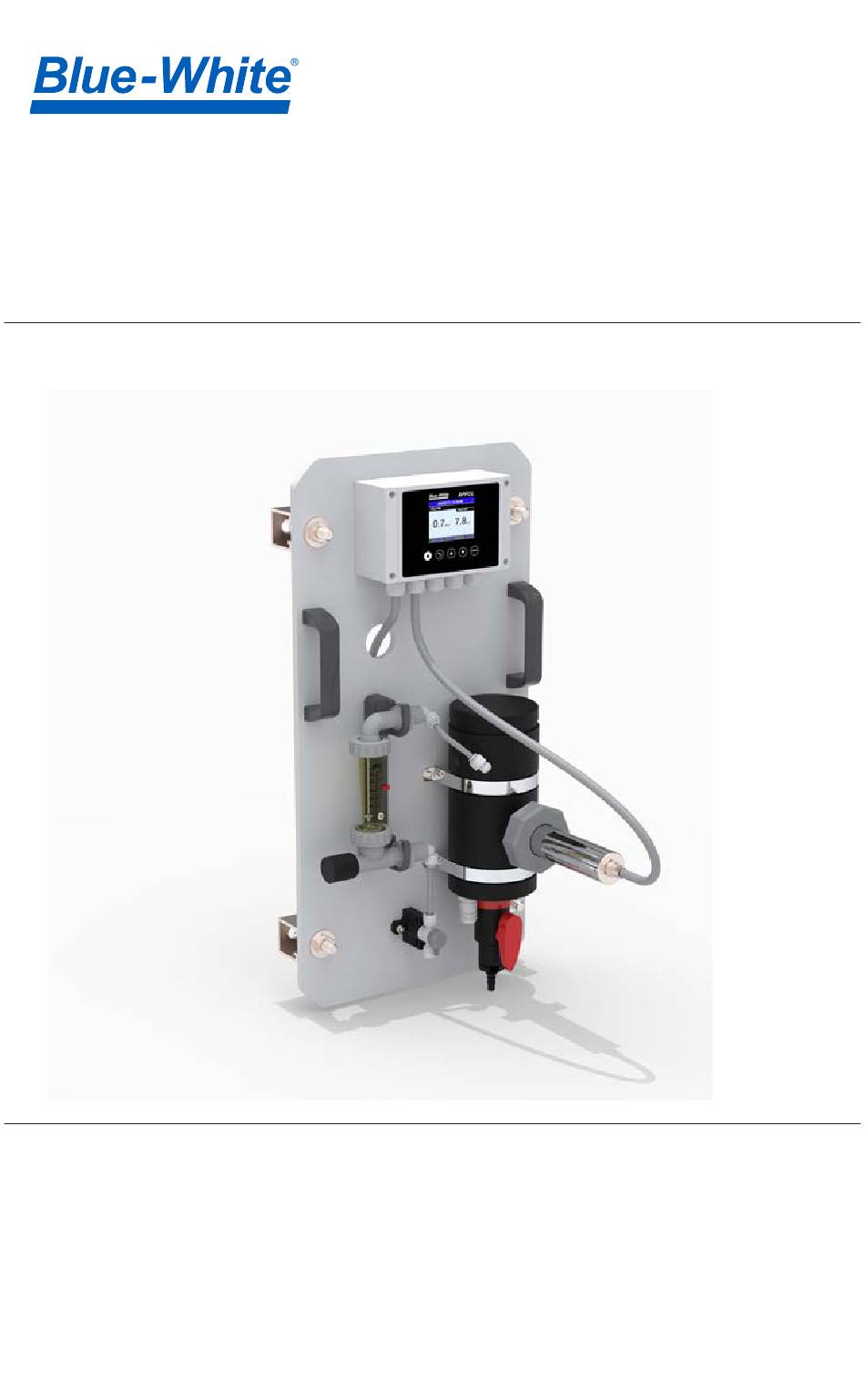

- Page 1 Quick Start Guide APFCL Free Chlorine / Turbidity Analyzer Panel...
- Page 2 Congratulations on your purchase on a APFCL Chlorine analyzer! The APFCL Analyzer Panel is specifically designed as a ‘Turn-Key’ monitor- ing solution for clean water applications including drinking water networks, secondary water supply and decorative/swimming water applications. The APFCL series offers highly accurate, real-time measurement, display...
-
Page 3: Pre-Installation
Follow these instructions before installing your analyzer to avoid failure. Read this guide and Instruction Manual before using. CAUTION The APFCL is designed to be installed and operated by qualified personnel only. Please note that warranty coverage does not include damage due to misuse or improper installation. -
Page 4: Installation Requirements
Outlet Line: Connect 3/4” ID tubing to the outlet drain. This is the sample water outlet flow. This line must be diverted to drain. Wall Mount Space: The APFCL analyzer panel size is roughly 12” H x 24” W x 10” D in dimension. Please accommodate sufficient space for mounting. The panel is equipped with pre-installed rear unistrut for simple wall mounting. -
Page 5: Installation
INSTALLATION Step-By-Step Measure Use the provided drawing dimensions to determine best mounting location of panel. Measure wall and locate mounting holes. Panels should be mounted at an elevation to allow for easy access to control unit. Wall Mount Weight: 45 lbs Install Strut Use the provided strut and hardware to mount the panel. -
Page 6: Start-Up And Operation
Start-Up and Operation After the TS-05 is turned on, the main interface will display the chlorine residu- al, pH value, and temperature of the solution. The green dot indicates that the communication between the TS-05 and the probe is normal. To access other options, press the BACK Key and refer to Instruction Manual for more informa- tion regarding features and user management. -
Page 7: Engineering Specifications
Engineering Specifications Engineering Specifications Item APFCL Sensor Body Material 304SS Sensor Name FCL700 Chlorine Range 0.00-5.00 ppm, 0.00-10.0 ppm (Free or Total) Precision +/- 0.01mg/L or 1% of the value w/pH compensation to 9.0 pH Range 0-14 pH Precision 0.01 pH Sample Operating Temperature 40 –... -
Page 8: Warranty
Warranty service must be performed by the factory or an authorized service center. Contact APFCL is warranted for 1 year from the date of the factory or local repair center to obtain a purchase. RMA (Return Material Authorization) number.
