Operating Manual

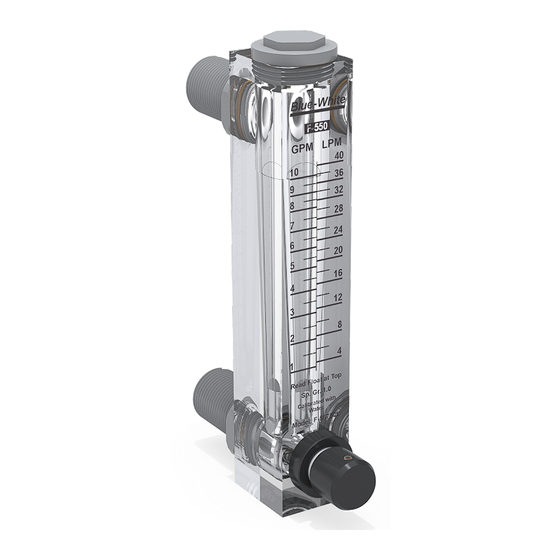

F-550 Flow Meter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-550 and is the answer not in the manual?

Questions and answers

Related Manuals for Blue-White F-550

Summary of Contents for Blue-White F-550

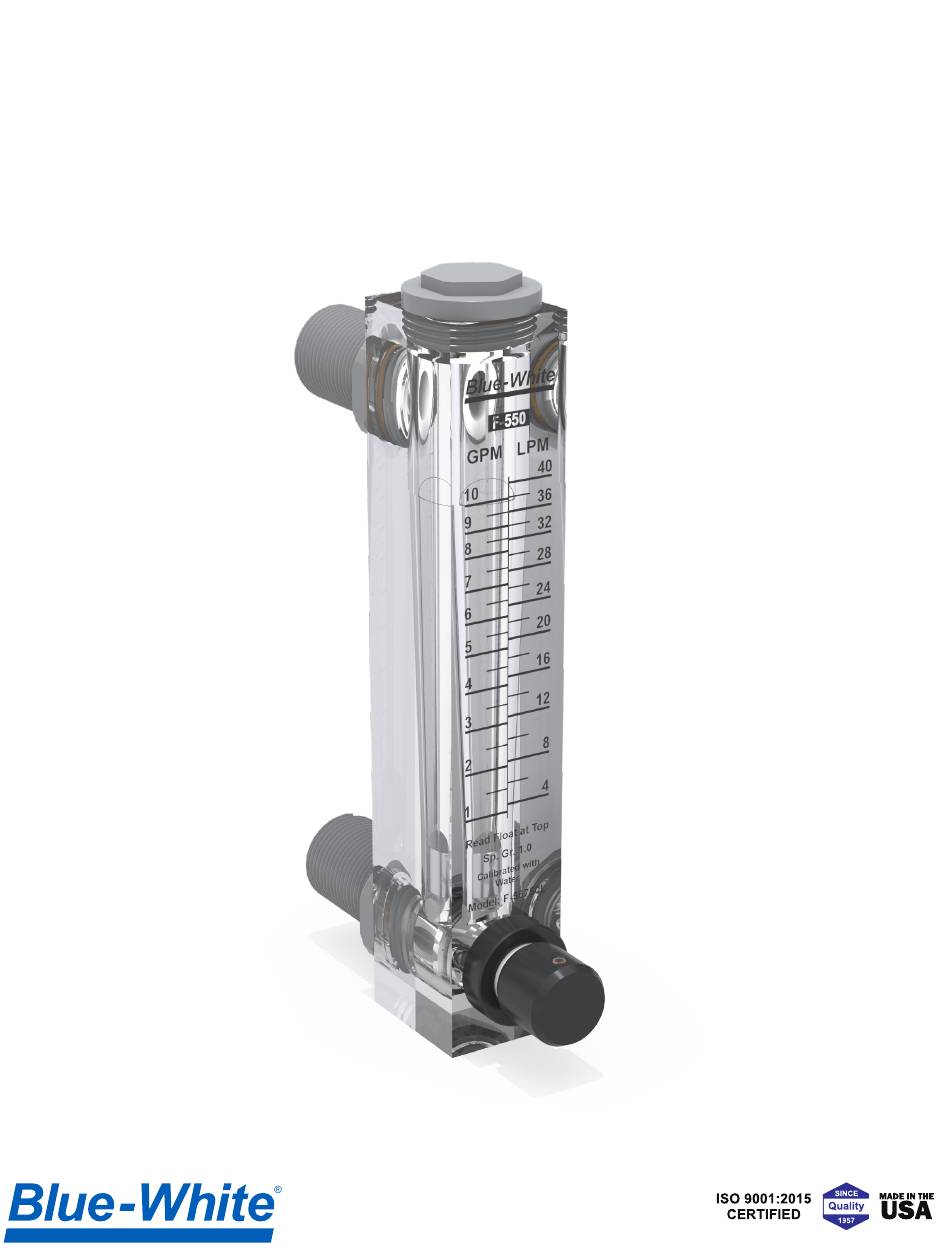

  • Page 1 Operating Manual F-550 Flow Meter...
  • Page 2 READ THE ENTIRE OPERATING MANUAL PRIOR TO INSTALLATION AND USE. +1 (714) 893 - 8529 sales@blue-white.com customerservice@blue-white.com 5300 Business Drive Huntington Beach, CA 92649...

  • Page 3: Table Of Contents

    Table of Contents 1.0 Introduction 1.1 What’s in the box 1.2 Features 1.3 Application Notes 1.4 Ordering Information / Product Matrix 2.0 Engineering Specifications 2.1 Flow Meter Specifications 2.2 Materials of Construction 2.3 Flow vs. Pressure Graph 2.4 Flow Specifications 2.5 Dimensions 3.0 Installation 3.1 Installation Requirements...

  • Page 4: Safety Information

    SAFETY INFORMATION Please read this manual completely before unpacking, installing, and operating this equipment. In particular, pay attention to all dangers, warnings, and precau- tions, otherwise, it may cause serious injury to the operator or damage to the equipment. Note: When in doubt regarding your electrical installation, contact a licensed electrician.

  • Page 5: Introduction

    • Upward flow, vertical installation only 1.3 Application Notes Although meters may be suitable for other chemicals, Blue-White cannot guarantee their suitability. It is the responsibility of the user to determine the suitability of the flow meter in their application. Flow meters are tested and...

  • Page 6: Engineering Specifications

    2.1 Flow Meter Specifications P.N. 83000-044 F-550 REV 9 20240306 5300 Business Drive, Huntington Beach, CA 92649 TEL 714-893-8529 | FAX 714-894-9492 | www.blue-white.com | sales@blue-white.com Maximum Working Pressure 250 psi (17.2 bar) @ 70 ˚F (21 ˚C) Maximum Fluid Temperature 200˚F (93 ˚C) @ 0 PSI...

  • Page 7: Materials Of Construction

    F-550 2.2 Materials of Construction Wetted Components: Meter Body Cast acrylic rod, Annealed Adapters Polypropylene Guide Rod Holder Polysulfone O-ring Seals Viton (optional EP) ® Float 316SS or PTFE (varies by model) Guide Rod 316SS Non-Wetted Components Bulkhead Nuts Polypropylene 2.3 Temperature vs.

  • Page 8: Dimensions

    F-550 2.5 Dimensions Non-Adjustable Adjustable Panel Mount Panel Mount Non-adjustable Panel Mount Pipe Size Mount Hole F-55250L (1/4”) 7-1/4” 2-1/2” 1-1/16” 5-5/8” 1-1/4” 9/16” F-55375L (3/8”) 8-3/8” 2-3/4” 1-11/32” 6-1/2” 1-1/2” 11/16” F-55376L (3/8”) 8-3/8” 2-3/4” 1-11/32” 6-1/2” 1-1/2” 11/16”...

  • Page 9: Installation

    F-550 3.0 Installation 3.1 Installation Requirements Before beginning installation, review your system flow and pressure to ensure your F-550 is proper for your system parameters. Pipe Requirements: • The flow meter is designed to work best when installed in a perfectly vertical pipe system.

  • Page 10: Installation Instructions

    F-550 3.3 Installation Instructions 1. The flow meter must be installed in a vertical plane to ensure accuracy. Prepare pip- ing and components per standard piping installation. 2. Use only PTFE tape on the threaded adapters. Pipe dope and glue will damage the me- ter body and fittings.

  • Page 11: Reading Your Flow Meter

    5.0 Maintenance and Troubleshooting • The F-550 Flow Meter requires very little maintenance. However, the flow meter may become clogged due to excess debris in the water. If this happens, simply shut of the process pump or valve and remove any pressure from the piping. If isolation valves are installed, shut these to minimize the amount of water that may leak.

  • Page 12: Spare Parts

    F-550 6.0 Spare Parts F-55005L Product F-5537-5L Qty. F-55010L Item F-55250L F-55500L F-55750L Name F-5537-6L Req. F-55015L F-55200L 76001-080 91001-032 91001-032 91001-033 91001-160 90003-072 90003-081 90003-081 90003-082 90003-079 O-ring (cap) 90007-634 90007-534 90007-534 90007-535 90007-606 Guide wire Float* Float stop...
  • Page 13 F-550 F-55005LA Product Qty. F-55375LA F-55010LA Item F-55250LA F-55500LA F-55750LA Name Req. F-55376LA F-55015LA F-55200LA 76001-080 91001-032 91001-032 91001-033 91001-160 90003-072 90003-081 90003-081 90003-082 90003-079 O-ring (cap) 76001-108 76001-109 76001-109 76001-110 76001-111 Guide wire Float* Float stop bottom* Body* O-ring...
  • Page 14 F-550...

  • Page 15: Warranty

    Blue-White is pleased to assist in this effort but does not guarantee the suitability of any particular product for any specific application as Blue-White does not have the same degree of familiarity with the application that the customer/end user has.
  • Page 16 P.N. 80000-349 F-550 Flow Meter REV 11 20240425 5300 Business Drive, Huntington Beach, CA 92649 TEL 714-893-8529 | FAX 714-894-9492 | www.blue-white.com | sales@blue-white.com...

This manual is also suitable for:

F-55250lF-55375lF-55376lF-55500lF-55750lF-55005l ... Show all
