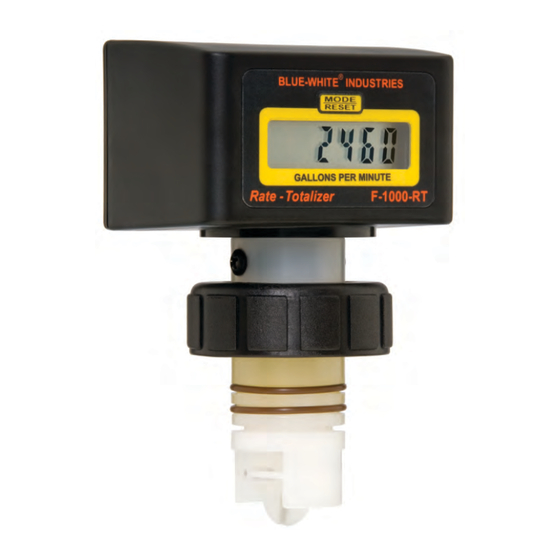

Blue-White F-1000 Instruction Manual
Hide thumbs Also See for F-1000:

Advertisement

Quick Links

F-1000
INSTRUCTION MANUAL
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blue-White F-1000

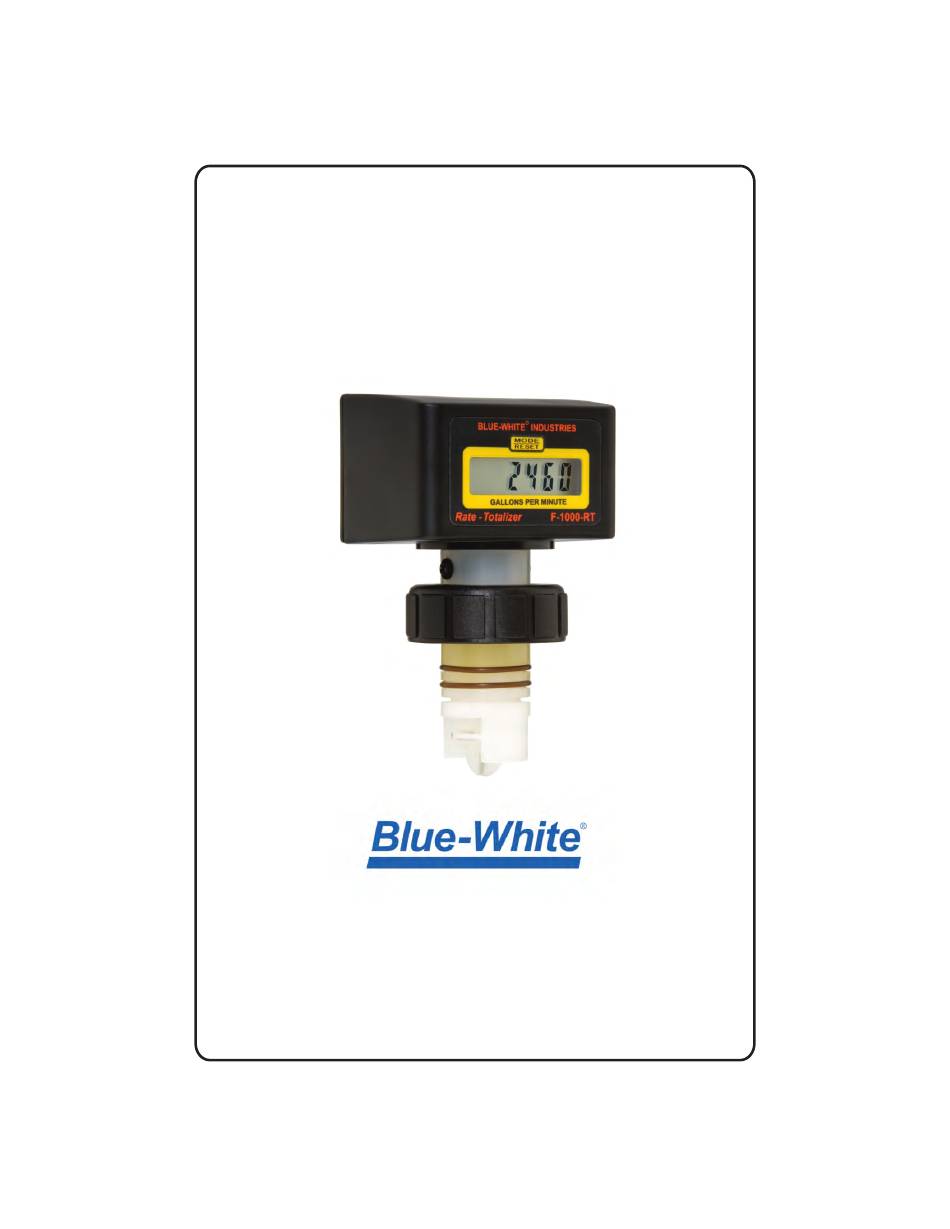

  • Page 1 F-1000 INSTRUCTION MANUAL GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2: Table Of Contents

    Two AAA batteries power the unit for up to one year. There are three models are available: F-1000-RB is a rate meter - designed to measure and display the rate of flow. F-1000-TB is a totalizer meter - designed to measure and display the total flow.
  • Page 3: Specifications

    F-1000 Page 3 SPECIFICATIONS Maximum Working Pressure*....300 psig / 20.7 bar Maximum Fluid Temperature*....200 F / 93.3 C - Saddle and sensor only 200 F / 93.3 C - When mounted on polypropylene inline units. 140 F / 60 C - When mounted on molded PVC tee units or PVC pipe.
  • Page 4: Features

    F-1000 Page 4 3. FEATURES No pressure drop Easy to read .35" high, six digit LCD display Weather resistant enclosure Installs quickly on existing pipe Corrosion resistant PVDF sensor, ABS enclosure Factory calibrated - nothing to program High accuracy Minimal maintenance required Large calibrated flow range *Temperature vs.
  • Page 5: How To Install The Meter

    Do not install the meter so that the LCD is in direct sunlight. The F-1000 can be mounted on horizontal or vertical runs of pipe (see figure 4, 5 and 6). Mounting anywhere around the diameter of vertical pipe is acceptable, however, the pipe must be completely full of water at all times.
  • Page 6: Pipe Flow Stream Requirements

    Pulsating, swirling and other disruptions in the flow stream will effect the meter’s accuracy. The F-1000 is factory calibrated to ± 2% of full scale rate reading. When measur- ing total flow, accumulated error over time must be considered. Accuracy is based on laboratory testing of nominal pipe dimensions.
  • Page 7 F-1000 Page 7 Fig. 4 Vertical Mount Horizontal Mount ® BLUE-WHITE INDUSTRIES MODE RESET Fig. 5 GALLONS PER MINUTE Rate - Totalizer F-1000-RT FLOW I.D. MINIMUM MINIMUM OUTPUT INPUT LENGTH LENGTH GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 8: How To Install Your Saddle Fitting

    Page 8 4.3 HOW TO INSTALL YOUR F-1000 SADDLE FITTING The F-1000 saddle is designed to mount on smooth schedule 40 IPS pipe, schedule 80 IPS pipe (ASTM-D-1785) , PN10 metric pipe or PN16 metric pipe (DIN 8062). The outside of the pipe must be clean, smooth and free of surface imperfections.
  • Page 9: Drill The Mounting Hole

    Select an area on the pipe as outlined in section 4.1. Be sure the surface area of the pipe is clean and smooth. Drill a 1-1/8" diameter hole through the pipe wall. The F-1000 meter can be installed up to 45 degrees from the top of the pipe. A hole saw kit is available from the factory, order part number 20000-062.
  • Page 10: Install The Sensor

    Threads (MPT). Select an area on the pipe as outlined in section 4.1. Install the F-1000 as you would any other plastic pipe fitting. Be sure the inlet and outlet fittings are aligned properly. Improper alignment of the fittings will put stress on the adapter connections and may cause leaking or fitting damage.
  • Page 11: How To Install Molded Pvc Tee Fitting

    4.5 HOW TO INSTALL MOLDED PVC TEE FITTINGS (TE) Select an area on the pipe as outlined in section 4.1. Remove the F-1000 sensor from the tee fitting. Do not glue the TEE while the sensor is installed. Install the F-1000 tee fitting as you would any other plastic pipe solvent weld (glue) fitting.
  • Page 12: How To Operate The Meter

    2.0 seconds resets the total to zero. This feature can be disabled -- see Fig. 12 below. Model F-1000-RT:The F-1000-RT is the rate and totalizer meter. The meter will display the flow rate amounts and the total flow amounts from .01 through 999999 in any engineering units.
  • Page 13: Flow Ranges

    Page 13 6.0 FLOW RANGES The F-1000 is factory calibrated to ± 2% of full scale rate reading. When measuring total flow, accumulated error over time must be considered. Accuracy is based on laboratory testing of nominal pipe dimensions. Your actual accuracy will vary based on your actual pipe I.D.
  • Page 14 Ceramic, titanium or nickel axles are available for corrosive and abrasive fluids. Although the F-1000 is designed to withstand outdoor conditions, a cool, dry location where the unit can be easily serviced is recommended. The life of the LCD display will be severely reduced when installed in direct sunlight.
  • Page 15: Maintenance

    Page 15 8.0 TROUBLESHOOTING Situation: Leaking Improper installation ......Solution: Page 8, section 4.3 Cause: Page 9, section 4.3.1 thru 4.3.4 Page 10, section 4.4, 4.5 Worn or damaged O-rings......Solution: Page 14, section 7.0 Situation: Moisture inside enclosure Condensation .........Solution: Page 14, section 7.0 Cause: Damaged panel gasket ......Solution: Page 14, section 7.0...
  • Page 16: Replacement Parts List

    Page 16 9.0 F-1000 PARTS LIST GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 17 Label F-1000-RB GPM 90012-199 Label F-1000-RB GPH 90012-200 Label F-1000-RB LPM 90012-201 Label F-1000-RB LPH 90012-202 Label F-1000-RB M H 90012-221 Label F-1000-TB overlay 90012-222 Label F-1000-RT overlay 76001-187 Housing F-1000 RBC-pipe-units Circuit board for model RB. Must specify pipe TBC-pipe-units Circuit board for model TB.
  • Page 18 Page 18 MOLDED IN-LINE BODY PARTS LIST Complete Kit Ordering Numbers Complete Kit Ordering Numbers Complete kits include: 1) Molded inline body fitting 1) Instruction manual ® BLUE-WHITE INDUSTRIES MODE RESET GALLONS PER MINUTE Rate - Totalizer F-1000-RT Pipe Fitting ®...
  • Page 19 Page 19 SADDLE PARTS LIST Replacement Part Numbers Item Part No. Description 90007-830 Alignment tool 91001-115 Saddle, 1-1/2” pipe (50mm) 91001-114 Saddle, 2” pipe (63mm) 91001-116 Saddle, 3” pipe (90mm) 76100-087 Saddle, 4” pipe (110mm) Saddle, 6” pipe (160mm) 76100-088 Saddle, 8”...
  • Page 20 BLUE-WHITE LIMITED WARRANTY Your Blue-White product is a quality product and is warranted for a specific time from date of purchase (proof of purchase is required). The product will be repaired or replaced at our discretion. Failure must have occurred due to defect in material or workmanship and not as a result of operation of the product other than in normal operation as defined in the product manual.
