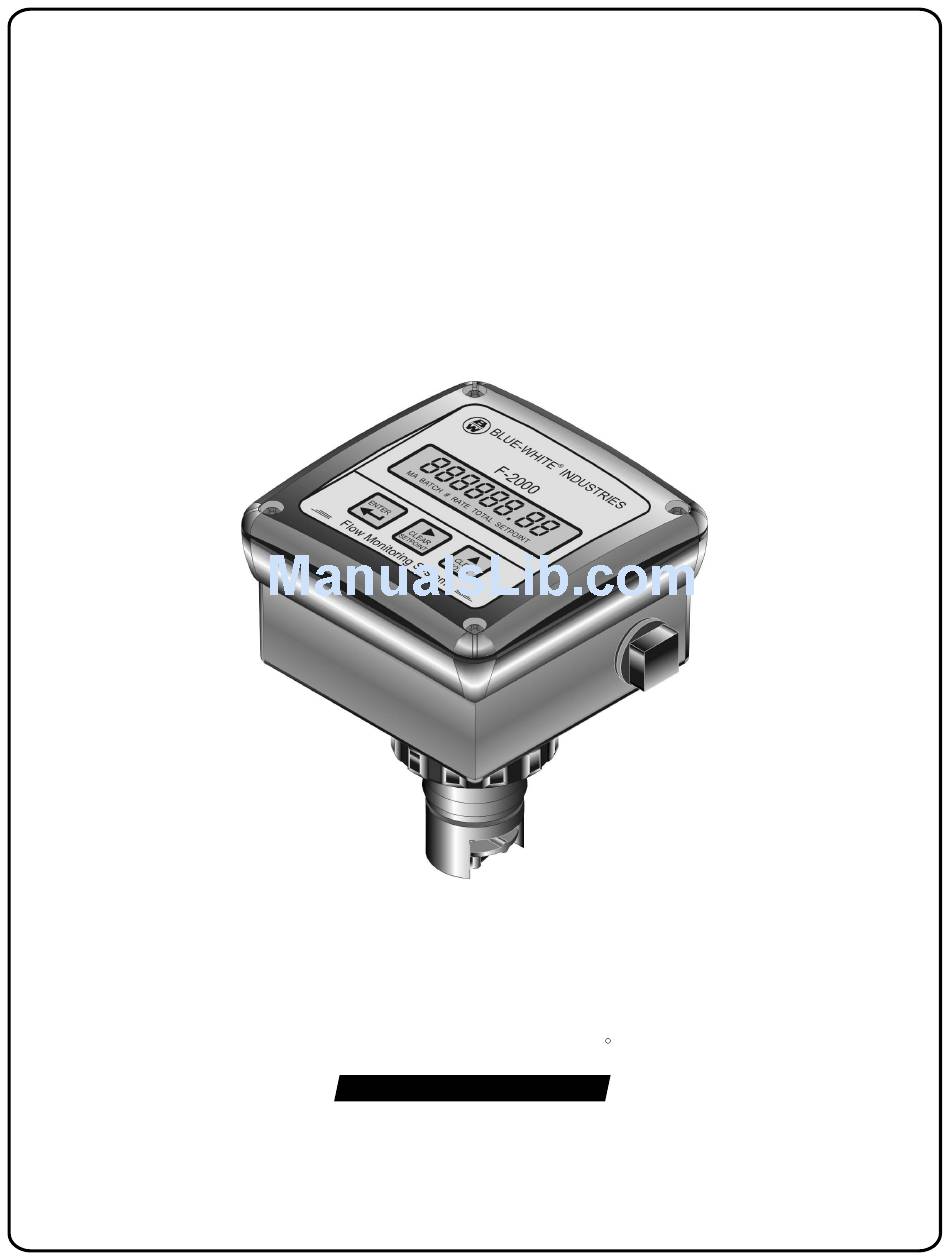

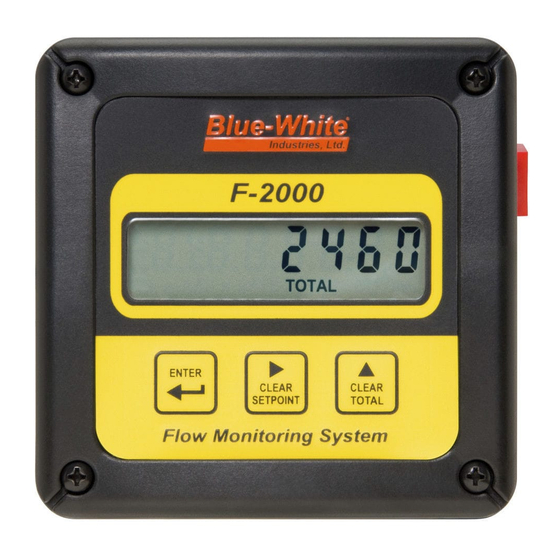

- Page 1 F-2000 PC and AO OUTPUT BOARDS INSTRUCTION MANUAL Blue-White Industries, Ltd. 5300 Business Drive Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com or techsupport@blue-white.com Website: www.blue-white.com...
-
Page 2: Enclosure Knock-Out Instructions
F-2000 Page 2 F-2000 Electrical Wiring Connections 1.1 Enclosure knock-out Instructions Option A: 1 / 2-14 MPT Red Cap Plug (for pipe fitting) Option A: Conduit Connection 1. Remove the red cap plug. 2. Install your pipe fitting (1/2 - 14 NPT male end). -
Page 3: Model Rt Circuit Board Wiring
Pulse input (bare wire from hall effect sensor) Open connector NPN positive (+) signal output pulse output NPN negative (-) signal output (from sensor) F-2000 RT Board Jumper Positions Backup Battery Connector F-2000 PC Board Jumper Not Jumper... - Page 4 (normally Closed Contact) Notes: (normally Open Contact) = Wire Nut (common Contact) 2. F-2000-pc Maximum Switching Loads: 8 AMPS (AC) @ 115VAC, 220VAC, 230VAC 50/60 Hz 7 AMPS (DC) @ 30 VDC (Resistive Load) 3. F-2000-pc Maximum Switching Voltages: 3-position...
- Page 5 F-2000 Page 5 1.5 Model AO Circuit Board Wiring CAUTION: DISCONNECT POWER SOURCE BEFORE SERVICING. Jumper Configuration Pin Header 3 position Output Jumper Settings (other side) jumper Pin Connect P1 & P2 (leave P3 open) (factory default), Max Load = 250 Ohms 4-20 Milliamp Connect P2 &...
- Page 6 F-2000 Page 6 HOW TO OPERATE THE MODEL PC 2.1 What Was The MODEL PC Designed To Do? In addition to the features of the MODEL RT, the model PC includes a single SPDT relay which can be used to switch an external component such as a pump, valve, alarm buzzer, etc., on and off in order to assist in the...
- Page 7 F-2000 Page 7 OPTION 1. RELAY SETPOINTS ARE ASSIGNED TO THE RATE MODE. When the setpoint mode selection screen is assigned to RATE, the following program screens are available: PROGRAMMING SCREEN PROGRAMMING SCREEN FUNCTION Setpoint - RATE - 1 High alarm flow RATE trigger value. (Factory default value = 000001) Setpoint - RATE - 2 High alarm flow RATE release value.
- Page 8 2.4 Programming the MODEL PC when the setpoints are assigned to rate. Caution: An emergency shut off switch for externally controlled electrical equipment is recommended. Note: The F-2000 must be powered by the AC Adapter. Note: While in the programming mode, if no buttons are pressed within twenty seconds, the programming mode is automatically exited without saving the input of the last screen.
- Page 9 F-2000 Page 9 00000 Step 3 Enter the High Alarm Release Value or 0. RATE SETPOINT ! Press to select the digit or decimal point to be changed. The selected digit will blink. CLEAR SETPOINT ! Press to change the selected digit. Note: This value must not be greater than the High Alarm Trigger Value.
- Page 10 F-2000 Page 10 2.5 Examples of Setpoint Assigned to Rate. Example 1: An audible alarm must sound when the flow rate goes out of the range of 25 to 35 gallons per minute. Alarm 35.0 Trigger 34.0 Release 26.0 Release 25.0...
- Page 11 F-2000 Page 11 Example 3: A solenoid valve must open if the flow rate goes above 225 gallons per minute. Open Valve Trigger Release Step 1 Set the SETPOINT MODE SELECTION SCREEN] to SETPOINT - RATE. Step 2 Set SETPOINT - RATE - 1, screen for a high trigger value of 225.
- Page 12 Example: a pump is turned on and off to fill containers to a preset amount of fluid. The fluid being pumped is also the fluid being measured by the F-2000. 1. The pump is wired to the normally open relay contacts of the F-2000. 2. Manually pressing the front panel “clear setpoints” button starts the batch by energizing the relay, which switches on power to the pump.
- Page 13 In this operation, the relay is used to switch a device, such as a valve or pump, that is controlling the flow being measured. Example: A solenoid valve is wired to the normally closed contact of the F-2000 relay. In the de-energized relay state, the valve is energized and open, which permits the flow being measured to flow. When the programmed batch amount is reached, the relay is energized, opening the relay circuit which closes the valve, and a time delay cycle begins.
- Page 14 F-2000 Page 14 2.6 Programming The MODEL PC When Setpoints Are Assigned To Batch Note: The F-2000 must be powered by the AC adapter. CAUTION: A SEPARATE EMERGENCY SHUT-OFF SWITCH FOR EXTERNAL EQUIPMENT IS RECOMMENDED. Step 1 Enter the programming mode and assign the setpoint to the BATCH mode.
- Page 15 F-2000 Page 15 2.7 Examples of Setpoint Assigned To Batch Example 1: Proportional feed application. A chemical feed pump must run for 3 seconds for every 12.57 liters of flow measured. Step 1 Set the SETPOINT MODE SELECTION screen to SETPOINT - BATCH.
- Page 16 ! 4-20mA or 10VDC output signal (factory default) selected via jumper pin located on the circuit board. 3.3 How Do I Program The MODEL AO? Note: The F-2000 must be powered by AC Adapter Note: The output signal can be inverted. Either the low or the high output signal may be assigned to the lower or...
- Page 17 F-2000 Page 17 Programming Menu Flow Chart MODIFYING DESCRIPTION SCREEN 000000 ENTER RATE 1 - Rate Scale Factor CLEAR CLEAR SETPOINT TOTAL RATE 00000 ENTER RATE 2 - Rate Decimal Factor CLEAR TOTAL RATE ENTER RATE 3 - Battery Save Mode On / Off...
-
Page 18: Warranty
Warranty ! Blue-White flowmeters are warranted to be free from defects in material and workmanship for 12 months from date of factory shipment. Warranty coverage is limited to repair or replacement of the defective flowmeter only. ! This warranty does not cover damage to the flowmeter that results from misuse or alterations, nor damage that occurs...
