- Page 1 F-2000 INSTRUCTION MANUAL Blue-White Industries, Ltd. 5300 Business Drive Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com or techsupport@blue-white.com Website: www.blue-white.com...
-
Page 2: Table Of Contents
7.4......Model FHXX and FCXX Sensor Wiring..12 8.0........Operation............13 8.1......Theory of operation........13 8.2......Model RT Operation........14 8.2.1....Model RT Applications........14 8.2.2....Model RT Features........15 8.2.3....How to Determine Calibration Constants..15 8.2.4....Programming the Model RT......18 8.2.5....Calibration Constants........20 8.3......Programming flow chart.........22 9.0........Maintenance..........23 9.1......F-2000 parts list..........24 9.2......F-2000 exploded view........25 9.3......Troubleshooting..........26... -
Page 3: Introduction

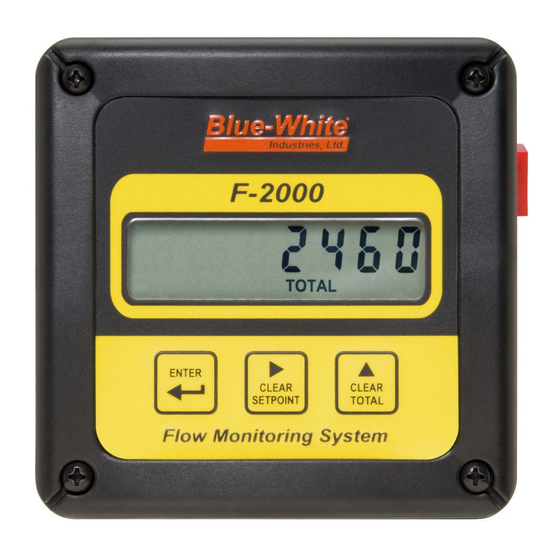

Page 3 INTRODUCTION TO THE F-2000 Congratulations on purchasing the F-2000 electronic flow meter. The F-2000 is designed to measure the flow of a fluid in a pipe. The meter is factory calibrated to any engineering units and displays the rate of flow or the total of flow on a 6 digit LCD display. -
Page 4: Specifications
F-2000 Page 4 SPECIFICATIONS Physical Maximum Working Pressure....300 psig (20.7 bar) Maximum fluid temperature.....200 F (93 C) - saddle and sensor only 200 F (93 C) - polypropylene and PVDF 140 F (60 C) - molded PVC tee units 140 F (60 C) - when mounted on PVC Ambient temperature range.....32 F (0 C) to 110 F (43 C) -
Page 5: Dimensional Drawing
F-2000 Page 5 Dimensional Drawing 4.00 in. (101.6 mm) ® BLUE-WHITE INDUSTRIES F-2000 8888.8888 4.00 in. (101.6 mm) MA BATCH # RATE TOTAL SETPOINT ENTER CLEAR CLEAR SETPOINT TOTAL Flow Monitoring System 3.25 in. (82.55 mm) Fig. 1... -
Page 6: Temperature Vs. Pressure Graph
F-2000 Page 6 Temperature vs. Pressure Temperature 200°F (93.3°C) 190°F (87.8°C) 180°F (82.2°C) 170°F (76.7°C) 160°F (71.1°C) 150°F (65.6°C) 140°F (60.0°C) 130°F (54.4°C) 120°F (48.9°C) 110°F (43.3°C) 100°F (37.8°C) 90°F (32.2°C) 80°F (26.7°C) 70°F (21.1°C) 0 (0) 60 (4.1) 120 (8.3) 180 (12.4) -
Page 7: Flow Ranges
F-2000 Page 7 FLOW RANGES Note: Due to increased wear on the paddle and axle, continuous operation at the upper 25% of the flow range is not recommended METRIC PIPES SADDLES - Standard Flow [Min - Max] Pipe Size LPM 1... -
Page 8: Mounting Options
F-2000 Page 8 MOUNTING OPTIONS Rotating Display Step 1: Remove Two Screws Step 2: Rotate 90° Step 3: Re-attach Screws Fig. 6 Angle Mount on Horizontal Pipe Recommended Vertical 45° Acceptable 45° Acceptable Fig. 7 Panel Mount .032 3.622 ±... - Page 9 F-2000 Page 9 Optional Pipe and Wall Mount Adapter Kit Wall Mount Screw Wall Mounting Display Base Module ® BLUE-WHITE INDUSTRIES F-2000 ENTER CLEAR CLEAR SETPOINT TOTAL Flow Monitoring System Wire to Wall Sensor Plug Screw Fig. 10 Clamp Pipe Mount...
-
Page 10: Electrical Wiring Connections
F-2000 Page 10 F-2000 Electrical Wiring Connections Enclosure knock-out Instructions Option A: Conduit Connection Option A: 1/2-14 MPT Red 1. Remove the red cap plug. Cap Plug (for pipe 2. Install your pipe fitting (1/2 - 14 fitting) NPT male end). -
Page 11: Model Rt Circuit Board Wiring
NPN positive (+) signal output (Max voltage: 30VDC, Max load: 15mA, 2k ohm Open connector pull-up recommended.) pulse output (from sensor) NPN negative (-) signal output Jumper F-2000 RT Board Positions Backup Battery Jumper Not Jumper Connector Installed (open) Installed... -
Page 12: Model Fhxx And Fcxx Sensor Wiring
F-2000 Page 12 Model FHXX and FCXX Sensor wiring Input Supply Voltage (+ 6 to 24 Vdc) Signal Output (square wave) BARE Ground (-) BLACK Model FHXX Note: Output type - current sinking type hall effect sensor (13.5mA max). Pull-up resistor is recommended. -
Page 13: Operation
HOW TO OPERATE THE F-2000 Theory of Operation The MODEL RT is the base unit of the F-2000 flow monitoring system. Fluid flowing through the pipe causes the paddlewheel to spin. Pulses generated by the spinning paddlewheel are counted and multiplied by scaling factors. The resulting flow rate amounts and total flow amounts are displayed on the LCD readout. -
Page 14: Model Rt Operation
F-2000 Page 14 How To Operate The MODEL RT 8.2.1 What Was The MODEL RT Designed To Do? ! Display the rate of flow up to eight digits. ! Display the total amount of flow up to eight digits. ! Output an open collector signal (NPN) that is proportional to the flow rate. -
Page 15: Model Rt Features
- see page 16, step 6.) 8.2.3 How Do I Determine My Calibration Numbers? When ordered as a complete system, the F-2000 MODEL RT is factory programmed to the flow range you specified when you placed your order. See section 4.0 for various flow ranges. - Page 16 F-2000 Page 16 Step 1 Where would you like your displayed flow rate decimal point located? Desired Location = D (Decimal Rate Factor) Note: Four decimal places max. XXXXX XXXX.X XXX.XX XX.XXX 1000 X.XXXX 1000 Enter your D here. Step 2 What time factor would you like to use in your measurement?
- Page 17 F-2000 Page 17 Step 4 Calculate your Rate Scale Factor (S ) using the following formula. D from Step 1, Seconds from Step 2, K-Factor from Step 3. Example: D x Seconds 10 x 3600 = 10 K-Factor 63.52 36000 Seconds = 3600 63.52...
-
Page 18: Programming The Model Rt
F-2000 Page 18 8.2.4 How Do I Program The MODEL RT? Note: While in the programming mode, if no buttons are pressed within twenty seconds, the programming mode is automatically exited without saving the input of the last screen. See page 18 for programming menu flow chart. - Page 19 F-2000 Page 19 000000 Step 4 The Total Scale Factor screen is selected. TOTAL ! Enter the Total Scale Factor (S from Step 7, page 14). ! Press CLEAR to select the digit to be modified or the decimal point.
-
Page 20: 8.2.5 Calibration Constants
The values in the following tables are based on laboratory testing of nominal pipe dimensions. The F-2000 sensor is factory calibrated to ±1% of full scale linearity. Your actual accuracy will vary based on your pipe I.D. And other installation factors. - Page 21 F-2000 Page 21 Molded Inline Bodies (Male NPT connection) - continued 1-1/2” - 2” pipe sizes - GPM (gallons per minute) RATE 1 RATE 2 TOTAL 1 TOTAL 2 Pipe Size Flow Range K-Factor Rate Scale Factor Rate Display Total Scale Factor Total Display Pipe Sch.
-
Page 22: Programming Flow Chart
F-2000 Page 22 Programming Menu Flow Chart MODIFYING BUTTONS DESCRIPTION SCREEN 000000 ENTER RATE 1 - Rate Scale Factor CLEAR CLEAR RATE SETPOINT TOTAL 00000 RATE 2 - Rate Decimal Factor ENTER CLEAR RATE TOTAL ENTER RATE 3 - Battery Save Mode On / Off... -
Page 23: Maintenance
Ceramic, titanium or nickel axles are available for extreme corrosive environments. Although the F-2000 is designed to withstand outdoor conditions, a cool, dry location where the unit can be easily serviced is recommended. The life of the LCD display will be severely reduced when installed in direct sunlight. -
Page 24: F-2000 Parts List
Enclosure F-2000 sensor mount 76001-150 Enclosure F-2000 panel mount 90006-593 Gasket F-2000 1/4 DIN panel mount 90008-331 Cap plug P-48 1/2 NPT red F-2000 71000-294 Kit F-2000 1/4 DIN panel mount 70000-500 Connector liquid-tight 1/2 in. 70000-589 Connector liquid-tight 3/4 in. -
Page 25: F-2000 Exploded View
F-2000 Page 25 90008-254 Battery clip 90010-233 Battery holder F-2000 4x AA 90008-330 Battery alkaline AA 90008-336 Power supply 115VAC/15VDC 90008-337 Power supply 220VAC/15VDC Europe 71000-310 Power supply 230VAC/15VDC F-2000 Exploded View H I T ® I N D I E S... - Page 26 F-2000 Page 26 TROUBLESHOOTING Situation Cause Solution Leaking Improper installation Pipe Fitting Manual pages 6 - 10 Worn or damaged o-rings Pipe Fitting Manual pages 6 - 10 Flow rate Improper installation Pipe Fitting Manual page 6 reading Improper velocity profile...
- Page 27 F-2000 Page 27 This page intentionally left blank.
- Page 28 12 months from the date of factory shipment. Warranty coverage is limited to repair or replacement of the defective flowmeter only. Blue-White Industries does not assume responsibility for any other damage that may occur.
