Summary of Contents for Blue-White F-300M

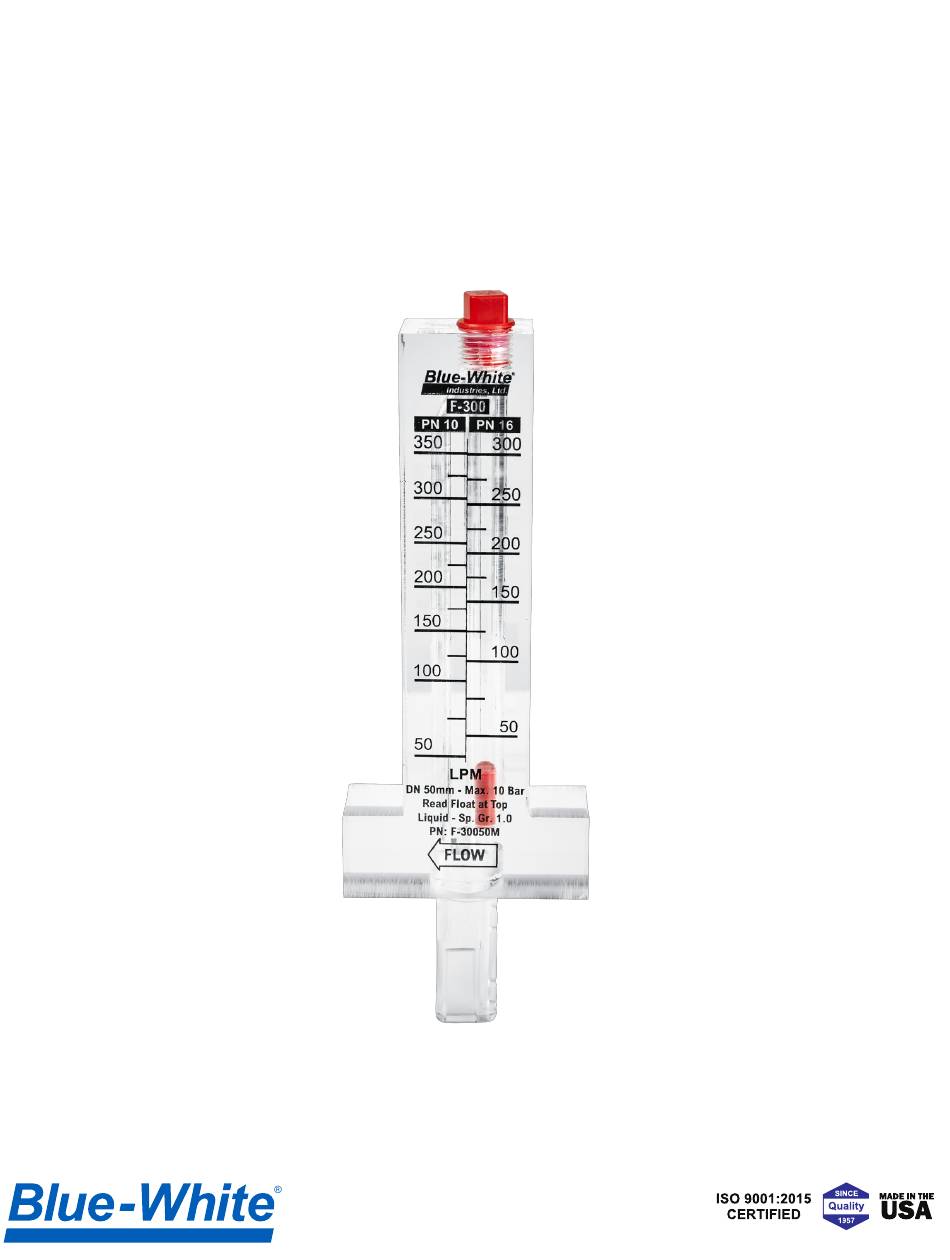

- Page 1 Operating Manual F-300M Flow Meter...
- Page 2 READ THE ENTIRE OPERATING MANUAL PRIOR TO INSTALLATION AND USE. +1 (714) 893 - 8529 sales@blue-white.com customerservice@blue-white.com 5300 Business Drive Huntington Beach, CA 92649...
-
Page 3: Table Of Contents
Table of Contents 1.0 Introduction 1.1 What’s in the box 1.2 Features 1.3 Ordering Information / Product Matrix 2.0 Engineering Specifications 2.1 Materials of Construction 2.2 Flow Specifications 2.3 Dimensions 3.0 Installation 3.1 Installation Requirements 3.2 Tools Required 3.3 Installation Instructions 3.4 Optional F-300S / F-300SL Flow Switch 3.5 Typical Installation with Flow Switch 4.0 Reading your Flow Meter... - Page 4 SAFETY INFORMATION Please read this manual completely before unpacking, installing, and operating this equipment. In particular, pay attention to all dangers, warnings, and precau- tions, otherwise, it may cause serious injury to the operator or damage to the equipment. Note: When in doubt regarding your electrical installation, contact a licensed electrician.
-
Page 5: Introduction
F-300M 1.0 Introduction Congratulations on purchasing the F-300M Flow Meter! Your Flow Meter is calibrated and ready for use. The unit is designed to give many years of service. For more information or questions on this product or any of our Aquatics/Industrial products, please visit us at www.blue-white.com... -
Page 6: Engineering Specifications
150 to 700 150 to 600 F-30090M 90 mm 200 to 850 200 to 800 F-30110M 110 mm 600 to 1800 550 to 1600 2.3 Dimensions F-300M Series Pipe A (mm) B (mm) Size 32mm 50mm FLOW 63mm 75mm 90mm 110mm... -
Page 7: Installation
3.1 Installation Requirements Before beginning installation, review your system flow and pressure to ensure your F-300M is proper for your system parameters. Pipe Requirements: To prevent debris from entering the meter, install the flow meter down- stream from the filter if possible. Pipe should be clean and free of debris on outside. Pipe should be uniform, not warped, and free of stress. -
Page 8: Installation Instructions
F-300M 3.3 Installation Instructions 1. Turn off pump and ensure there is no pressure in pipe before installation. 2. Ensure Straight Length of Pipe requirements are met when choosing an installation location. 3. Choose a location where the meter is easy to read. -
Page 9: Typical Installation With Flow Switch
F-300M 3.5 Typical Installation with Flow Switch 4.0 Reading your F-300 Flow Meter Avoid imposing a sudden burst of flow to the meter. Solenoid valves may cause the float to impact the top float stop with destructive force. Always read float at top. -
Page 10: Maintenance And Troubleshooting
• Reinstall the flow meter and test. If the float was removed during the cleaning process, ensure the float was reinstalled properly. The float is wider at the top. 6.0 Spare Parts F-300M Replacement Parts Qty. Item Model No. Product Name Req. -
Page 11: Warranty
Blue-White is pleased to assist in this effort but does not guarantee the suitability of any particular product for any specific application as Blue-White does not have the same degree of familiarity with the application that the customer/end user has. - Page 12 P.N. 80000-529 F-300M Metric Flow Meter REV 4 20240506 5300 Business Drive, Huntington Beach, CA 92649 TEL 714-893-8529 | FAX 714-894-9492 | www.blue-white.com | sales@blue-white.com...
