3. Vehicle Connection Key Programming

3.1. Vehicle Connection Test

3.1.1. Wire Connection
a. Turn on AutoProPad Basic tablet.

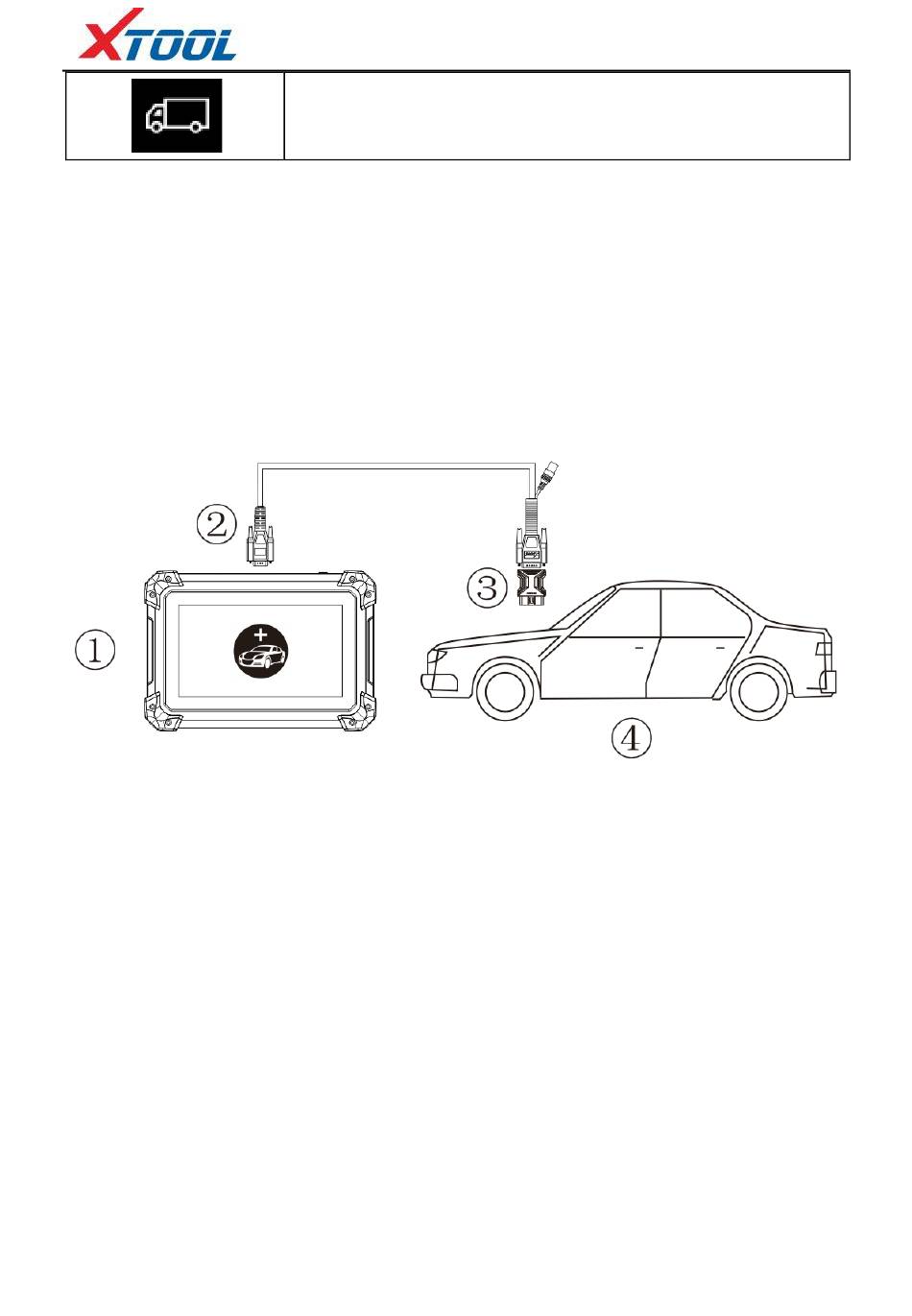

a. Connect cables and vehicle in following order: ①→②→③→④
b. Switch on the ignition and tap on AutoProPad Basic application to test vehicles.
(shown as follows)
① AutoProPAD Basic Mainframe
② Main Test Cable
③ OBDII Connector
④ Vehicle

3.2. Precautions before Use

3.2.1. The vehicle power supply must meet the normal voltage limits DC 9-15V.
3.2.2. Users should check the position of the DLC port and ensure the OBDII 16pin connector
as well as the DLC port are properly connected before attempting to communicate to
vehicle.
3.2.3. When taking some special functions tests, users are required to operate the device
per operating instructions. For each vehicle, it has to meet some specific requirements,
AutoProPAD Basic Key Programmer
Click here to return to diagnostic vehicle models interface
