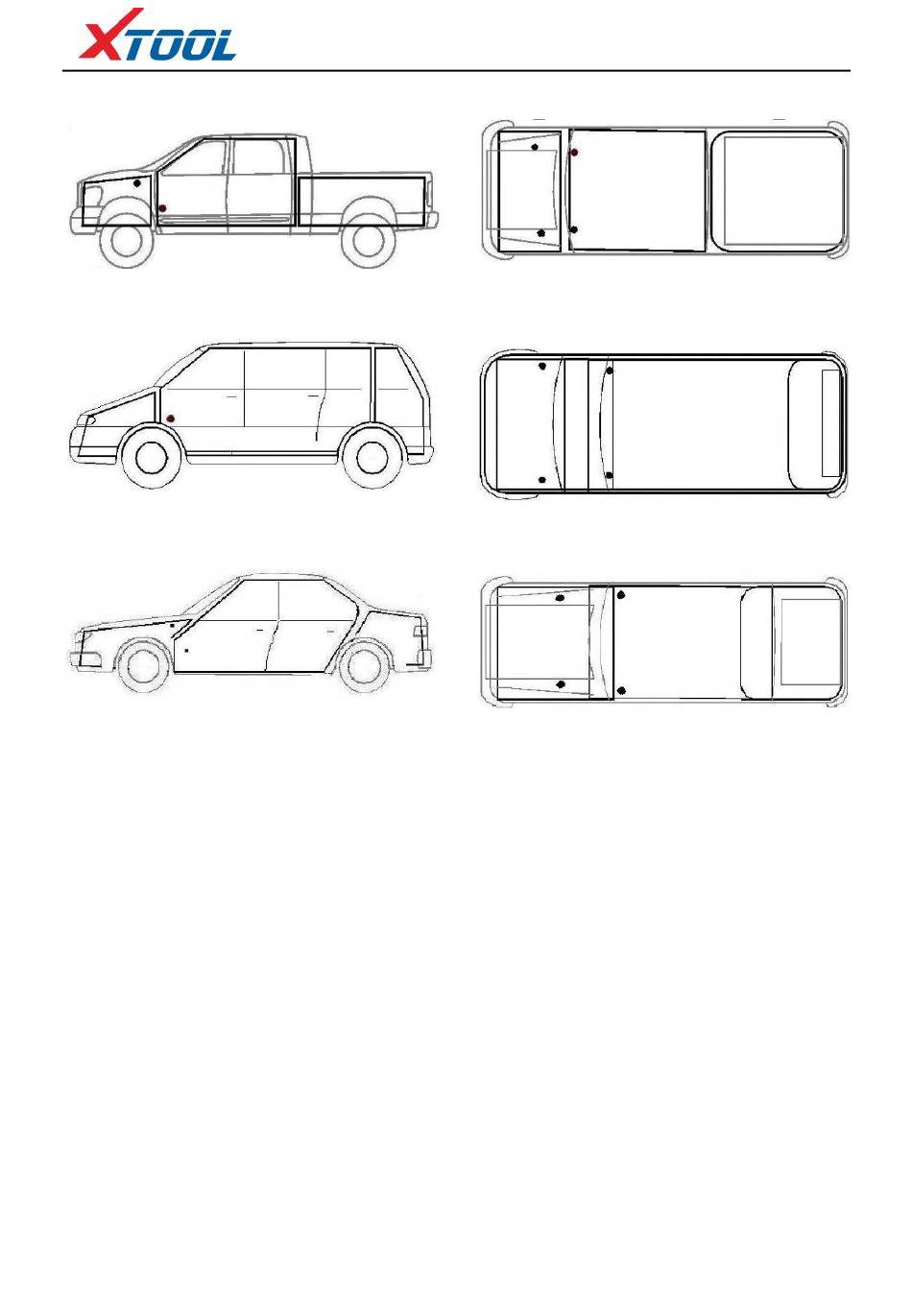

Location diagram of pick-up truck OBDII connectors:
Location diagram of utility vehicles OBDII connectors:
Link diagram of passenger car OBDII connectors:
NOTE: Each vehicle manufacturer may use additional pins to diagnose a variety of systems.
Not every manufacturer uses the same standard. The function on a certain pin will
vary from manufacturer to manufacturer. Verify with the manufacturer.
3. Diagnostic Link Connectors Terminal Definition and Communication
Protocols
3.1. Standard OBDII Diagnostic Link Connector
AutoProPAD Basic Key Programmer
35
