OWNER'S MANUAL

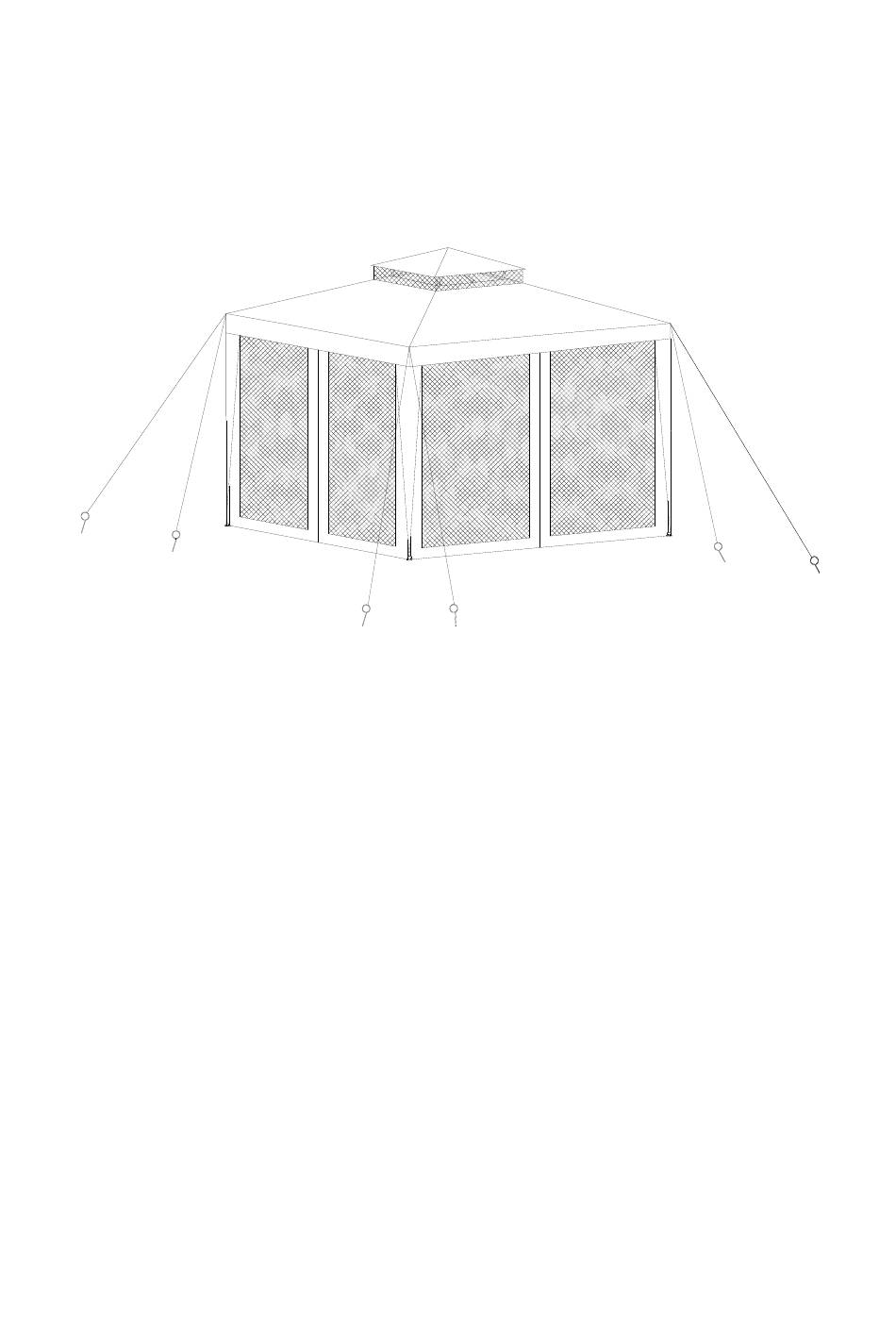

10x10 SUN SHELTER WITH NETTING
L-GZ512PST-B
088-1636-4
IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use & care
directions before attempting to assemble. Please take down the gazebo during strong
wind. The manufacturer or retailer is not liable for any loss of the product or other items
due to the failure to take down the gazebo during strong wind.
WARNINGS:
1. Assembly Instructions must be followed.
2. Pegs supplied must be used to hold this gazebo in place when upright.
3. Do not use candles, matches or open flames of any kind in or near a tent.
4. Do not cook inside the tent.
5. Build campfires downwind and several meters away from a tent and be sure to fully
extinguish campfires before leaving a campsite or before retiring for the night.
6. Exercise extreme caution when using fuel-powered lanterns or heaters inside a tent and use
battery-operated lanterns whenever possible.
7. Do not refuel lamps, heaters or stoves inside a tent.
8. Extinguish or turn off all lanterns before going to sleep.
9. Do not smoke in a tent.
10. Do not store flammable liquids inside a tent.
11. KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent is
made of flame-resistant fabric. It is not fireproof. The fabric will burn if left in continuous contact

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-GZ512PST-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GZ512PST-B

  • Page 1 OWNER’S MANUAL 10x10 SUN SHELTER WITH NETTING L-GZ512PST-B 088-1636-4 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. Please take down the gazebo during strong wind. The manufacturer or retailer is not liable for any loss of the product or other items due to the failure to take down the gazebo during strong wind.
  • Page 2: Parts List

    with a flame source. Parts List Upper pole Lower pole Long support pole Short support pole Lower bar Upper bar Base Corner connector Top connector Small canopy Big canopy Mosquito netting ¢4 x180 stake 8PCS Rope 8PCS Rope peg 8PCS Plastic ring...
  • Page 3 Tools required: ladder, hammer, screwdriver (not included) Fig.1: Insert both ends of short support pole ( 4 ) into long support pole ( 3 ), then insert the other end of long support pole ( 3 ) into 90 degree angle tube of corner connector ( B ), make sure the sloping pipe upward.
  • Page 4 Fig.4: Insert one end of upper pole (1) with spring into corner connector (B). Fig.5: Insert the end of lower pole ( 2 ) with shrink tube into upper pole (1), insert the other end of lower pole (2) into base (A), then use stake (AA) through base (A) to fix the gazebo.
  • Page 5 Fig.6: Hook the metal buckle at the lower end of big canopy (E) to the hole of lower pole (2), then attach plastic buckle to the hook of base (A) as shown in Fig. 6. Fig.7: Expand big canopy ( E ), tie rope ( BB ) to the four corners of the gazebo, reinforce it using rope peg ( CC ), finally attach plastic ring (DD) to mosquito netting (F) , hang to long support pole ( 3 ) or short support pole ( 4 ) as shown in Fig.
  • Page 6 USE & CARE: 1. This gazebo is not a permanent structure and should be disassembled & stored away after use. 2. Do not repack your gazebo until completely dry. 3. In order to reduce the risk of personal injury and damage to equipment, basic safety precautions should always be followed when assembling and using this product.
  • Page 7 GUIDE DE L'UTILISATEUR ABRIS DE SOLEIL AVEC MOUSTIQUAIRE 10x10 L-GZ512PST-B 088-1636-4 IMPORTANT : Veuillez lire et suivre toutes les indications et avertissements de sécurité, les instructions de montage, les indications d'utilisation et d'entretien avant l'assemblage. Veuillez démonter le belvédère en cas de vent violent. Le fabricant ou le vendeur ne sont pas responsables de toute perte de produit ou d'autres éléments si vous n'avez pas démonté...
  • Page 8: Liste Des Pièces

    10. Ne stockez pas de liquides inflammables dans une tente. 11. ÉLOIGNEZ TOUTE FLAMME ET SOURCE DE CHALEUR DU TISSU DE LA TENTE. Cette tente est constituée d'un matériau résistant aux flammes. Mais elle n'est pas à l'épreuve du feu. Le tissu brûlera s'il est en contact prolongé avec une flamme. Liste des Pièces Poteau supérieur Poteau inférieur...
  • Page 9 Outils requis : échelle, marteau, tournevis (non fournis) Fig.1 : Insérez les deux bouts du poteau court de support ( 4 ) dans le poteau long de support ( 3 ), puis insérez l'autre bout du poteau long de support ( 3 ) à un angle de 90° dans le connecteur de coin ( B ), assurez-vous que le tuyau soit incliné...
  • Page 10 Fig.4 : Insérez un bout du poteau supérieur (1) avec un ressort dans le connecteur de coin (B). Fig.5 : Insérez le bout du poteau inférieur ( 2 ) avec le tube aminci dans le poteau supérieur (1), insérez l'autre bout du poteau inférieur (2) dans la base (A), puis utilisez le piquet (AA) à travers la base (A) pour fixer le belvédère.
  • Page 11 Fig.6 : Crochetez la boucle en métal à la partie inférieure du grand auvent (E) et au trou du poteau inférieur (2), puis attachez la boucle en plastique au crochet de la base (A) comme vous pouvez le voir sur la Fig. 6. Fig.7 : Étendez le grand auvent ( E ), attachez la corde ( BB ) aux quatre coins du belvédère, renforcez le tout avec les sardines ( CC ), et enfin, attachez le cercle en plastique (DD) à...
  • Page 12: Utilisation Et Entretien

    UTILISATION ET ENTRETIEN : 1. Ce belvédère n'est pas une structure permanente et devrait être démonté et rangé après utilisation. 2. Ne rangez pas votre belvédère, à moins qu'il soit complètement sec. 3. Afin de réduire les risques de blessures corporelles et de dégâts aux équipements, vous devriez toujours suivre des mesures de précautions de base lors de l'assemblage et de l'utilisation de ce produit.
