Sunjoy L-GZ519PST-C Assembly Manual
  1. Manuals
  2. Brands
  3. Sunjoy Manuals
  4. Outdoor Furnishing
  5. L-GZ519PST-C
  6. Assembly manual
Sunjoy L-GZ519PST-C Assembly Manual

Sunjoy L-GZ519PST-C Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly manual
Item# L-GZ519PST-C

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-GZ519PST-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy L-GZ519PST-C

Summary of Contents for Sunjoy L-GZ519PST-C

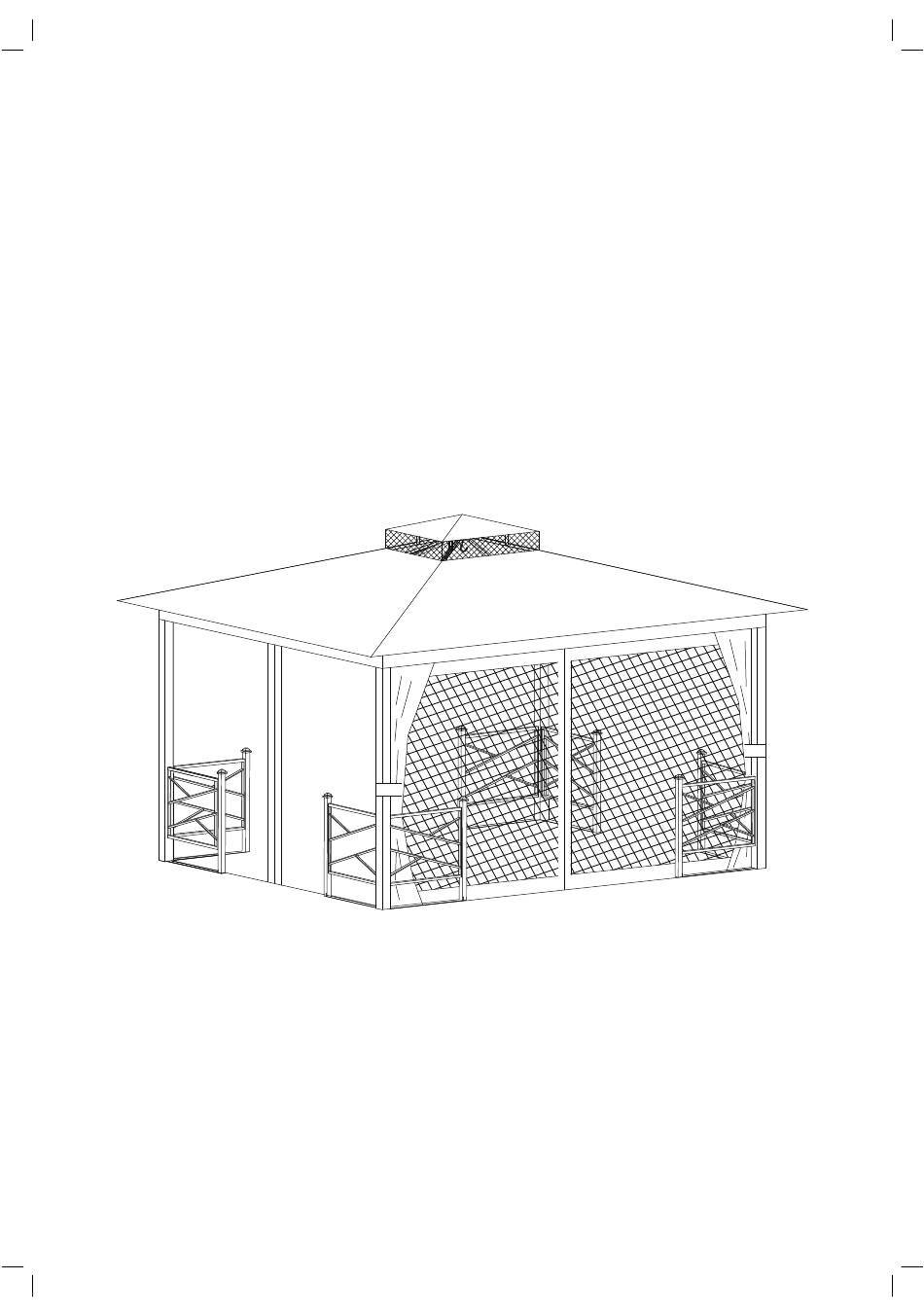

  • Page 1 Assembly manual Item# L-GZ519PST-C...

  • Page 2: Table Of Contents

    Table of contents Important safety instructions ..............................2 Packaging content ..................................3 Assembly preparation ................................4 Assembly instructions ................................4 Cleaning and maintenance ..............................11 Technical data....................................12 Warranty ......................................12 Important ......................................12 Important safety instructions Warning! • To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo.

  • Page 3: Packaging Content

    Packaging content Name Part # Qty Illustration Name Part # Illustration Pole Screw M6x15 Stake Flat Connector Washer Fence Screw M6x15 Fence Screw Pole M6x35 Long Bar 1 Screw M6x40 Long Bar 2 Small Short Bar 1 Plastic Ring Large Short Bar 2 Plastic Ring Long...

  • Page 4: Assembly Preparation

    Assembly preparation Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials and place them back in the box. Do not dispose of the packing materials until assembly is complete. Read each step carefully before beginning assembly and make sure you understand each step.
  • Page 5 Assembly instructions (A) x 4 (B) x 8 (C) x 8 (AA) x 16 (BB) x 48 (JJ) x 32 Connect the Fences (C) and the Stake Connectors (B) to the four Poles (A) on one side and to the Fence Poles M6x25 Screws (JJ) and four M6 Flat Washers (BB) on the upper portion of the Fence, and two M6x15 Screws (AA) and two M6 Flat Washers (BB) on the lower portion.
  • Page 6 Assembly instructions (G) x 4 (H) x 4 (AA) x 16 (BB) x 16 F1/E1 Attach the Short Netting Tubes (H) to Short Bars 1 and 2 and F1), and fasten with two M6x15 Screws (AA) and two M6 Flat Washers (BB). Follow the same procedure to attach the Long Netting Tubes (G) to Long Bars 1 and and E1).
  • Page 7 Assembly instructions (K) x 4 (K1) x 4 (BB) x 4 (CC) x 4 Insert the Short Top Bars (K1) into the Long Top Bars (K), and fasten with one M6x15 Screw (CC) and one M6 Flat Washer (BB) for each one of the top bar connections. (I1) x 2 (I2) x 2 (L) x 1...
  • Page 8 Assembly instructions (BB) x 8 (EE) x 4 (FF) x 4 Insert the Short Top Bars (K1) into the U-shaped plates located in the upper part of the Poles (A), securing each of the Short Top Bars (K1) with one M6x40 Screw (EE), one M6 Nut (FF) and two M6 Flat Washers (BB).
  • Page 9 Assembly instructions (M) x 1 (N) x 4 Insert the Small Top Bars (N) into the Small Top Connector (M). (Q) x 1 (BB) x 4 (EE) x 4 (FF) x 4 Fasten the Small Top Bars (N) to the Long Top Bars (K), with one M6x40 Screw (EE), one M6 Nut (FF) and one M6 Flat Washer (BB) for each corner.
  • Page 10 Assembly instructions F1/E1/F/E (S) x 1 (T) x 1 (GG) x 52 (HH) x Attach the Small Plastic Rings (GG) to the Netting Tubes and H), and use the Rings (GG) to hang the Net (S). Then attach the Large Plastic Rings (HH) to the Short and Long Bars (F, F1, E, and E1), using the Rings (HH) to hang the Gazebo Wall (T).

  • Page 11: Cleaning And Maintenance

    Assembly instructions Now your gazebo is ready for use. Enjoy! Cleaning and maintenance • Disassemble the gazebo in the reverse order of the assembly steps. Always disassemble the gazebo completely. A partially disassembled gazebo is not stable enough to resist wind and bad weather, and therefore can be damaged and/or cause damage.

  • Page 12: Technical Data

    Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
