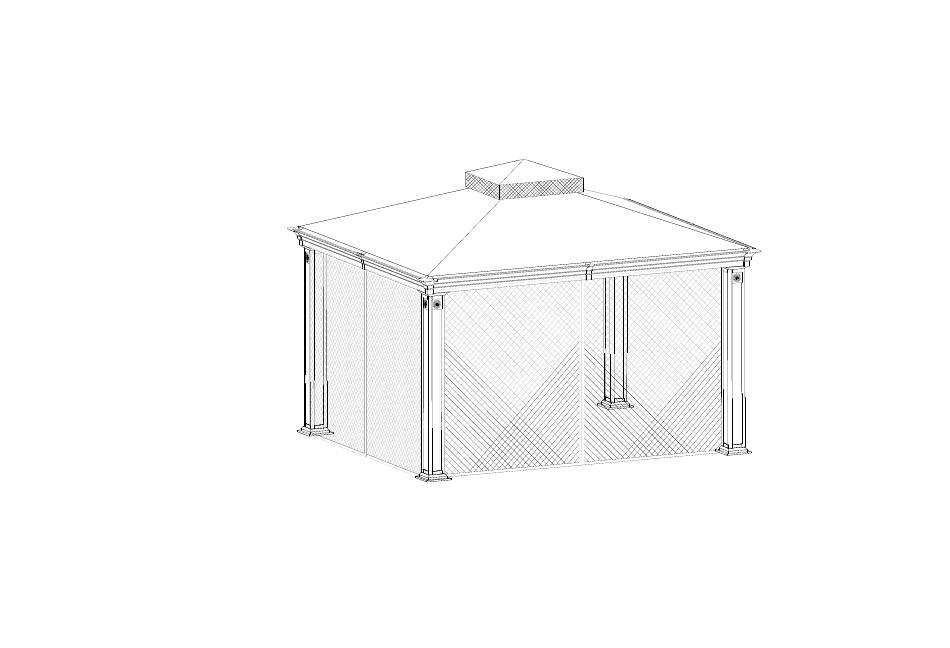

- Page 1 Thrshd Tivering Gazebo 10x12'' Style# L-GZ025PCO-7A Tc# 14232049 >>assembly instructions...
-
Page 2: Tools Needed
Warning 1. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. 2. Some parts may contain sharp edges, wear protective gloves if necessary. At least four or more people are recommended for safe assembly. 3. -
Page 3: Hardware Pack
Hardware pack 1 (AA) x 16 1/4"-20*0.6 (BB) x 52 Φ1/4" (CC) x 28 1/4"-20*0.75 （Z）x1 1/4"-20 (EE) x 8 1/4"-20*0.6 Bolt Flat washer Bolt Wrench Bolt Hardware pack2 Hardware pack 3 (BB) x56 Φ1/4" (CC) x 48 1/4"-20*0.75 (DD) x 16 Φ5/16"*7 (AA) x 8 1/4"-20*0.6 Flat washer Bolt... -
Page 4: Part List
>>assembly instructions Part List Long screen 1 Long screen 2 Short screen 1 Short screen 2 Connection of Middle Girder Connection of Tilt Girder 1 Connection of Tilt Girder 2 Long Slide way Short Slide way Top Tilt Girder Long Girder Short Girder Long Tube for Top Frame Short Tube for Top Frame... - Page 5 >>assembly instructions Fig.2: Fig.1： Insert Long screen (A2) into Long screen (A1) Attach Connection of Tilt Girder (D) & (E) to assembled screens in Fig 1 Insert Short screen (B2) into Short screen (B1), tighten with Bolt (CC) and Flat washer (BB). tighten with bolt (CC) and (EE), Flat washer (BB).
- Page 6 >>assembly instructions Fig.6: Insert Long Tube for Top Frame (I1) & Short Tube for Top Fig6-1: Frame (I2) into Conner block for big top 1 (J1)& Conner block for Insert Top Tilt Girder (H1) into Conner block for big top 1 (J1) & Conner block big top 2 (J2) for big top 2 (J2) Fig.7:...
- Page 7 >>assembly instructions Fig.9: Insert Long Girder (H2) Short Girder (H3) into Connection of Middle Girder (C). Then place large canopy (R) onto the big top, but do not spread it. Fig.10: Fig.11: Attach the hook (L) onto the connection for small top (M). Attach Small top Girder (K) onto Corner block for big roof 1 / Insert the Small top Girder (K) into the connection for small top (M), Corner block for big roof 2 (J1) / (J2), spread the large canopy (R)
- Page 8 >>assembly instructions Fig.13: Fig.12: Attach cover (P) onto Post (N), tighten with Bolt (CC) and Flat washer Attach Post base (O) to Post (N),tighten with Bolt (AA), (BB). Flat washer (BB).
- Page 9 >>assembly instructions Fig.15: Hang the Mosquito Netting (T) onto the Slide Ways (F)&(G) Fig.14:Attach the posts to the assembled top, tighten with Bolt (CC) by using Plastic ring (GG), then cover with plastic plug (HH). and Flat washer (BB). Fig.17: Secure the assembled gazebo on the ground by using pegs (DD). Fig.16:Attach (Q) onto the Post cover (P),tighten with Baffle...
-
Page 10: Care And Maintenance
Care & Maintenance Our iron / steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of iron / steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is a natural process and is not a defect! To minimize this condition, we recommend care to be taken when assembling &...
