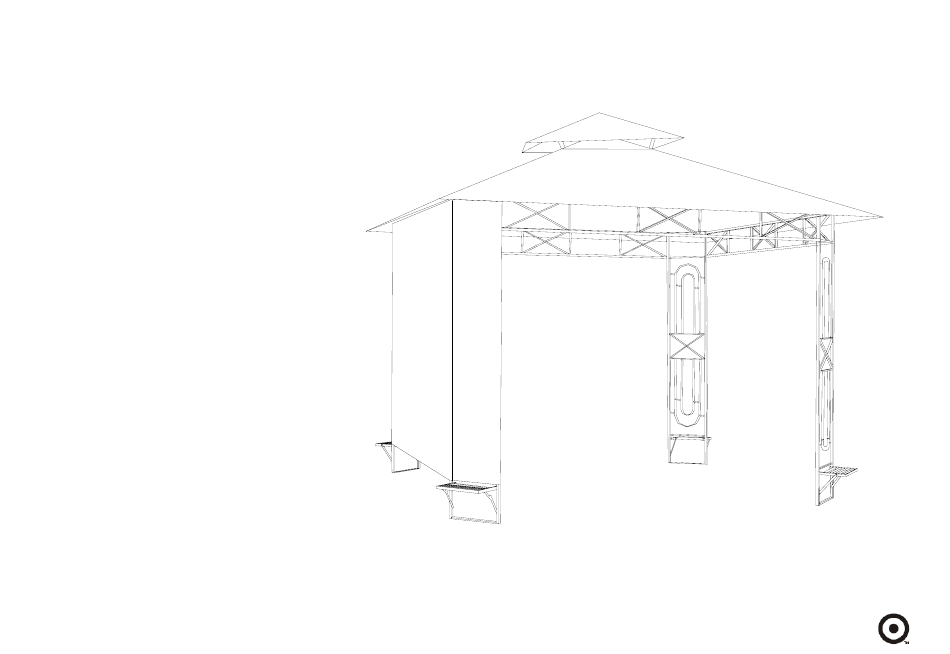

- Page 1 10’X10’ GARDEN SCAPE GAZEBO Style# L-GZ071PST-3 DPCI：009-05-0544 >>assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way transforming your room in on time. -
Page 3: Tools Needed
Tools needed... - Page 4 Table of contents Introduction Hardware Parts list Assembly 7-10 QUESTION? Just call 1-866-578-6965 parts and service . For faster service, have the style number and DPCI number ready when calling. >>assembly instructions...
- Page 5 Hardware Pack (H1) x 16 (H2) x 8 (H3) x 32 M6×20mm M6×32mm M6 flat washer （H6）x1 (H4) x 8 (H5) x 8 M6 Nut Plastic cap M6 Wrench Spare Hardware Pack (H1) x 2 (H2) x 2 (H3) x 4 M6×20m M6×32mm M6 washer...
-
Page 6: Parts List
Parts List ITEM DESCRIPTION QUANTITY Panel Beam Top Center fitting Corner Supporting Bar-Short Corner Supporting Bar-Long Medium Supporting Bar Privacy panel stake Larger Canopy Top Canopy... - Page 7 Step 1: Turn over the shelf before assembling as the shelf only Connect Panel(A) & beam (B) with can spread by one direction.(As Screw(H1) & wrench(H6). shown in Fig.2) Fig.1). Do not tighten fully. (H1) x 16 (H3) x 16 (H6) x 1 M6×20mm screw M6 washer...
- Page 8 Step 2: Connect corner supporting bar-short(D) with corner supporting bar-long(E). (As shown in Fig.3) Connect Corner Supporting Bar –Long (E) and Medium Supporting Bar (F) with and Top Center fitting （C）.(As shown in Fig.4) Attach panel(A) corner supporting bar-short（D） by using H2,H3,H4.(As shown in Fig.5 ) (H2) x 8 (H3) x 16...
- Page 9 Step 3 Attach larger canopy (J) to frame, do not spread, then attach top canopy, then outspread the larger canopy. Fix the finished gazebo with stake (H) by hammer .(As shown in Fig.7) Please use Shade cloth as needed.
- Page 10 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts Please do not return this product to the store, call Sunjoy Industries at 1(866) 578-6569 from 8:30 AM to 5:30 EST Monday to Friday or fax the replacement part...
