SMART Sympodium DT770 Quick Reference

Quick Reference
Sympodium DT770 Interactive Pen Display
®
Use the Sympodium DT770 interactive pen display, along with the many powerful features of SMART Board™
software, to control and write over computer applications.

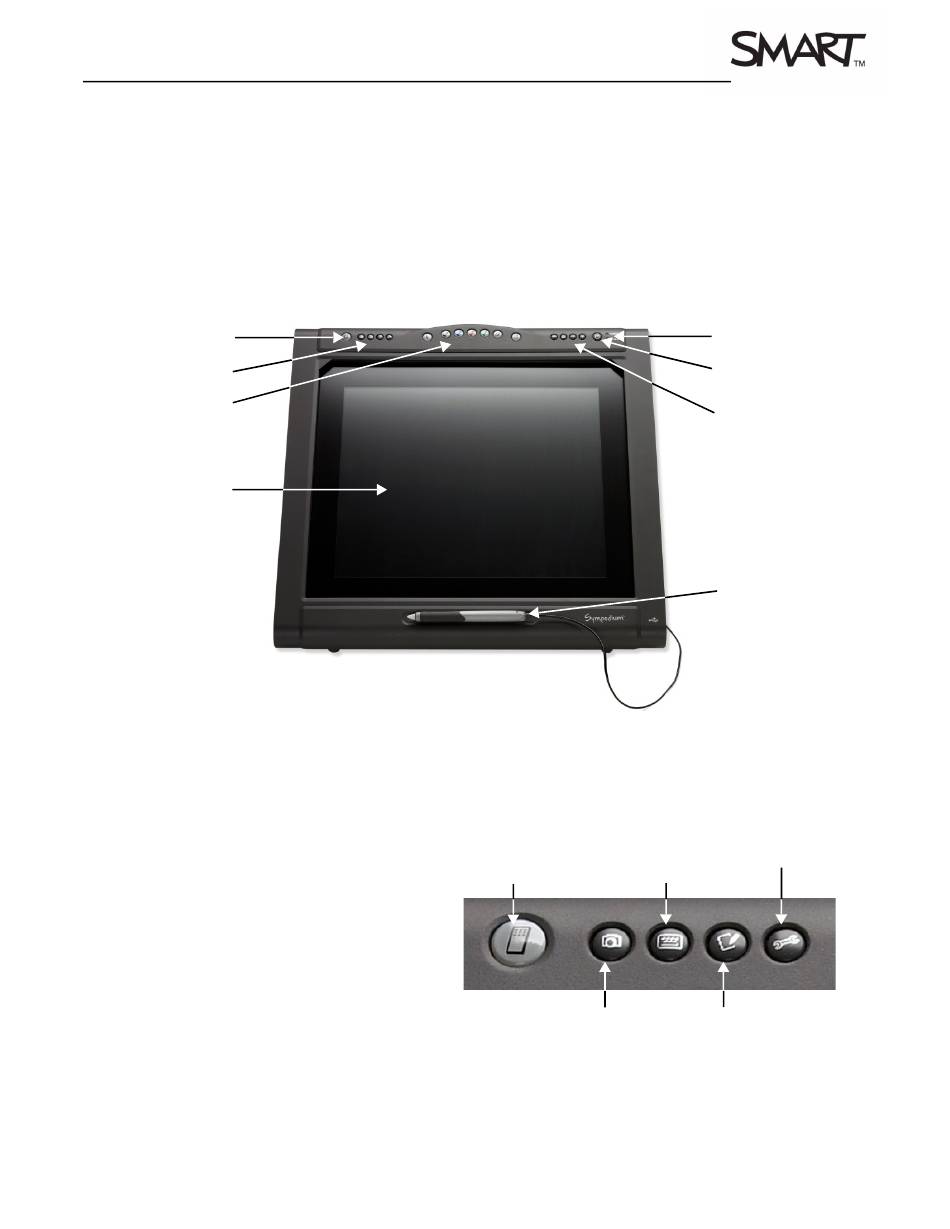

The interactive pen display
The interactive pen display has three sets of buttons and indicators. A row of display control buttons fine-tune display
properties. There is also a group of pen-tool buttons and a set of function buttons, which include the room-control
interface button. The tethered magnetic pen enables you to write or draw in digital ink over any application. On the
Sympodium DT770, you can use your finger as a mouse, or to draw over your applications.
Room-control
interface button
Function buttons
Pen-tool buttons
Interactive
display
Checking the status of the interactive pen display
The power indicator glows green when the unit is receiving power and a video signal. If it glows orange, ensure
that your computer is turned on, and that the cable is correctly connected to the interactive pen display and the
computer.
The status indicator glows green when the DT770
is communicating with your computer properly. If it
glows orange, make sure that the USB cable is
connected to the interactive pen display and the
computer, and ensure that SMART Board software
is running on the computer.
Function buttons
The function buttons provide quick access to a
number of frequently used tools. Press a function
button to launch the On-Screen Keyboard, the
Floating Tools toolbar or the Capture toolbar.
Open Notebook™ software to help you organize, save and share notes. The room-control interface button allows
you to operate connected room control devices.
Launches
Launches
On-Screen
room-control
Keyboard
Launches
Capture
toolbar
Status and power
indicators
Power button
Display control
buttons
Battery-free
magnetic pen
Launches
Floating Tools
Launches
Notebook
software
