Diagnostics; Status; Purge; Test Dispense - Triton 9100 User Manual

D
IAGNOSTICS
A I :
CCESS NSTRUCTIONS
1. From the M M
AIN
D :
ESCRIPTION

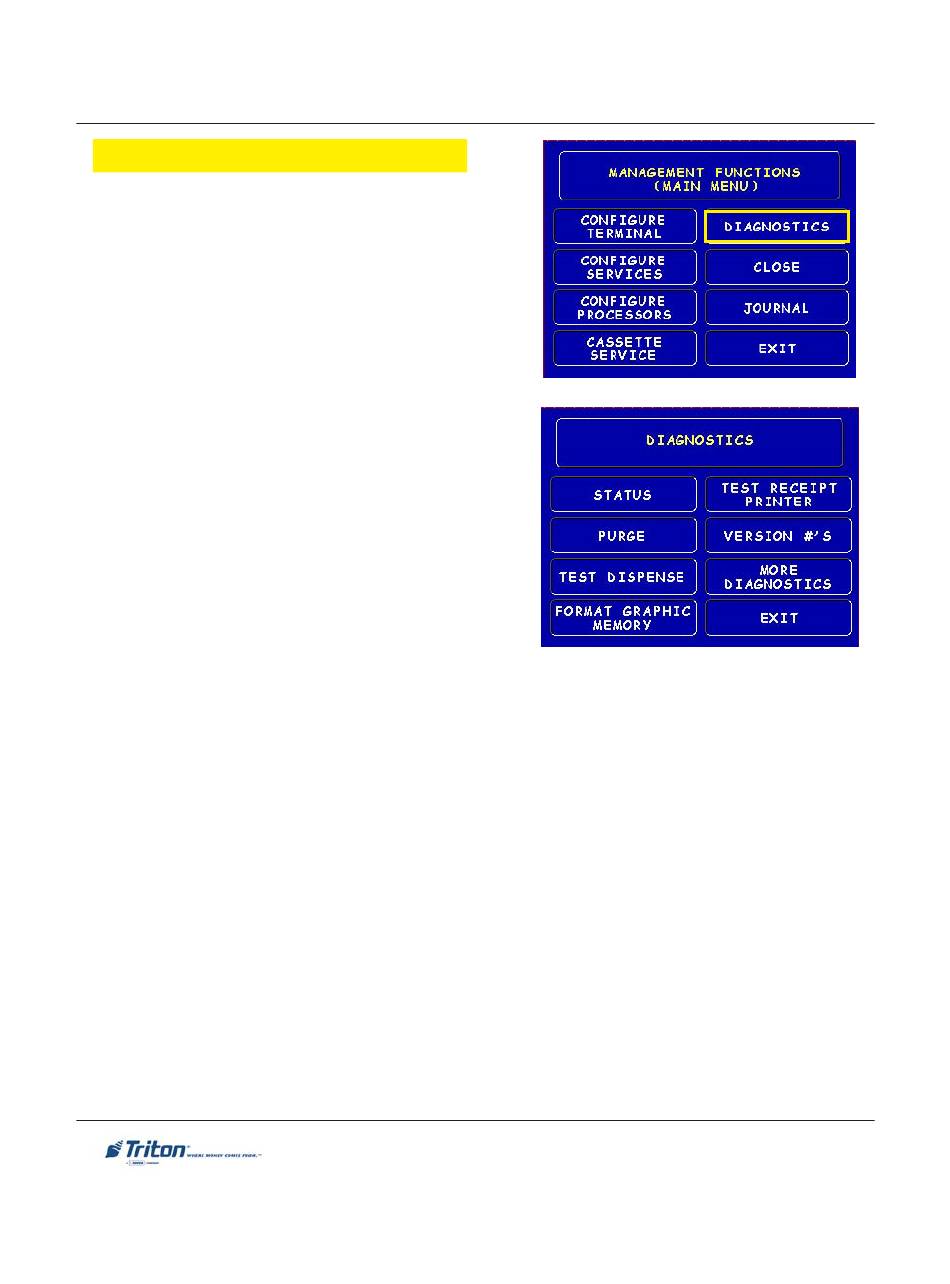

The following options will be available from the D
screen:
TICS
1. Status. This function presents the status checks on
the primary functional areas of the dispensing
mechanism.
2. Purge. This function instructs the dispenser to re-
move all documents from the feed path. The return
code for a successful purge in a single cassette dis-
penser is ë20 20 20í. The return code for a multi-cas-
sette dispenser is ë0í.
3. Test Dispense. This function instructs the dispens-
ing mechanism to dispense one (1) note from the
cassette into the reject cassette/compartment.
(TDM installed) A return code in a single cassette
dispenser of ë20 1 0 0 0í indicates a successful test
dispense (20) and (1) note picked from cassette A.
(SDD/Minimech) A return code in a single cassette
dispenser of ë20 20 21í indicates a successful test
dispense (20) and (1) note picked from the cassette.
4. Format Graphic Memory. This function erases the memory used to store AD graphics. AD graph-
ics can then be downloaded from a local terminal or through Triton Connect.
5. Test Receipt Printer. This function tests the operation of the receipt printer and prints out con-
figuration parameters, processor setup, etc, that may be used to verify terminal setup.
6. Version #ís. This function displays the version numbers of the terminal operating software.
7. More Diagnostics. Accesses additional diagnostic functions.
