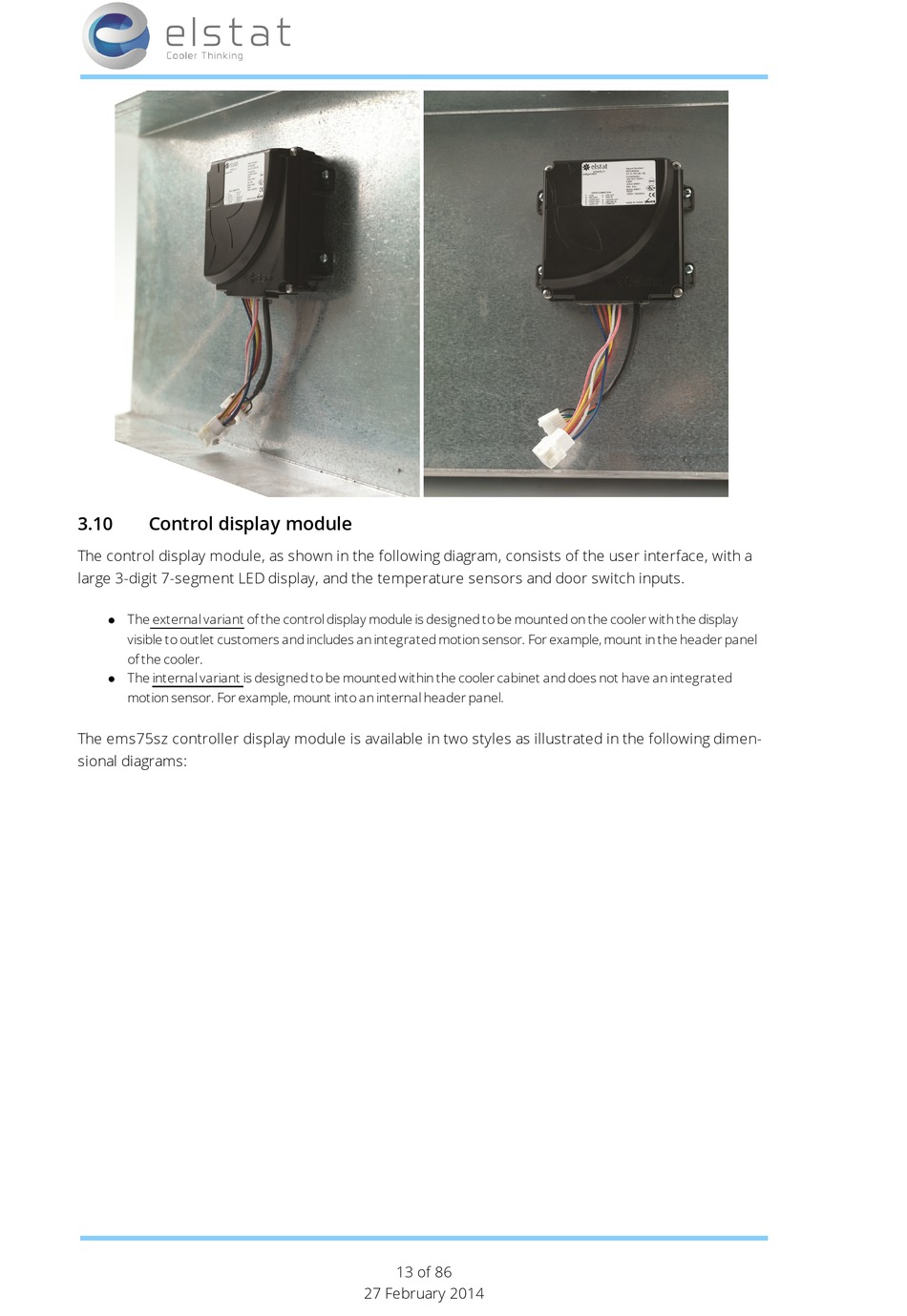

3.10

Control display module

The control display module, as shown in the following diagram, consists of the user interface, with a
large 3-digit 7-segment LED display, and the temperature sensors and door switch inputs.
The external variant of the control display module is designed to be mounted on the cooler with the display
l
visible to outlet customers and includes an integrated motion sensor. For example, mount in the header panel
of the cooler.
The internal variant is designed to be mounted within the cooler cabinet and does not have an integrated
l
motion sensor. For example, mount into an internal header panel.
The ems75sz controller display module is available in two styles as illustrated in the following dimen-
sional diagrams:
