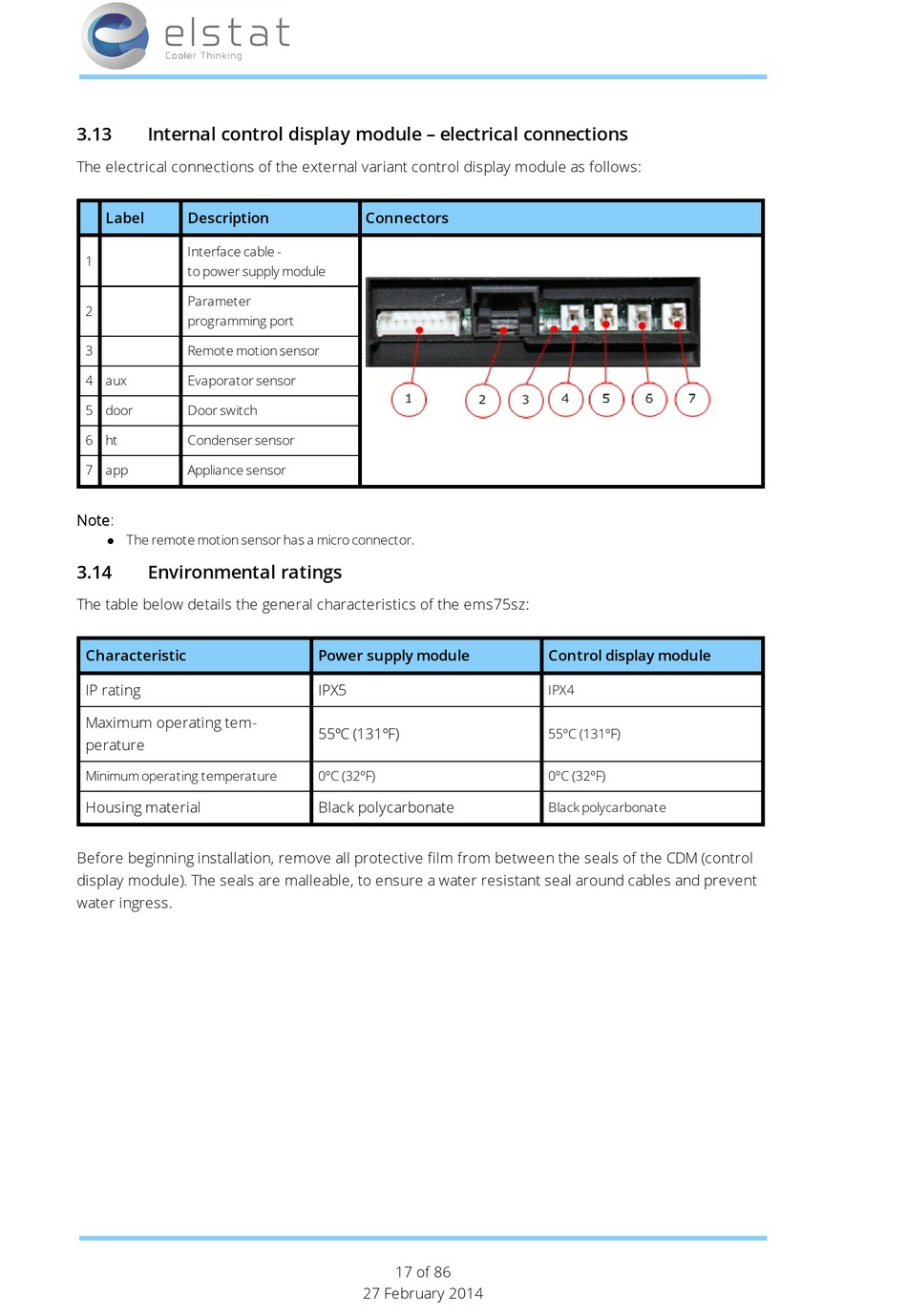

3.13
Internal control display module – electrical connections
The electrical connections of the external variant control display module as follows:
Label
Description
Interface cable -
1
to power supply module
Parameter
2
programming port
3
Remote motion sensor
4 aux
Evaporator sensor
5 door
Door switch
6 ht
Condenser sensor
7 app
Appliance sensor
Note:
The remote motion sensor has a micro connector.
l
3.14

Environmental ratings

The table below details the general characteristics of the ems75sz:
Characteristic
IP rating
Maximum operating tem-
perature
Minimum operating temperature
Housing material
Before beginning installation, remove all protective film from between the seals of the CDM (control
display module). The seals are malleable, to ensure a water resistant seal around cables and prevent
water ingress.
Connectors
Power supply module
IPX5
55ºC (131ºF)
0ºC (32ºF)
Black polycarbonate
17 of 86
27 February 2014
Control display module
IPX4
55ºC (131ºF)
0ºC (32ºF)
Black polycarbonate
