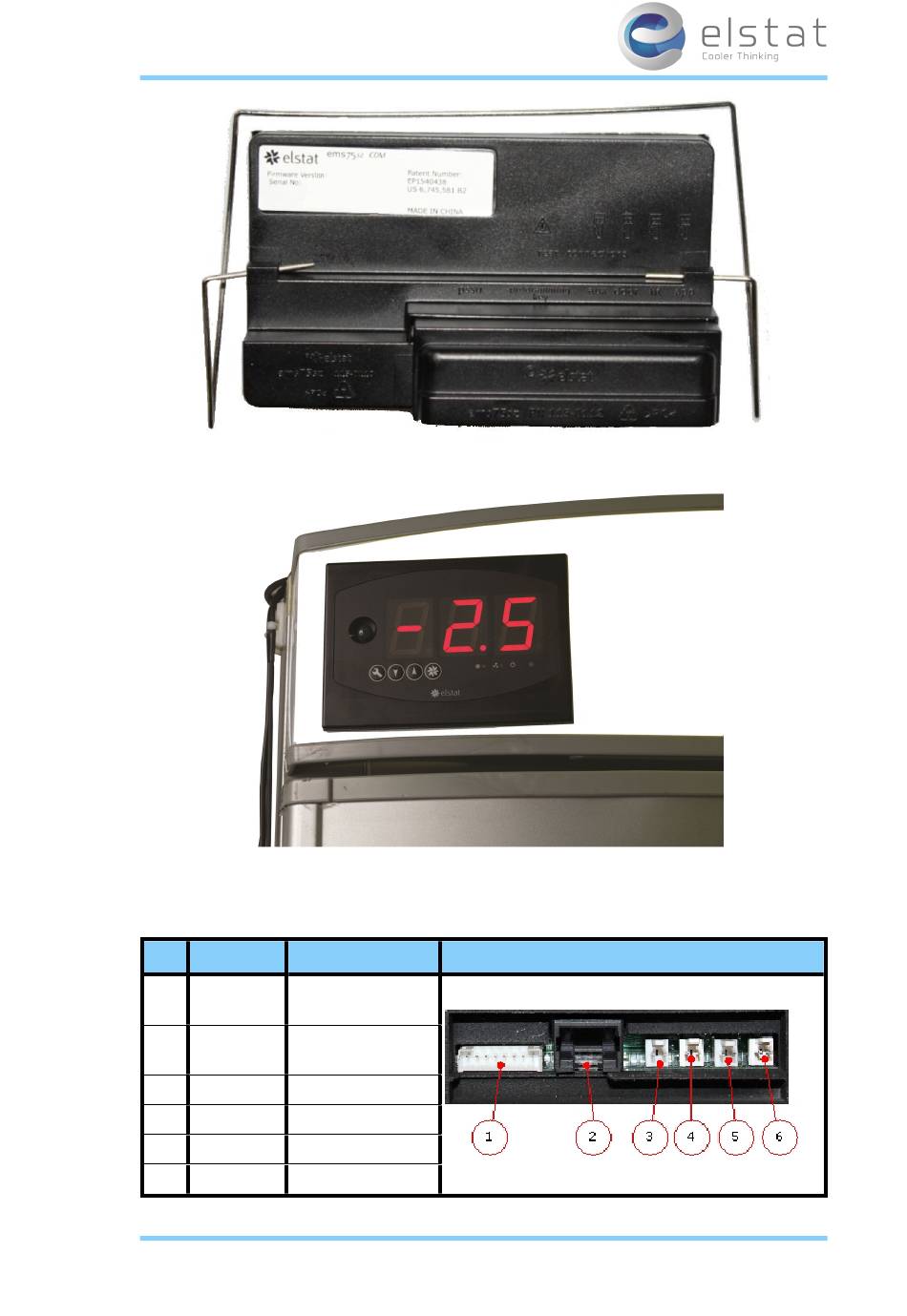

The image below shows the control display module fitted correctly into a header panel as seen from
the front of the cooler.
3.12
External control display module – electrical connections
The electrical connections of the external variant control display module as follows:
Label
Description
Interface cable -
1
to power supply module
Parameter
2
programming port
3
aux
Evaporator sensor
4
door
Door switch
5
ht
Condenser sensor
6
app
Appliance sensor
Connectors
16 of 86
27 February 2014
